Tool Changers: QC-1510


Skip Navigation LinksHome > Products > Robotic Tool Changers > Tool Changer Models > QC-1510





Product Advantages
  • Modular Construction: High power, coolant, servo, control and signal modules, and discrete signal capabilities are built into separate modules making maintenance easy - increasing commonality and flexibility for the customer.
  • Extremely High Payload and Moment Capacity: The QC-1510 uses three QC-510 locking mechanisms to achieve strength and proven reliability.
  • Internally Routed Cabling: Supports integrated valve and DeviceNet options - making it easy to add and remove the valve.
  • Stack Height when Locked: 5.756 in. (146.2 mm) (Does not include required interface plate).
  • Integrated lock and unlock sensing available.

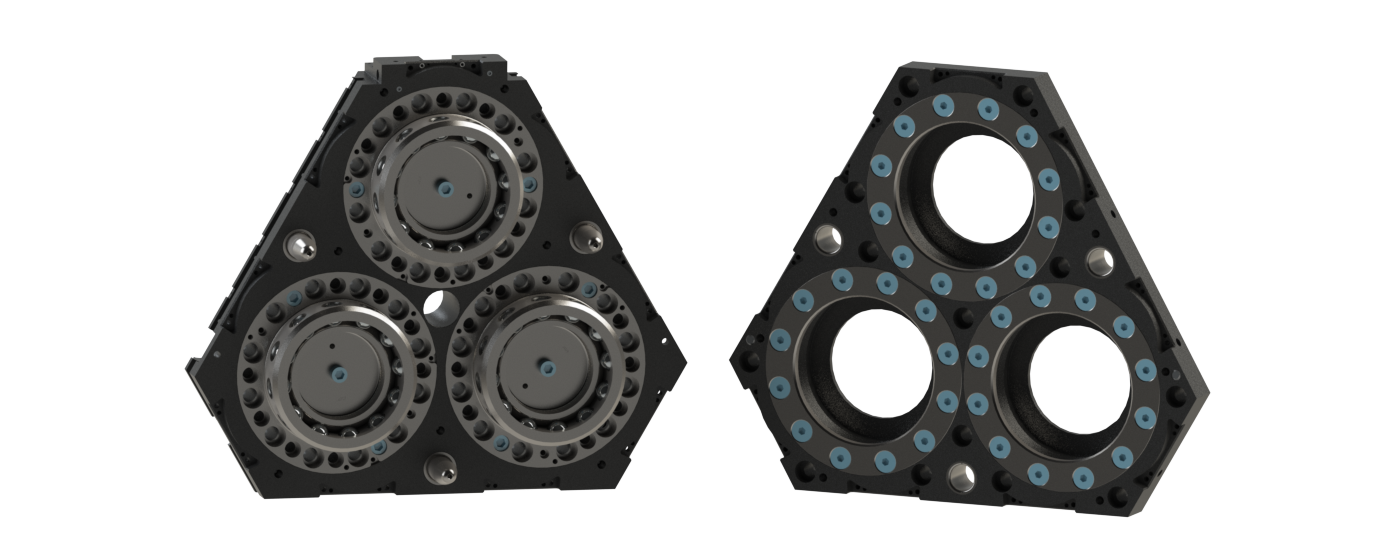

QC-1510 Tool Changer (Master and Tool)
QC-1510 Tool Changer (Master and Tool)

SpecificationsDrawingsManualsCompatible Modules3D CAD Models
Units:
Suggested Payload Limit: 9000 lb
Locking Force @ 80 psi (5.5 bar): 42000 lb
Static Moment Capacity (X & Y): 144000 lbf-in
Static Moment Capacity (Z): 123000 lbf-in
Weight - when coupled: 200 lb
Master Weight: 139 lb
Tool Weight: 61 lb
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): 0.065 in
