Fluid/Air Module: FC2

Home > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FC2

Product Description

Provides fluid/air service to the Master and Tool plates.
G 3/8 (BSPP) ports.
(8) self-sealing ports (Master side).
(4) self-sealing ports and (4) pass-through ports OR (8) self-sealing ports OR (8) pass-through ports (Tool side)
300 series stainless steel for protection against corrosion.
100 psi (6.9 bar) maximum.
Not for vacuum service.

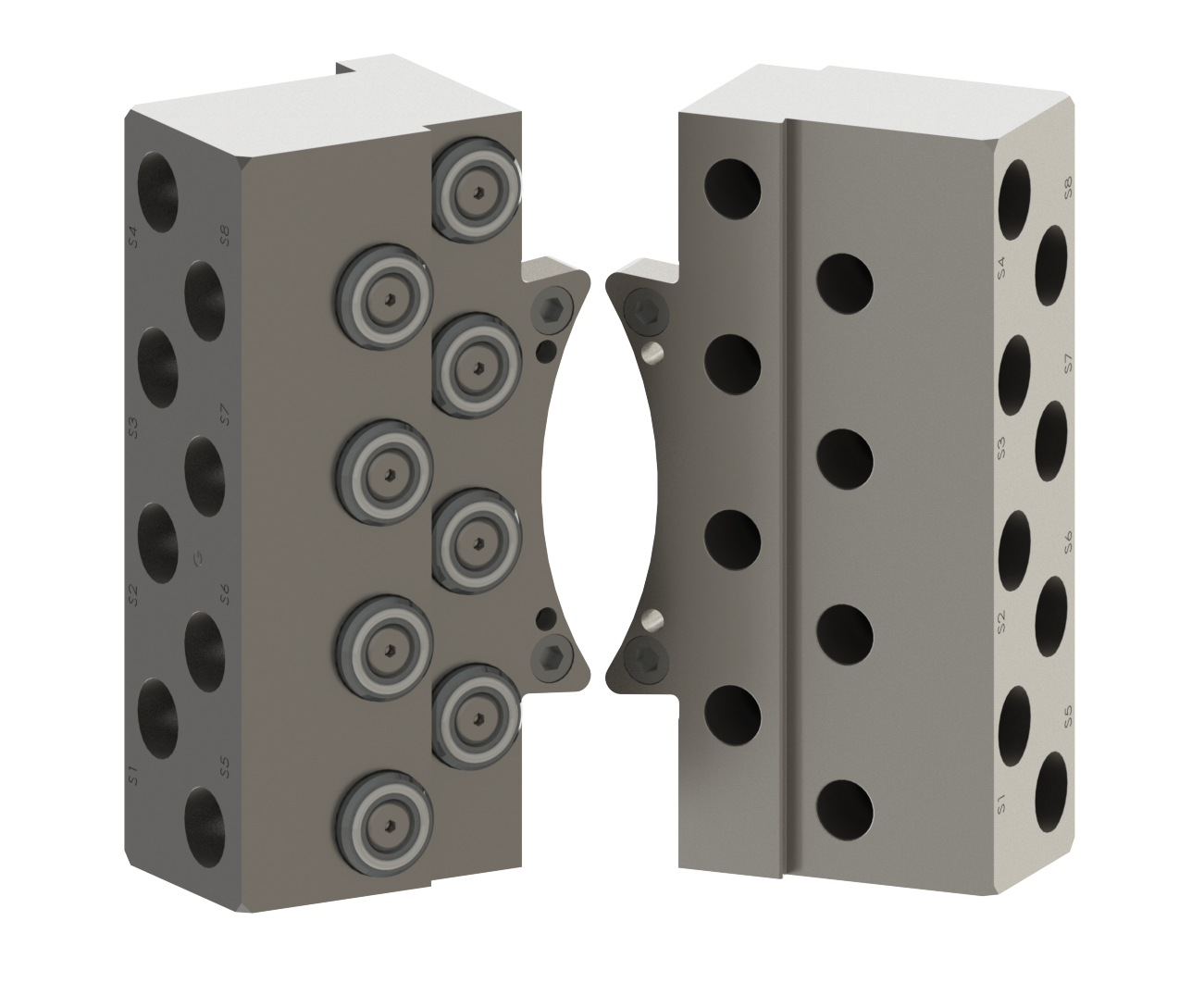

FC2 Modules (Master and Tool)

Part Number	Side	Notes
9121-FC2-M	M	(8) G 3/8 (BSPP) self-sealing ports (Mates with FC2-T, FC3-T, or FC4-T) - Master side
9121-FC2-T	T	(4) G 3/8 (BSPP) self-sealing ports and (4) pass-through ports (Mates with FC2-M) - Tool side
9121-FC3-T	T	(8) G 3/8 (BSPP) pass-through ports (Mates with FC2-M) - Tool side
9121-FC4-T	T	(8) G 3/8 (BSPP) self-sealing ports (Mates with FC2-M) - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

G 3/8 (BSPP) Ports - (8) self-sealing ports (Master side), (4) self-sealing ports and (4) pass-through ports OR (8) pass-through ports OR (8) self-sealing ports (Tool side)

Cv Rating:

1.6

Weight:

13.1 lbs (5.9 kg)

Materials:

Stainless steel housings
Stainless steel, Nitrile, and PVC valve components.

Operational Temperature Range:

-20 °F - 150 °F (-28.9 °C - 65.6 °C)
