Tool Changers: QC-1310


Skip Navigation LinksHome > Products > Robotic Tool Changers > Tool Changer Models > QC-1310





Product Advantages
  • Modular Construction: High power, coolant, servo, fieldbus, and discrete signal capabilities are built into separate modules making maintenance easy - increasing commonality and flexibility for the customer.
  • Extremely High Moment Capacity and Strength: The QC-1310 utilizes the same proven locking mechanism as the QC-310 Series Tool Changers - exceeding 2300 kg robot load specifications.
  • Internally Routed Cabling: Supports integrated valve and control module options - making it easy to add and remove modules.
  • Stack Height when Locked: 5.20 inch (132.2 mm) (Does not include required interface plate).
  • Integrated lock and unlock sensing available.

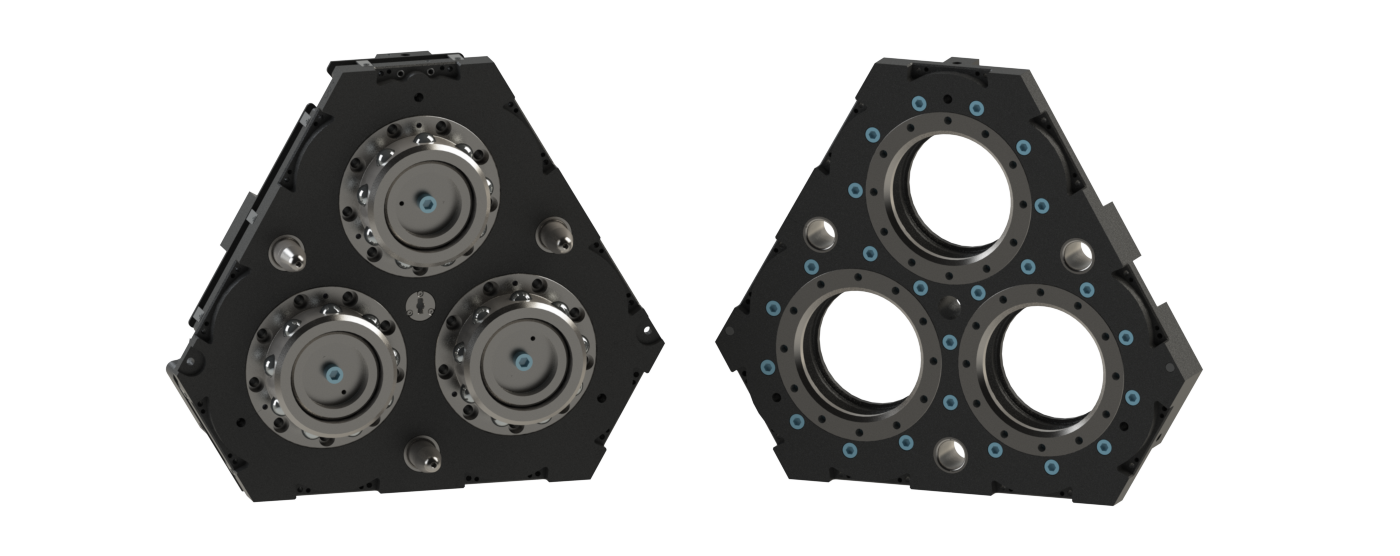

QC-1310 Tool Changer (Master and Tool)
QC-1310 Tool Changer (Master and Tool)

SpecificationsDrawingsManualsCompatible Modules3D CAD Models
Units:
Suggested Payload Limit: 6600 lb
Locking Force @ 80 psi (5.5 bar): 26000 lb
Static Moment Capacity (X & Y): 97500 lbf-in
Static Moment Capacity (Z): 111000 lbf-in
Positional Repeatability - (X, Y, & Z): 0.0006 in
Weight - when coupled: 142 lb
Master Weight: 95 lb
Tool Weight: 47 lb
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): 0.04 in
