Air Modules: AP2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AP2





Product Advantages
  • Provides air service from the Master to the Tool plates.
  • 1/2 NPT ports.
  • (4) self-sealing ports (AP2 Master and Tool side).
  • (4) pass-through ports (AP8 Tool side).
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

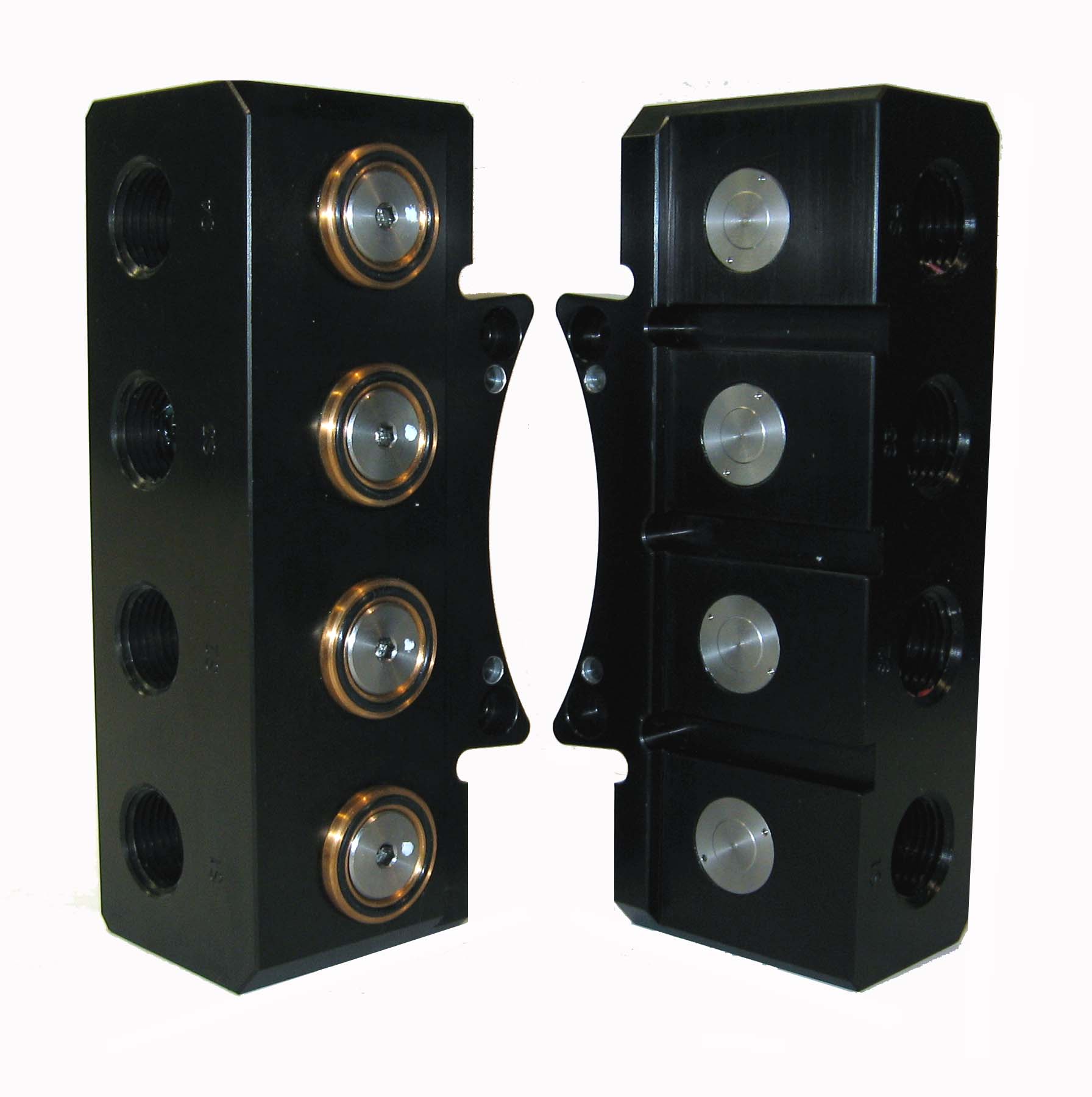

AP2 Modules (Master and Tool)
AP2 Modules (Master and Tool)

Part NumberSideNotes
9121-AP2-MM(4) 1/2 NPT self-sealing ports - Air Module only - Master side
9121-AP2-TT(4) 1/2 NPT self-sealing ports - Air Module only - Tool side
9121-AP8-TT(4) 1/2" NPT Pass-through Ports - Air Module only - Tool Side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: (4) 1/2 NPT self-sealing (AP2 Master and Tool) or pass-through (AP8 Tool) ports - Air Module only
Cv Rating: 3.1
Weight: AP2 Master 2.70 lbs (1.22 kg)
AP2 Tool 1.90 lbs (0.86 kg)
AP8 Tool 1.80 lbs (1.04 kg)
Materials:
  • Anodized aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
