Air Modules: AM2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AM2





Product Description
  • Provides air service from the Master to the Tool plates.
  • G 1/2 (BSPP) ports.
  • (2) self-sealing ports (Master and Tool side).
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

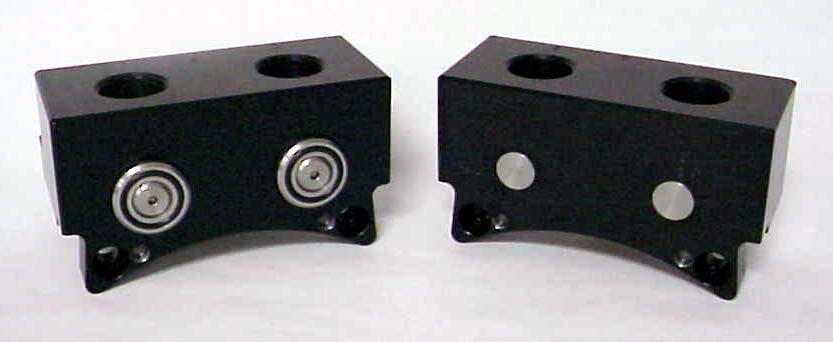

AM2 Modules (Master and Tool)
AM2 Modules (Master and Tool)

Part NumberSideNotes
9121-AM2-MM(2) G 1/2 (BSPP) Ports, 2 Self-sealing Ports - Master side
9121-AM2-TT(2) G 1/2 (BSPP) Ports, 2 Self-sealing Ports - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: (2) G 1/2 (BSPP) Ports, 2 Self-sealing Ports
Cv Rating: 1.6
Weight: Master 1.05 lbs (0.48 kg)
Tool 0.85 lbs (0.39 kg)
Materials:
  • Anodized aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
