Product Description and Features


Skip Navigation LinksHome > Products > Robotic Tool Changers > Product Description and Features


Standard Quick Change Tool Changers - This series of Tool Changers is built around a 'round' body with integrated pneumatic ports and our patented high-strength locking mechanism. A variety of electrical modules are available for use with the Standard Series.

Heavy Automation Quick Change Tool Changers - The Heavy Automation Series of Tool Changers is built around a 'square' body and uses our patented high-strength locking mechanism. This series of Tool Changers is more modular in design, with a wide variety of electrical, pneumatic, fluid, and high-power modules available. Heavy Automation Tool Changers are commonly used in heavy material handling and primary and secondary welding applications.

For applications that do not require a locking mechanism, ATI Utility Couplers may be an option.  Click here for more information.

If you are needing to change tools by hand, ATI Manual Tool Changers may be a cost-effective solution.  Click here from more information.

Both options can utilize a variety of ATI Tool Changer Utility Modules.

  • Extremely High Repeatability
    The piston acts as a large dowel pin, aligning the Master plate and Tool plate with unmatched repeatability. Million-cycle testing, at rated load, shows that the typical repeatability is much better than the guaranteed values.

  • High Rigidity
    The Quick-Change Tool Changer has a large moment capacity due to the locking piston's high coupling strength and large diameter. The coupled Tool Changer remains rigid during high-inertia moves preventing locking failure or repeatability problems.

  • Excellent Reliability
    The patented multi-taper locking mechanism actually wears in instead of out. The pneumatic ports use uniquely-designed, long-life rubber bushings, which prevent any loss of air pressure. Spring probe electrical pins on the Master Plate insure contact with fixed pins on the Tool Plate. The Quick-Change Robotic Tool Changer is built to last.

  • Superior Fail-Safe Locking Mechanism
    The ATI Tool Changer Locking Mechanism has a Fail-Safe feature that prevents the Tool plate from releasing from the Master plate if lock air pressure is accidentally removed.

  • Lightweight and Compact Design

  • Economical
    World-wide sales volumes have allowed us to price the Quick-Change Tool Changer at or below the competition.

  • Flexible
    With a wide range of electrical, pneumatic, and fluid modules available, ATI Quick-Change Tool Changers can be configured to fit most any application. Be sure to contact sales at 919-772-0115 for detailed information concerning option compatibility with a specific Tool Changer.

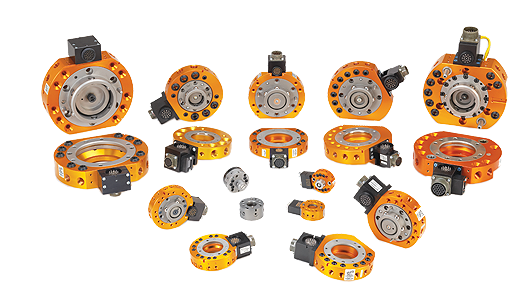

Standard Series Tool Changers

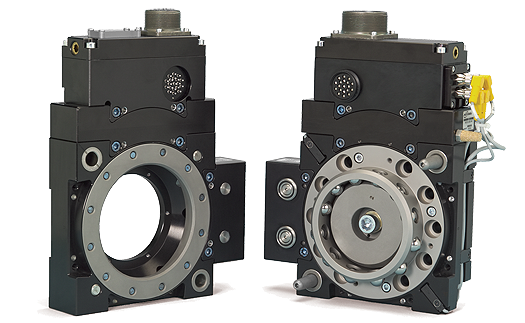

Heavy Automation Tool Changers
