Fluid/Air Module: FH6

Home > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FH6

Attention: An upgraded version of this item is available.

Current Product	Benefits	Interchangeable

FH12	Updated module design to prevent fluid leaks.	No

Product Description

Provides fluid/air service to the Master and Tool plates.
G 1/2 (BSPP) ports.
(4) self-sealing ports (Master- and Tool-side).
300 series stainless steel for protection against corrosion.
100 psi (6.9 bar) maximum.
Not for vacuum service.

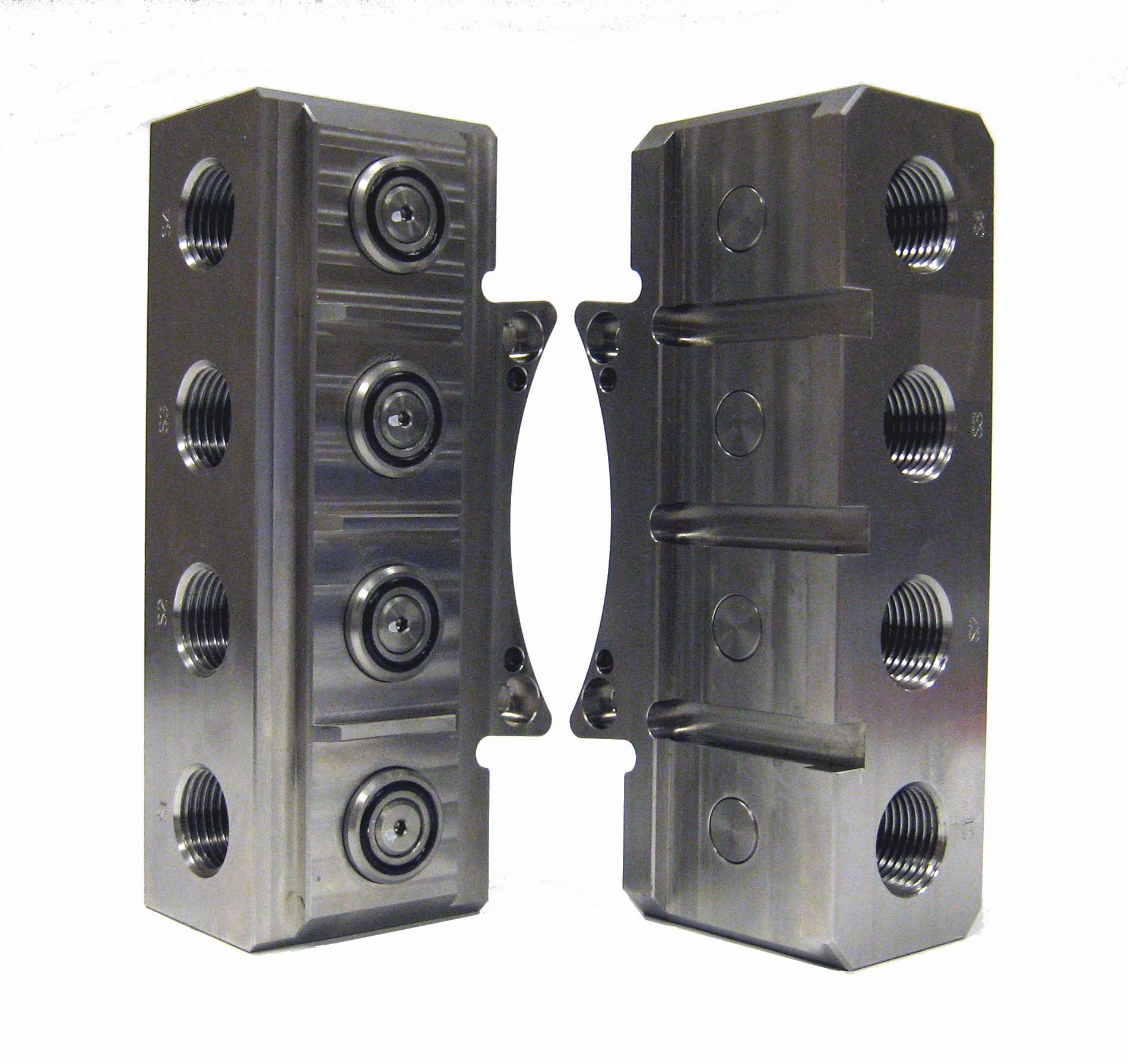

FH6 Modules (Master and Tool)

Part Number	Side	Notes
9121-FH6-M	M	Stainless Steel Fluid/Air module with (4) G 1/2 (BSPP) self-sealing ports - Master side
9121-FH6-T	T	Stainless Steel Fluid/Air module with (4) G 1/2 (BSPP) self-sealing ports - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Stainless Steel Fluid/Air module with (4) G 1/2 (BSPP) self-sealing ports

Cv Rating:

1.6

Weight:

Master 6.3 lbs (2.86 kg)
Tool 5.2 lbs (2.36 kg)

Materials:

Stainless steel housings
Stainless steel, Nitrile, and PVC valve components.

Operational Temperature Range:

-20 °F - 150 °F (-28.9 °C - 65.6 °C)
