Fluid/Air Module: FH12


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FH12





Product Advantages
  • FH12 provides fluid/air service to Master and Tool plates.
  • Four (4) self-sealing ports on FH12 Master and Tool side.
  • G1/2 (BSPP) customer interface.
  • 3/8 valve components.
  • Nipple port feature with radial seal.
  • FH12 module housings are 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.
  • AP5 Tool side mates with the FH12 Master side and is for air-only use for material handling end-effectors.
  • One (1) self-sealing port on AP5 Tool side.

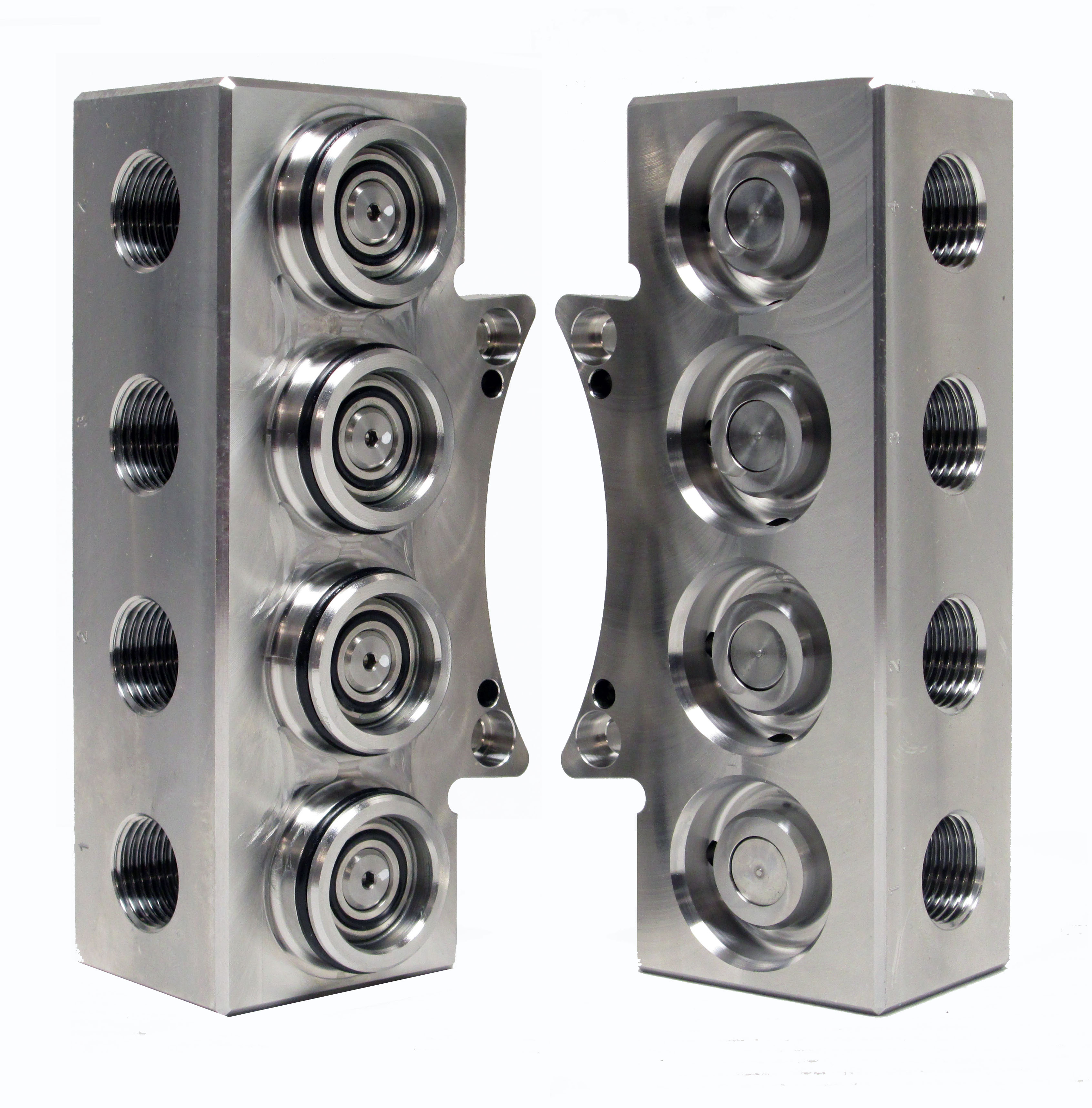

FH12 Modules (Master and Tool)
FH12 Modules (Master and Tool)

Part NumberSideNotes
9121-FH12-MMStainless Steel Fluid/Air Module with (4) G1/2 (BSPP) Self-Sealing Ports, 3/8 Valve Components, Nipple Port with Radial Seal - Master side
9121-AP5-TTAir Module with (1) G1/2 (BSPP) Self-Sealing Port, 3/8 Valve Components, C-bore for Nipple Port - Tool Side
9121-FH12-TTStainless Steel Fluid/Air Module with (4) G1/2 (BSPP) Self-Sealing Ports, 3/8 Valve Components, Nipple Port with Radial Seal - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Stainless Steel Fluid/Air Module with (4) G1/2 (BSPP) Self-Sealing Ports, 3/8 Valve Components, Nipple Port with Radial Seal
Cv Rating: 1.6
Weight: FH12 Master 6.4 lbs (2.90 kg)
FH12 Tool 5.0 lbs (2.27 kg)
AP5 Tool 2.0 lbs Est. (0.91 kg Est)
Materials:
  • FH12 Housings: Stainless steel.
  • Valve Components: Stainless steel, Nitrile, and PVC.
  • AP5 Housings: Anodized Aluminum.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
