Air Modules: AG2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AG2





Product Advantages
  • Provides air and vacuum service from the Master to the Tool plates.
  • (4) G 3/8 (BSPP) air ports. Self-sealing (Master side) and pass-through (Tool-side).
  • (2) G 3/4 (BSPP) vacuum ports (Master and Tool).
  • 100 psi (6.9 bar) maximum.

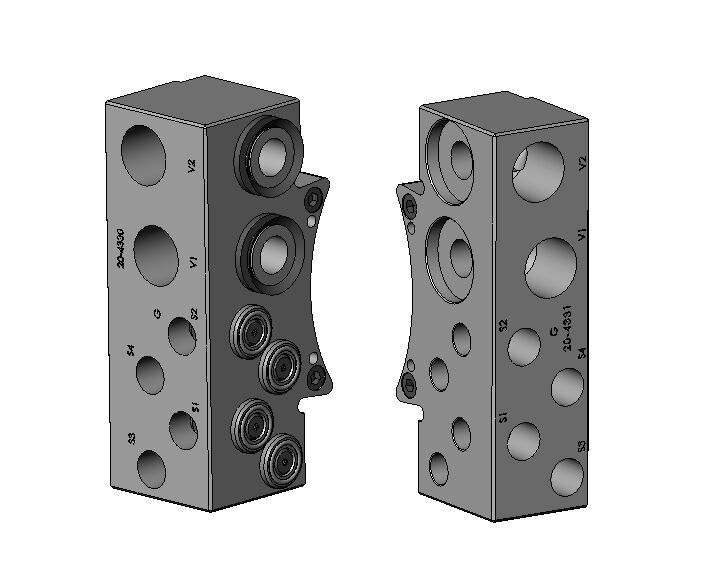

AG2 Modules (Master and Tool)
AG2 Modules (Master and Tool)

Part NumberSideNotes
9121-AG2-MM(4) G 3/8 (BSPP) self-sealing ports and G (2) 3/4 (BSPP) vacuum ports - Master side
9121-AG2-TT(4) G 3/8 (BSPP) pass-through ports and (2) G 3/4 (BSPP) vacuum ports - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: (4) G 3/8 (BSPP) self-sealing ports (Master side) and pass-through (Tool side), and (2) G 3/4 (BSPP) vacuum ports (Master and Tool side)
Cv Rating: 1.6
Weight: 4.34 lbs (1.97 kg)
Materials:
  • Aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
