Air Modules: AF2

Home > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AF2

Product Description

Provides air service from the Master to the Tool plates.
G 3/8 (BSPP) ports.
(8) pass-through ports (Master and Tool side).
100 psi (6.9 bar) maximum.
Supports positive pressure and vacuum flow conditions.

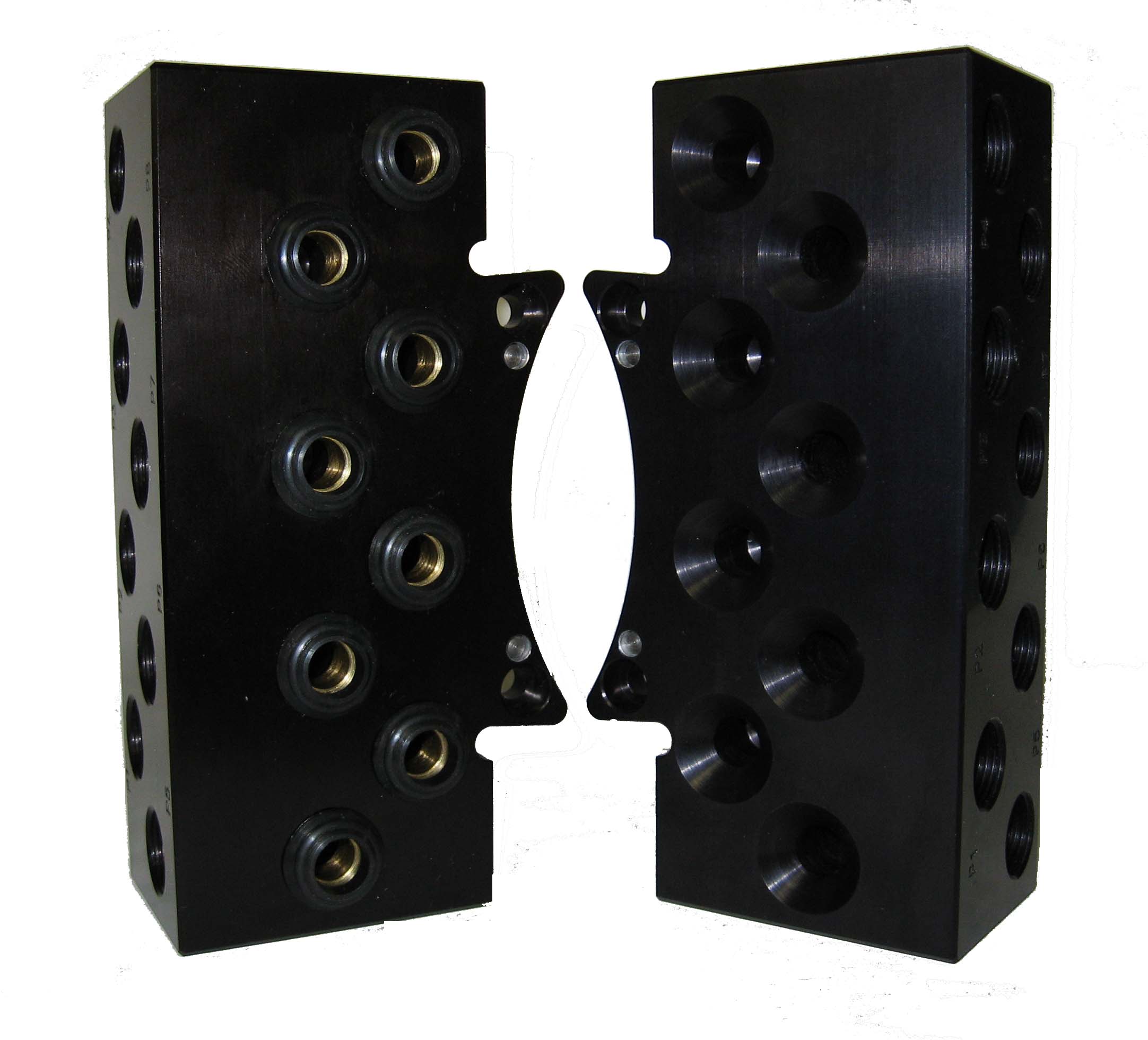

AF2 Modules (Master and Tool)

Part Number	Side	Notes
9121-AF2-M	M	(8) G 3/8 (BSPP) pass-through ports - Air only module - Master side
9121-AF2-T	T	(8) G 3/8 (BSPP) pass-through ports - Air only module - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

(8) G 3/8 (BSPP) pass-through ports - Air Only Module

Cv Rating:

2.45

Weight:

Master 2.60 lbs (1.18 kg)
Tool 2.30 lbs (1.04 kg)

Materials:

Aluminum housing
Brass seal collar
Nitrile seals.

Operational Temperature Range:

-20 °F - 150 °F (-28.9 °C - 65.6 °C)
