Fluid/Air Module: FS2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FS2





Product Advantages
  • Provides fluid/air service to the Master and the Tool plates.
  • (4) G 1/4 (BSPP) self-sealing ports.
  • (2) G 1/4 (BSPP) pass-through ports.
  • (4) G 1/8 (BSPP) pass-through ports.
  • 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

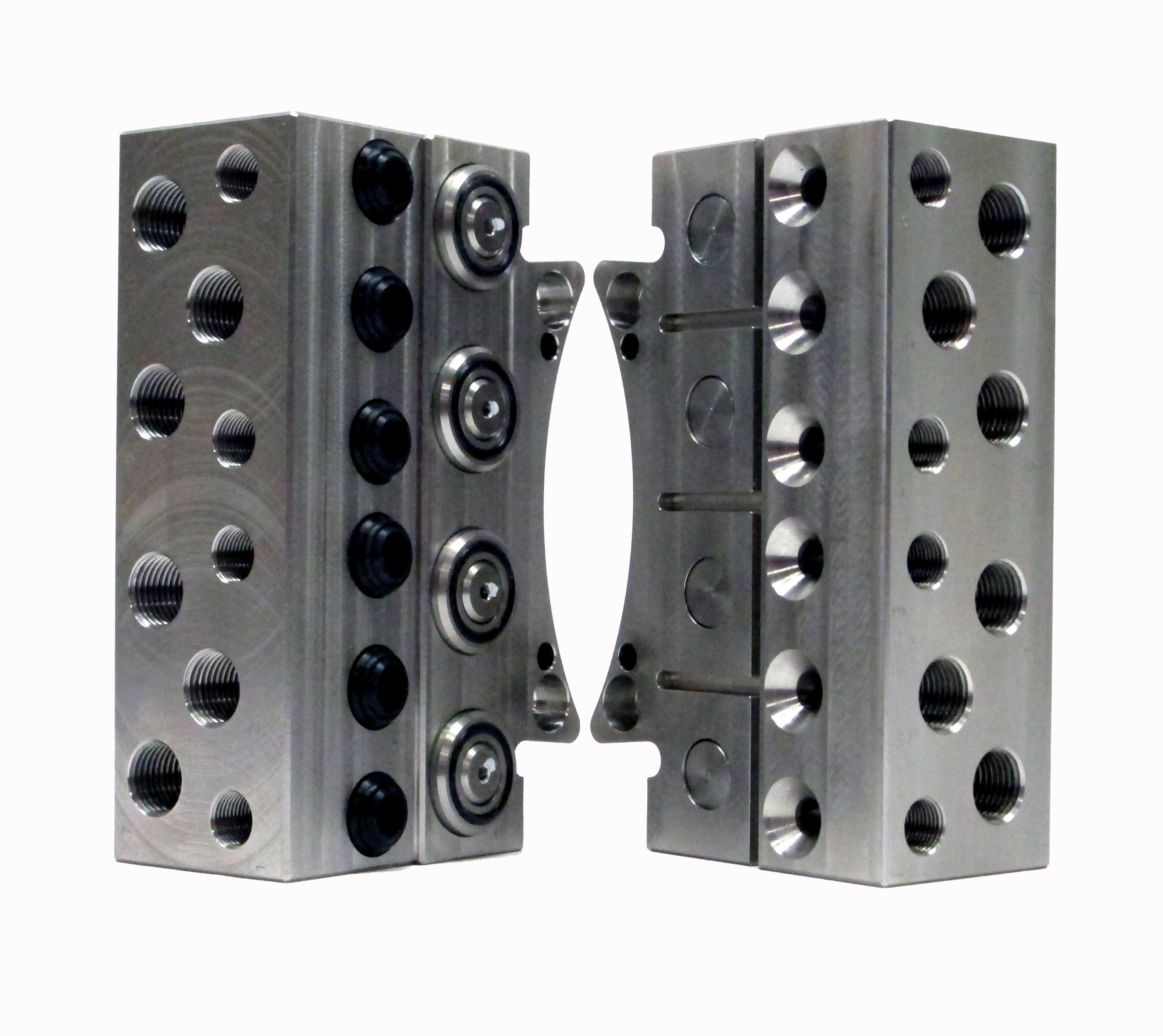

FS2 Modules (Master and Tool)
FS2 Modules (Master and Tool)

Part NumberSideNotes
9121-FS2-MMStainless Steel Fluid/Air Module with (4) G 1/4 (BSPP) self-sealing, (2) G 1/4 (BSPP) and (4) G 1/8 (BSPP) pass-through ports - Master side
9121-FS2-TTStainless Steel Fluid/Air Module with (4) G 1/4 (BSPP) self-sealing, (2) G 1/4 (BSPP) and (4) G1/8 (BSPP) pass-through ports - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Stainless Steel Fluid/Air Module with (4) G 1/4 (BSPP) self-sealing, (2) G 1/4 (BSPP) and (4) G 1/8 (BSPP) pass-through ports
Cv Rating: 1.4 for 1/4
0.65 for 1/8
Weight: Master 4.56 lbs (2.07 kg)
Tool 4.37 lbs (1.98 kg)
Materials:
  • Stainless steel housings
  • Stainless steel valve components
  • Nitrile rubber seals
  • CPVC plastic plug.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
