Adapter Assemblies: JJ10


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > JJ10





Product Description
  • Adapter assembly used to mount ledge mount modules to QC.
  • Compact design.
  • For use with electrical and servo modules only.

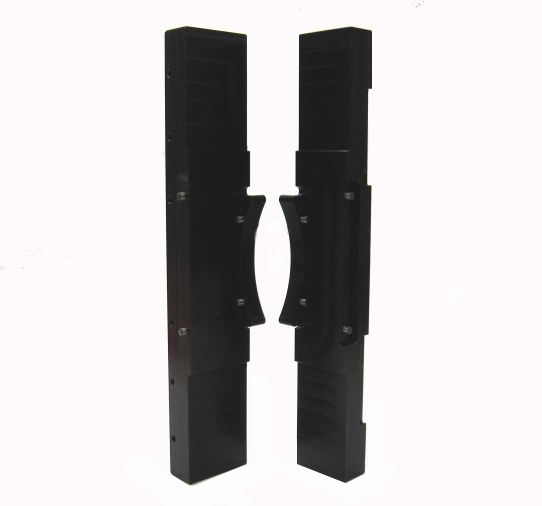

JJ10 Modules (Master and Tool)
JJ10 Modules (Master and Tool)

Part NumberSideNotes
9121-JJ10-MMDual Ledge Mount Adapter Module - Master side
9121-JJ10-TTDual Ledge Mount Adapter Module - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Dual Ledge Mount Adapter Module
Weight: Master 2.30 lbs (1.04 kg)
Tool 1.95 lbs (0.88 kg)
Materials:
  • Aluminum adapter plate
  • Steel dowel pins.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
