Air Modules: AA2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AA2





Product Advantages
  • Provides air service from the Master to the Tool plates.
  • 1/2 NPT ports.
  • (2) self-sealing ports (Master side).
  • (2) self-sealing ports OR (2) pass-through ports (Tool side).
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

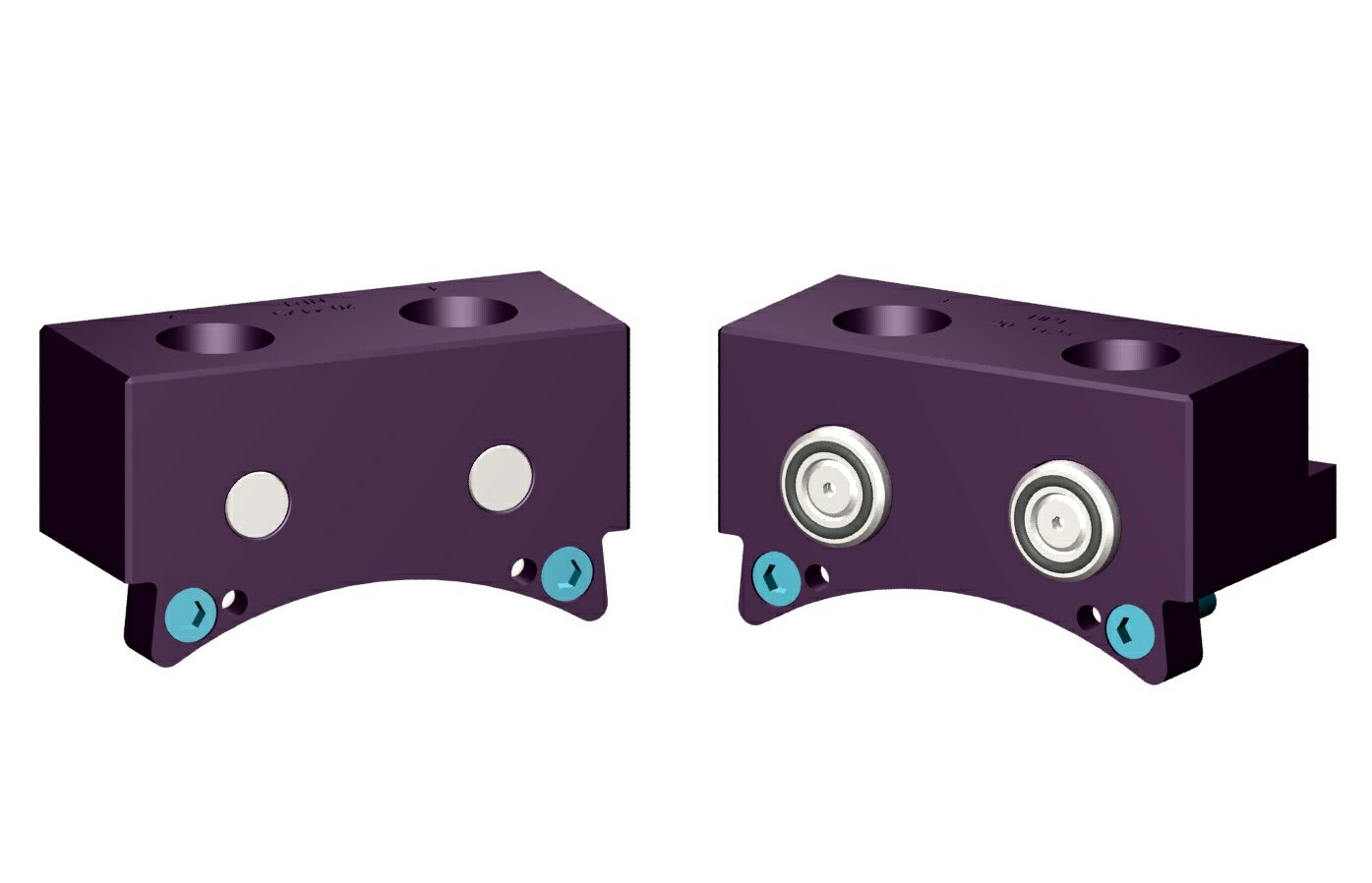

AA2 Modules (Master and Tool)
AA2 Modules (Master and Tool)

Part NumberSideNotes
9121-AA2-MM(2) 1/2 NPT self-sealing ports, Air Only Module (Mates with AA2-T or AA3-T) - Master side
9121-AA2-TT(2) 1/2 NPT self-sealing ports, Air Only Module (Mates with AA2-M) - Tool side
9121-AA3-TT(2) 1/2 NPT pass-through ports, Air Only Module (Mates with AA2-M) - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: (2) 1/2 NPT self-sealing ports (Master side), (2) 1/2 NPT self-sealing or pass-through ports (Tool side), Air Only Module
Cv Rating: 1.6
Weight: Master 1.18 lbs (0.54 kg)
Tool 0.91 lbs (0.41 kg)
Materials:
  • Anodized aluminum housing
  • Stainless steel valve components
  • Nitrile seals
  • PVC Tool side port plug.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
