Adapter Assemblies: JJ16


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > JJ16





Product Description
  • Ledge mount adapter module.
  • Adapter assembly used to mount J16 pattern modules to QC.
  • Compact design.
  • 7-positions.
  • For use with electrical and servo modules only.

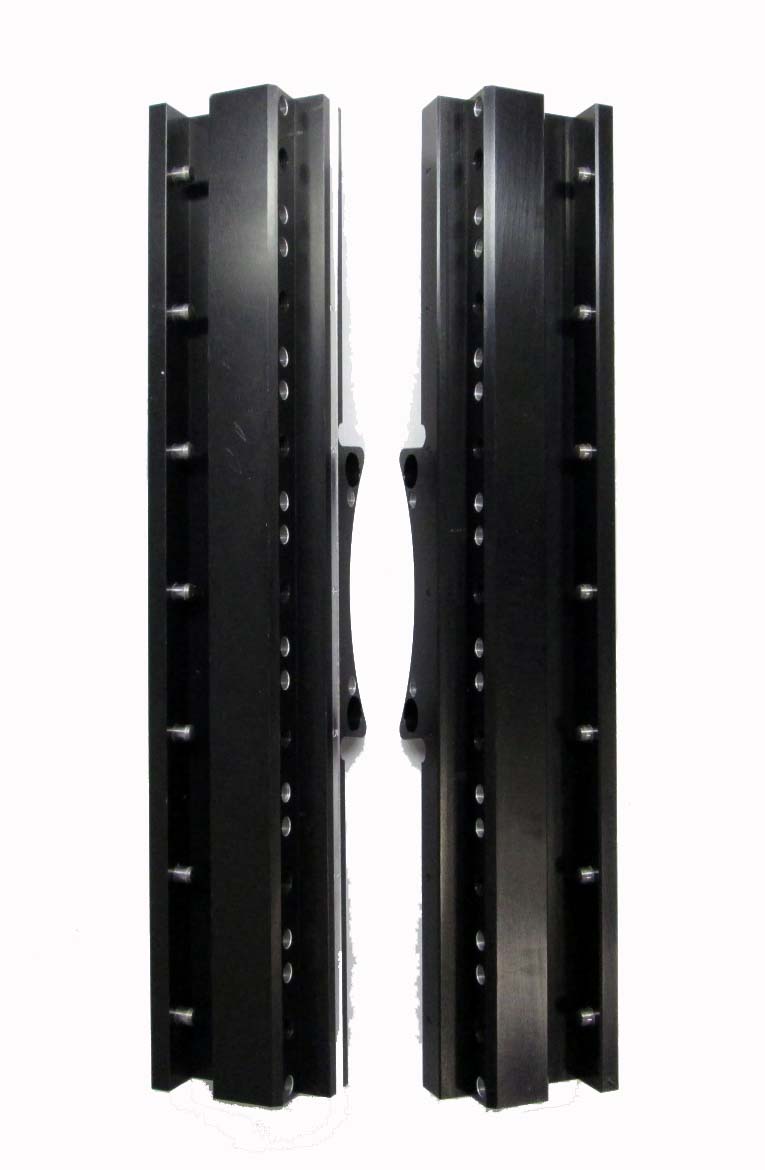

JJ16 Modules (Master and Tool)
JJ16 Modules (Master and Tool)

Part NumberSideNotes
9121-JJ16-MMRail Style, Ledge Mount Adapter, 7-Positions - Master side
9121-JJ16-TTRail Style, Ledge Mount Adapter, 7-Positions - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Rail Style, Ledge Mount Adapter, 7-Positions
Weight: Master 1.98 lbs (0.90 kg)
Tool 1.73 lbs (0.78 kg)
Materials:
  • Aluminum adapter plate
  • Steel dowel pins.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
