Air Modules: AR8


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AR8





Product Description
  • Provides air service from the Master to the Tool plates.
  • Rc 1/2 (BSPT) ports.
  • Self-sealing on Master and Tool.
  • 3/8 valves.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

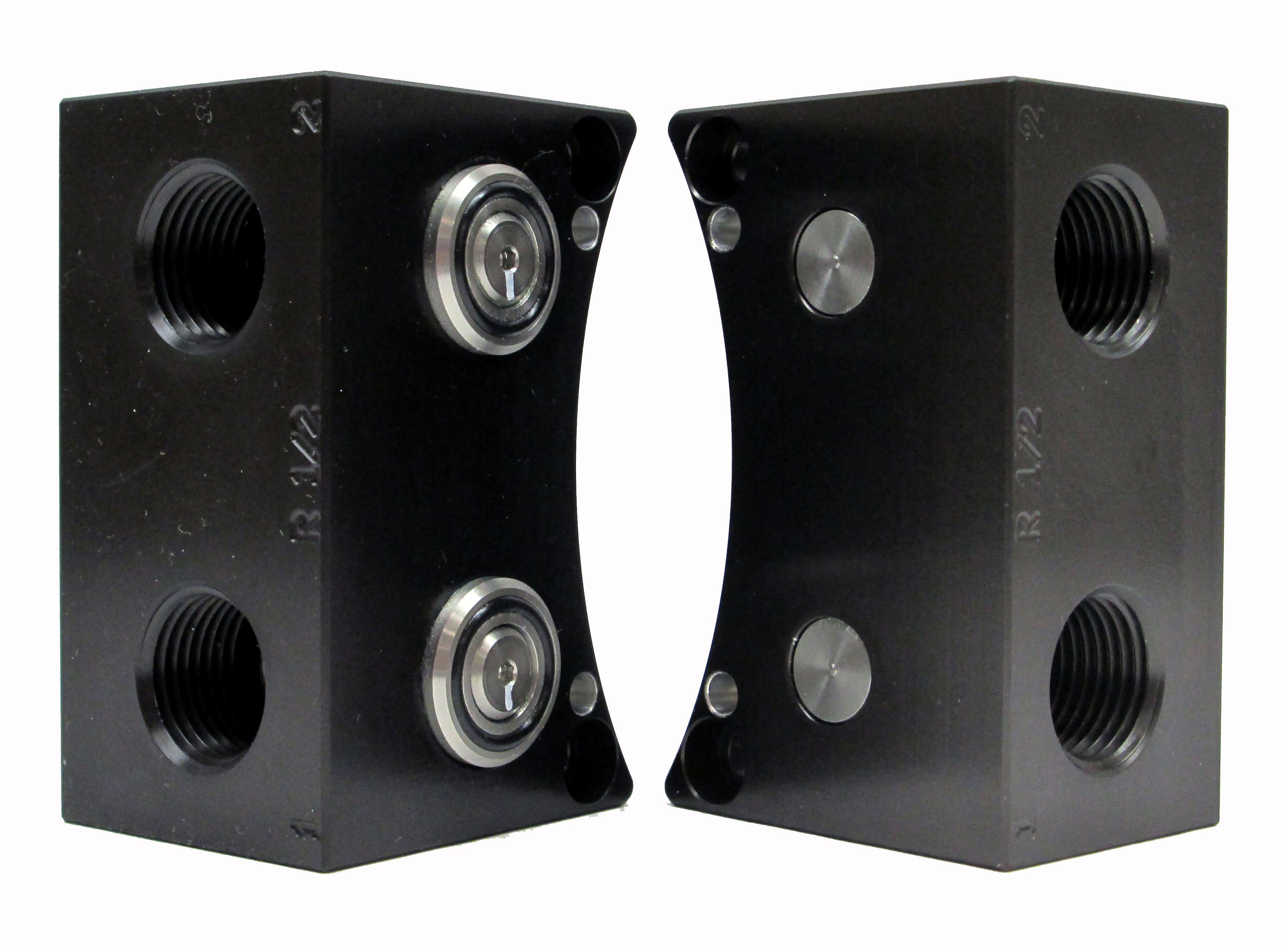

AR8 Modules (Master and Tool)
AR8 Modules (Master and Tool)

Part NumberSideNotes
9121-AR8-MMPneumatic Module with (2) Rc 1/2 (BSPT) self-sealing ports, 3/8 valves - Master side
9121-AR8-TTPneumatic Module with (2) Rc 1/2 (BSPT) self-sealing ports, 3/8 valves - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Pneumatic Module with (2) Rc 1/2 (BSPT) self-sealing ports, 3/8 valves
Cv Rating: 1.6
Weight: Master 0.91 lbs (0.41 kg)
Tool 0.77 lbs (0.35 kg)
Materials:
  • Aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
