Air Modules: AH2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AH2





Product Advantages
  • Provides air service from the Master to the Tool plates.
  • G 3/8 (BSPP) ports.
  • (8) self-sealing ports (Master side).
  • (4) self-sealing and (4) pass-through ports OR (8) pass-through ports (Tool side)
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

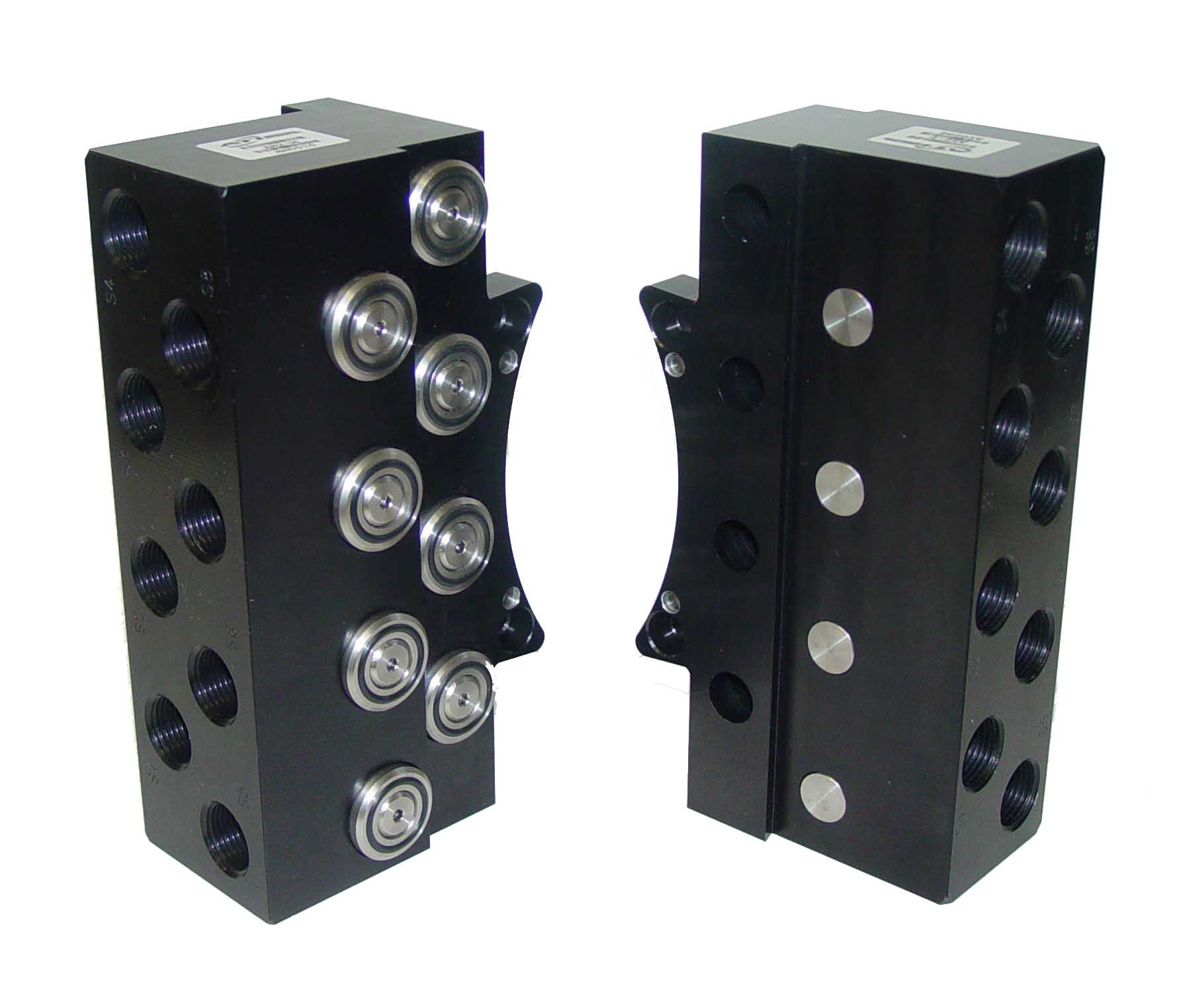

AH2 Modules (Master and Tool)
AH2 Modules (Master and Tool)

Part NumberSideNotes
9121-AH2-MMAir Module with (8) G 3/8 (BSPP) self-sealing ports (Mates with AH2-T, AH3-T, or AH4-T) - Master side
9121-AH2-TTAir Module with (4) G 3/8 (BSPP) self-sealing ports and (4) pass-through ports (Mates with AH2-M) - Tool side
9121-AH3-TTAir Module with (8) G 3/8 (BSPP) pass-through ports (Mates with AH2-M) - Tool side
9121-AH4-TTAir Module with (8) G 3/8 (BSPP) self-sealing ports (Mates with AH2-M) - Tool side

SpecificationsCompatible QCsDrawingsManualsOptions

Description: Air Module with G 3/8 (BSPP) Ports - (8) self-sealing ports (Master side) and (4) self-sealing ports and (4) pass-through ports OR (8) pass-through ports OR (8) self-sealing ports (Tool side)
Cv Rating: 1.6
Weight: 4.87 lbs (2.21 kg)
Materials:
  • Aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
