Fluid/Air Module: FL4


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FL4





Product Description
  • Provides fluid/air service to the Master and Tool plates.
  • Rc 1/2 (BSPT) ports.
  • (5) self-sealing ports (Master- and Tool-side).
  • 3/8 valves.
  • 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

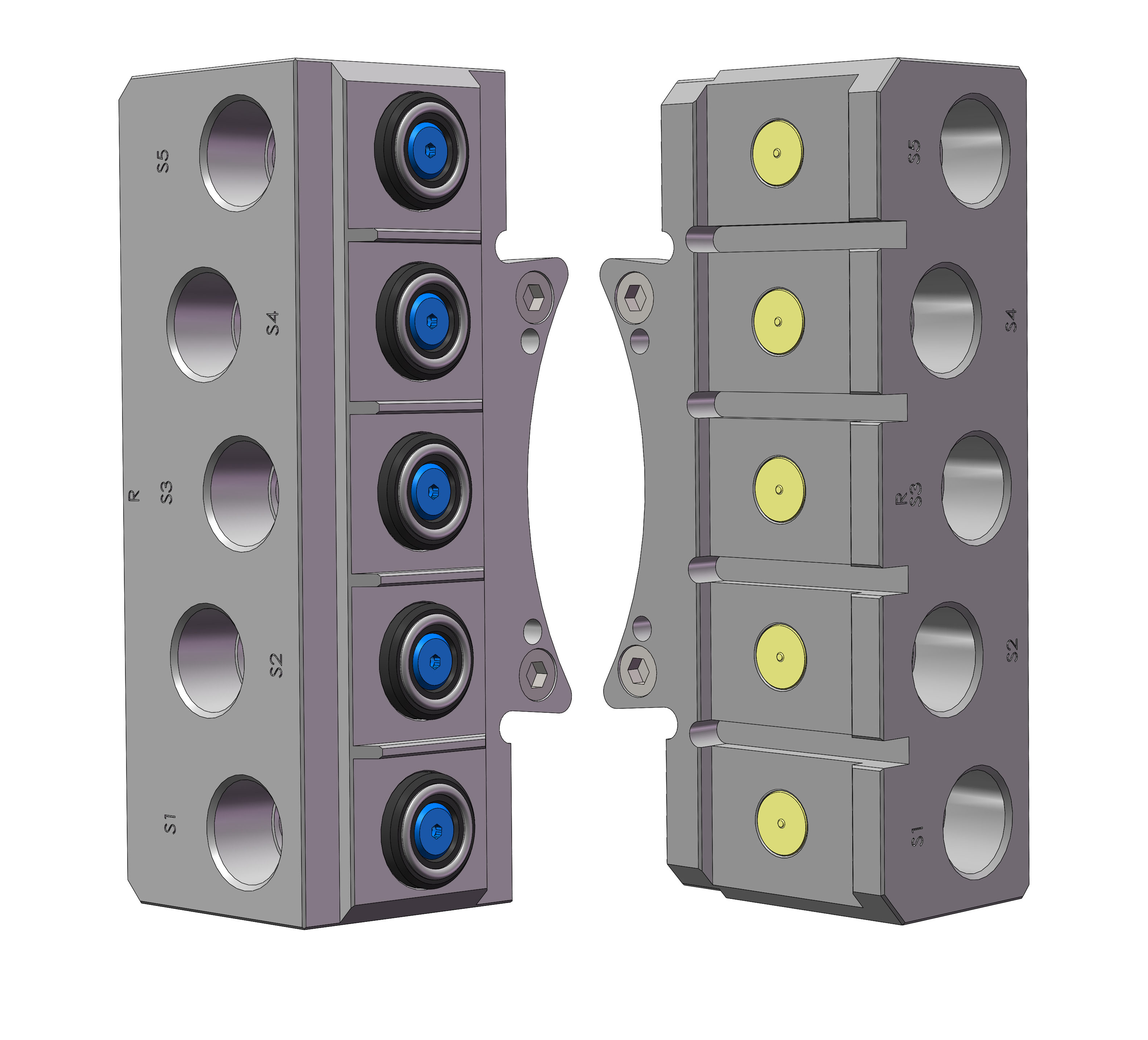

FL4 Modules (Master and Tool)
FL4 Modules (Master and Tool)

Part NumberSideNotes
9121-FL4-MMFluid/Air Modules with (5) Rc 1/2 (BSPT) Self-Sealing Ports, 3/8 Valves - Master side
9121-FL4-TTFluid/Air Modules with (5) Rc 1/2 (BSPT) Self-Sealing Ports, 3/8 Valves - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Fluid/Air Modules with (5) Rc 1/2 (BSPT) Self-Sealing Ports, 3/8 Valves
Cv Rating: 1.6
Weight: Master 7.0 lbs (3.19 kg)
Tool 5.3 lbs (2.4 kg)
Materials:
  • Stainless steel housings
  • Stainless steel, Nitrile, and PVC valve components.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
