Air Modules: AW2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > AW2





Product Advantages
  • Provides air service from the Master to the Tool plates.
  • (3) 1/8 NPT pass-through ports.
  • (2) 1/4 NPT pass-through ports.
  • 100 psi (6.9 bar) maximum.
  • Supports positive pressure and vacuum flow conditions.

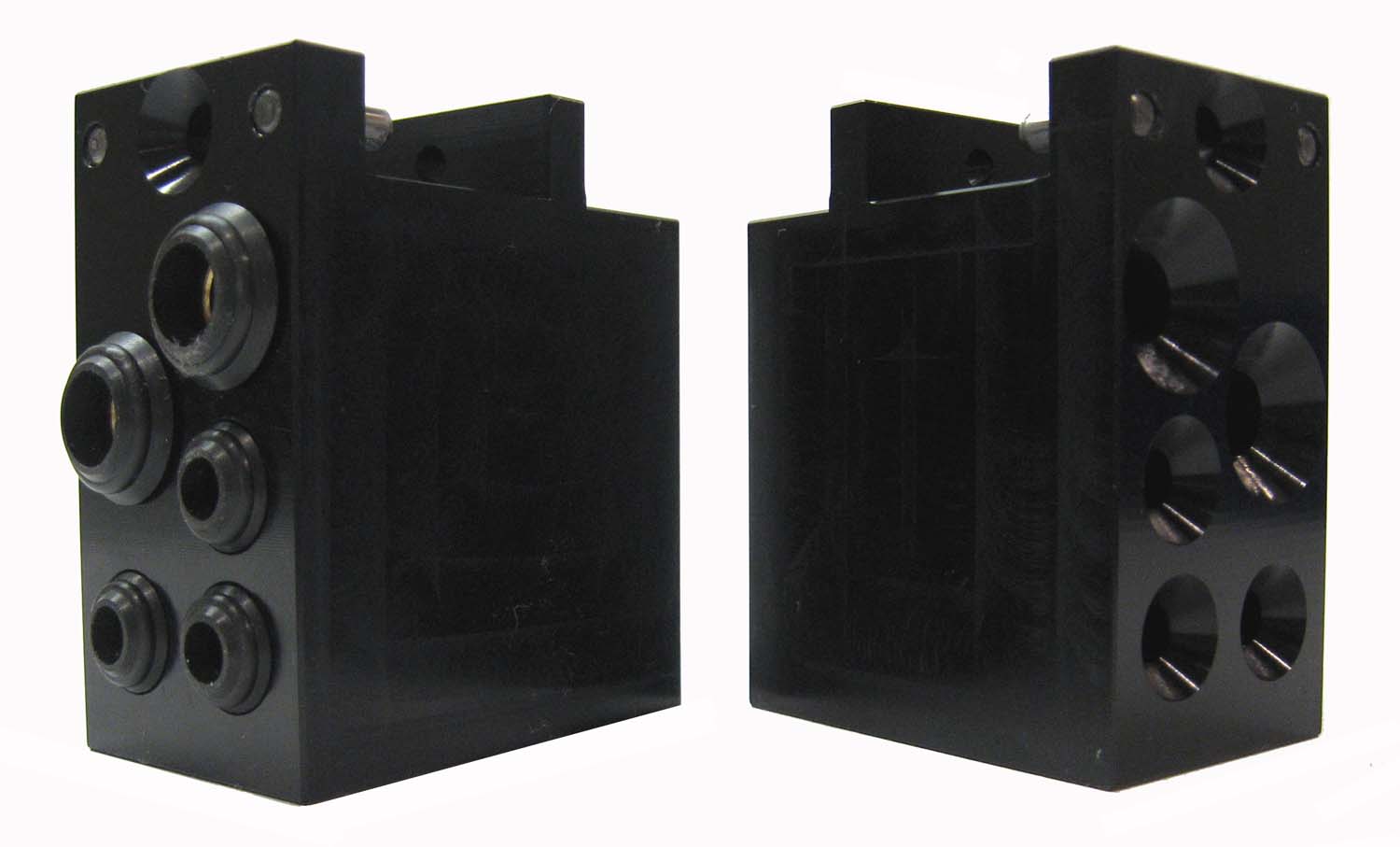

AW2 Modules (Master and Tool)
AW2 Modules (Master and Tool)

Part NumberSideNotes
9121-AW2-MMAir Module, (3) 1/8 NPT, (2) 1/4 NPT Pass-through Ports - Master side
9121-AW2-TTAir Module, (3) 1/8 NPT, (2) 1/4 NPT Pass-through Ports - Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: Air Module, (3) 1/8 NPT, (2) 1/4 NPT Pass-through Ports
Cv Rating: 1.0 for 1/8 ports
2.4 for 3/8 ports
Weight: Master 0.9 lbs (0.4 kg)
Tool 0.9 lbs (0.4 kg)
Materials:
  • Aluminum housing
  • Stainless steel valve components
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
