ATI Tool Changer Products: JU10

Allows for use of the Cyxx Family control modules with the QC-210 and QC-1510 Tool Changers.
The valve adapter is equipped with an exhaust muffler and double solenoid valve.
Provides a single Lock and Unlock air supply connection to the compatible Tool Changer for actuation of the locking mechanism.
Control of the integrated valve is accomplished by transmitting unlatch and latch signals from the control/signal module to the integrated solenoid valve.
Lock and Unlock air connections to the Tool Changer or Utility Coupler are provided through ports in the ledge mount. O-rings in the QC body seal the connection.
Access to the solenoid valve manual override is provided through holes in the aluminum housing.
A tool adapter assembly (9121-JU11-T) is required for the Tool side which provides the proper spacing and a mounting surface for the control/signal Tool module.

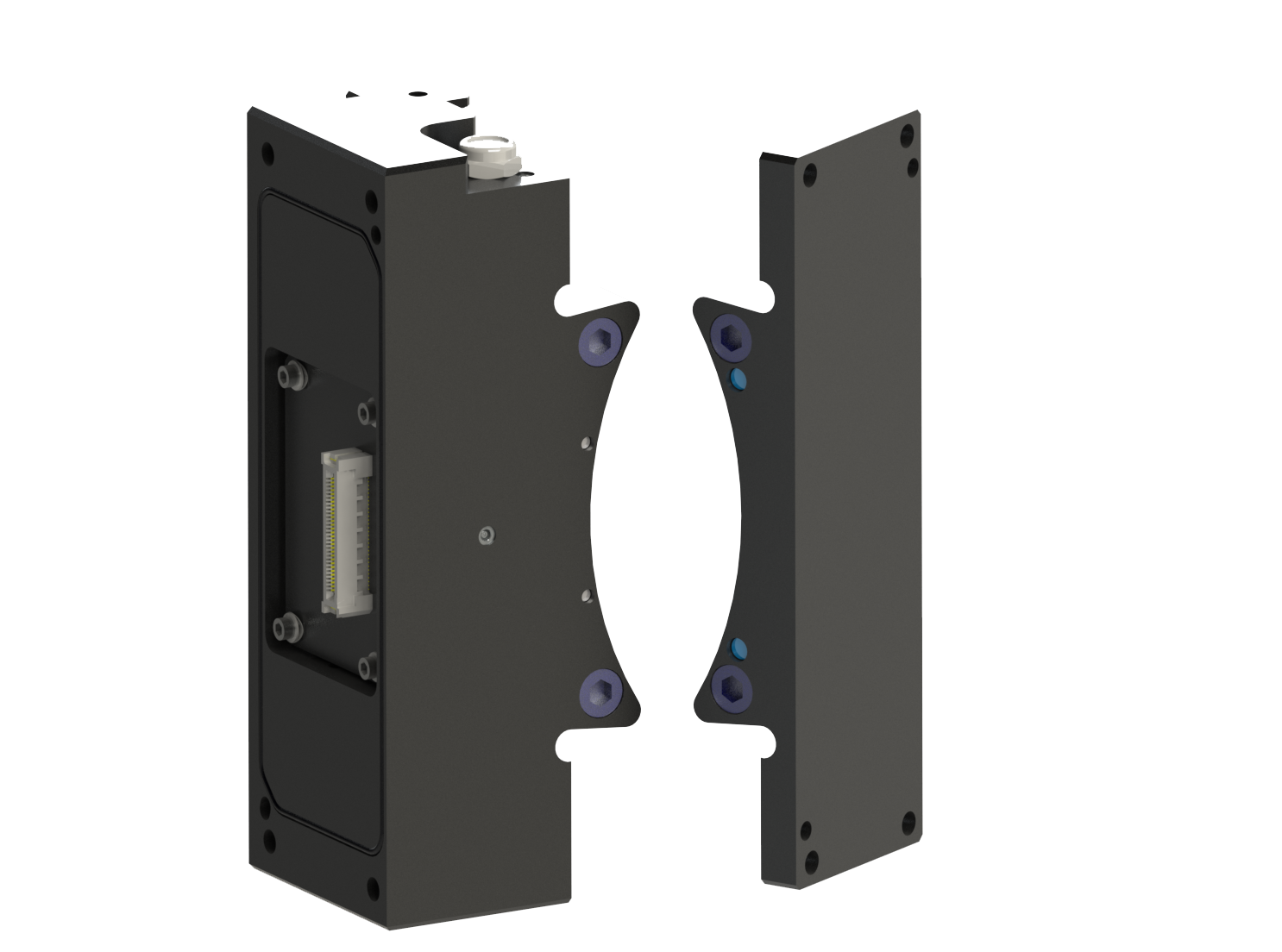

JU10 Master and JU11 Tool

Part Number	Side	Notes
9121-JU10-M	M	Valve Adapter, Double Solenoid, 1/4 G, QC210 Ledge to Series 8 Control Module - Master Side
9121-JU11-T	T	Series 8 to Tool Side Valve Adapter
