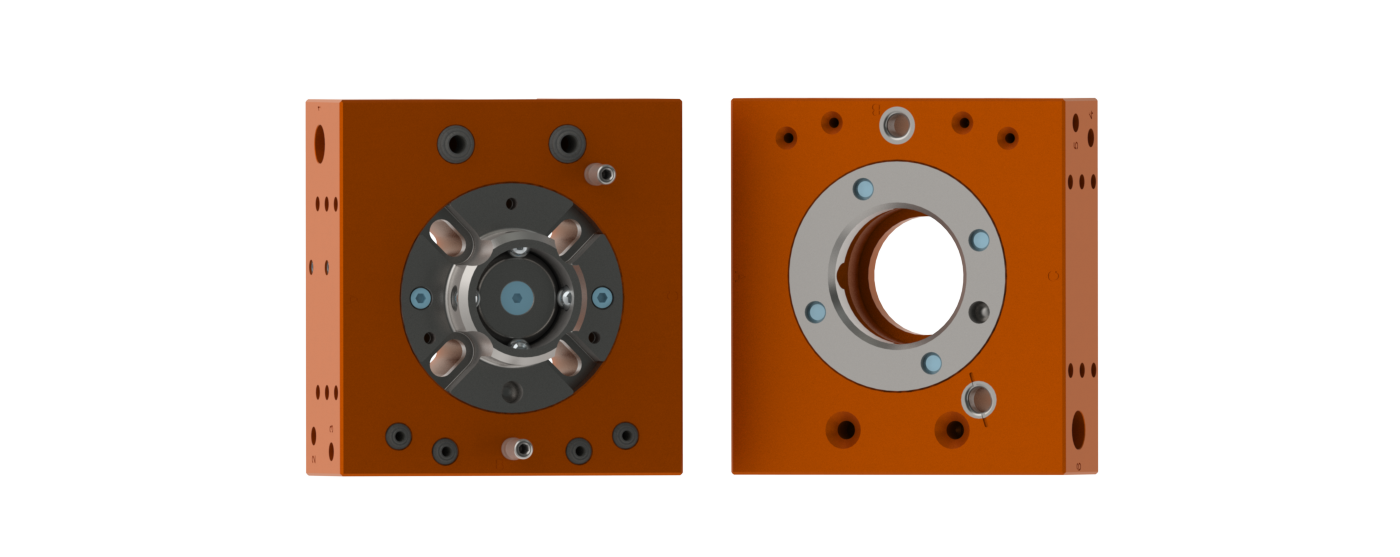

Suggested Payload Limit: |
77 lb |
|
Locking Force @ 80 psi (5.5 bar): |
640 lb |
|
Static Moment Capacity (X & Y): |
500 lbf-in |
|
Static Moment Capacity (Z): |
690 lbf-in |
|
Positional Repeatability - (X, Y, & Z): |
0.0006 in |
|
Weight - when coupled: |
3.65 lb |
|
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): |
0.06 in |
|
Pneumatic Pass-through Ports (qty) Size: |
(2) 1/8 NPT, (4) #10-32 OR (2) G 1/8 (BSPP), (4) M5 |
|
