Description: |

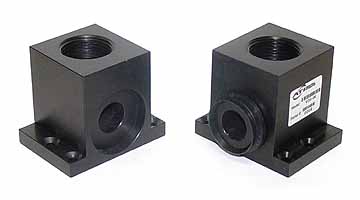

(1) G 3/4 (BSPP) pass-through port vacuum only module |
Weight: |
Master 0.47 lbs (0.21 kg) Tool 0.44 lbs (0.20 kg) |
Materials: |
- Anodized aluminum housings
- Nitrile rubber seals.
|
Operational Temperature Range: |
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
There are no Cables associated with this module.
|
|
9630-20-V34.pdf |
V34 Module Drawing
|
|
9620-20-D-V34.pdf |
V32 Vacuum/Air Module Manual
|
|
9120-V34-T |
Vacuum Port. ¾ "G". Tool Side
|
9120-V34-M |
Vacuum Port. ¾ "G". Master Side
|
|
