Fluid/Air Module: FN2


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FN2





Product Description
  • 3/8 NPT threaded ports.
  • (2) self-sealing fluid/air ports.
  • Compatible with F02 modules.
  • Compatible with F02 modules.
  • Stainless steel housing.
  • Viton seal option (-V).

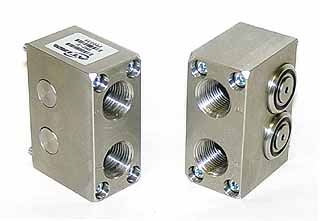

FN2 Modules (Master and Tool)
FN2 Modules (Master and Tool)

Part NumberSideNotes
9120-FN2-MM(2) 3/8 NPT self-sealing ports fluid/air module, stainless steel - Master side
9120-FN2-TT(2) 3/8 NPT self-sealing ports fluid/air module, stainless steel - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD ModelsOptions

Description: (2) 3/8 NPT self-sealing ports fluid/air module, stainless steel (replaces F02-N)
Cv Rating: 1.4
Weight: 1.6 lbs (0.73 kg)
Materials:
  • Stainless steel housings
  • Rubber, PVC, and stainless steel valve components.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
