Air Modules: P188-E


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > P188-E





Product Advantages
  • G 1/8 (BSPP) ports.
  • (8) pneumatic pass-through ports.
  • Euro.

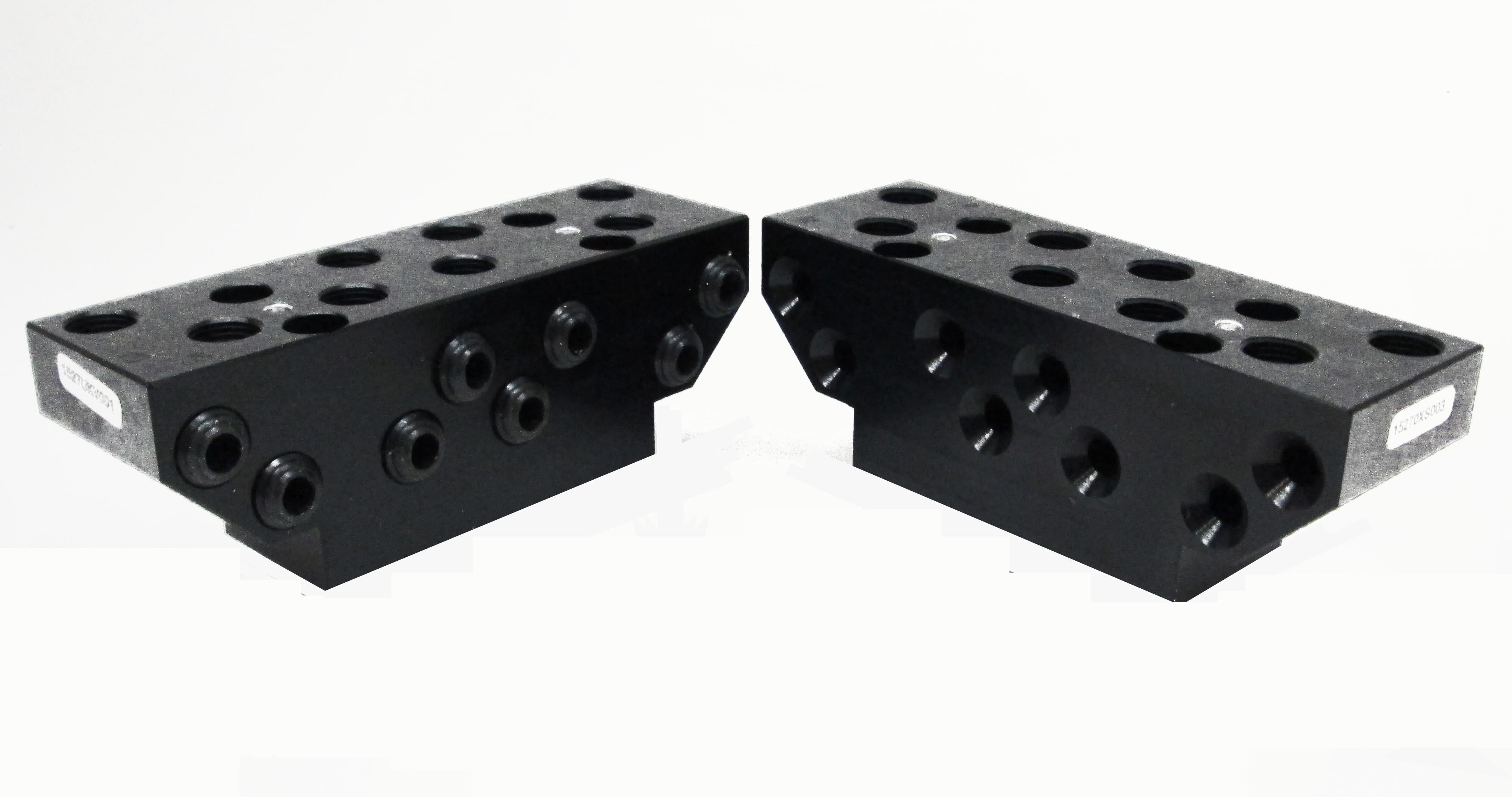

P188 Euro Modules (Master and Tool)
P188 Euro Modules (Master and Tool)

Part NumberSideNotes
9120-P188-M-EMPneumatic Module with (8) G 1/8 (BSPP) Ports - Master side
9120-P188-T-ETPneumatic Module with (8) G 1/8 (BSPP) Ports - Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: Pneumatic Module with (8) G 1/8 (BSPP) Ports
Weight: Master 0.53 lbs (0.24 kg)
Tool 0.54 lbs (0.24 kg)
Materials:
  • Anodized aluminum housing
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
