Description: |

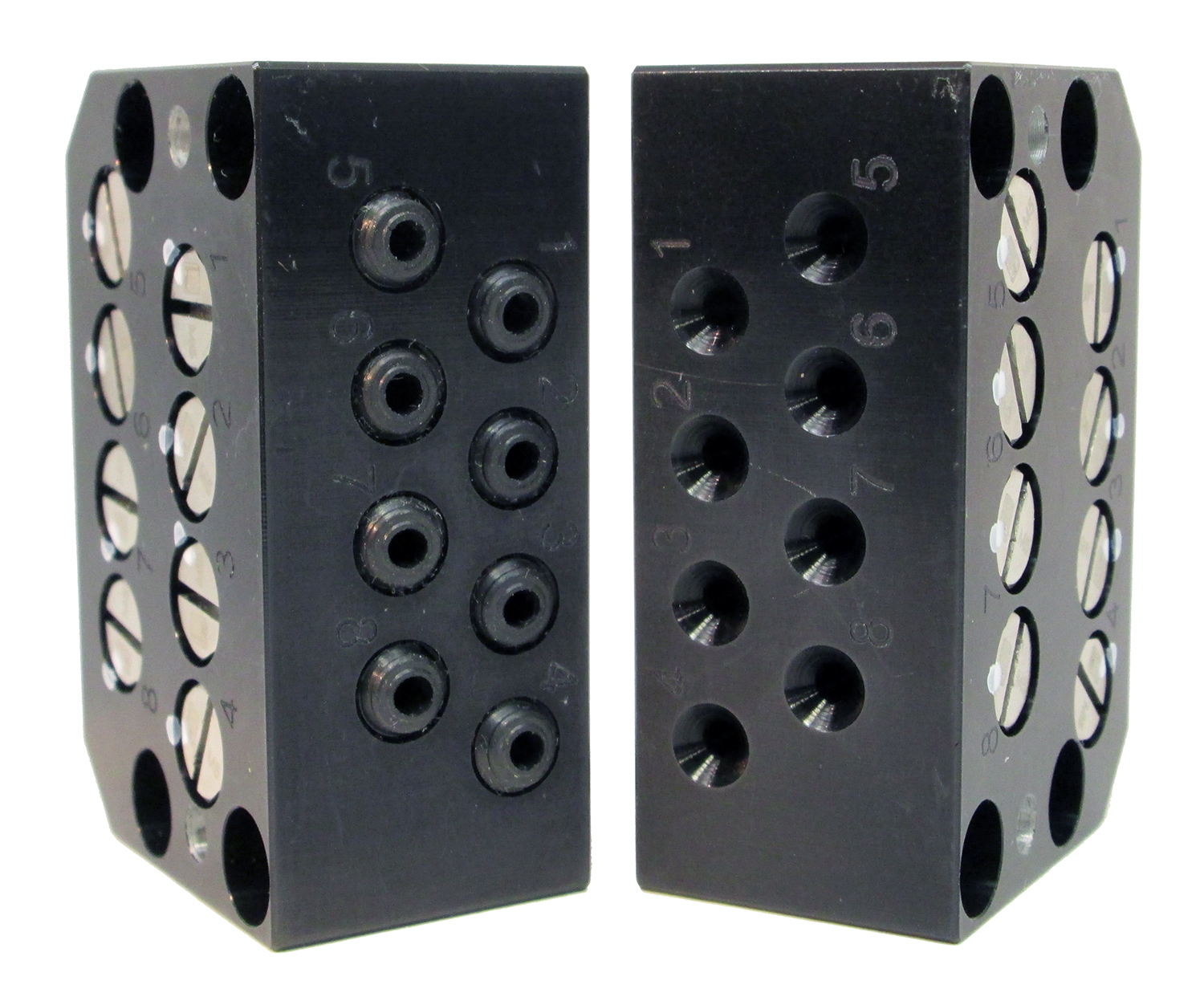

Pneumatic Module with (8) M5 radial/axial pass-through air ports |
|
Cv Rating: |
.0726 - Thru
.0695 - 90 degree
.0687 - U-Turn |
|
Weight: |
Master 0.36 lbs (0.16 kg)
Tool 0.37 lbs (0.17 kg) |
|
Materials: |
- Aluminum housing
- Stainless steel sealing plugs
- Nitrile seals.
|
|
Operational Temperature Range: |
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
