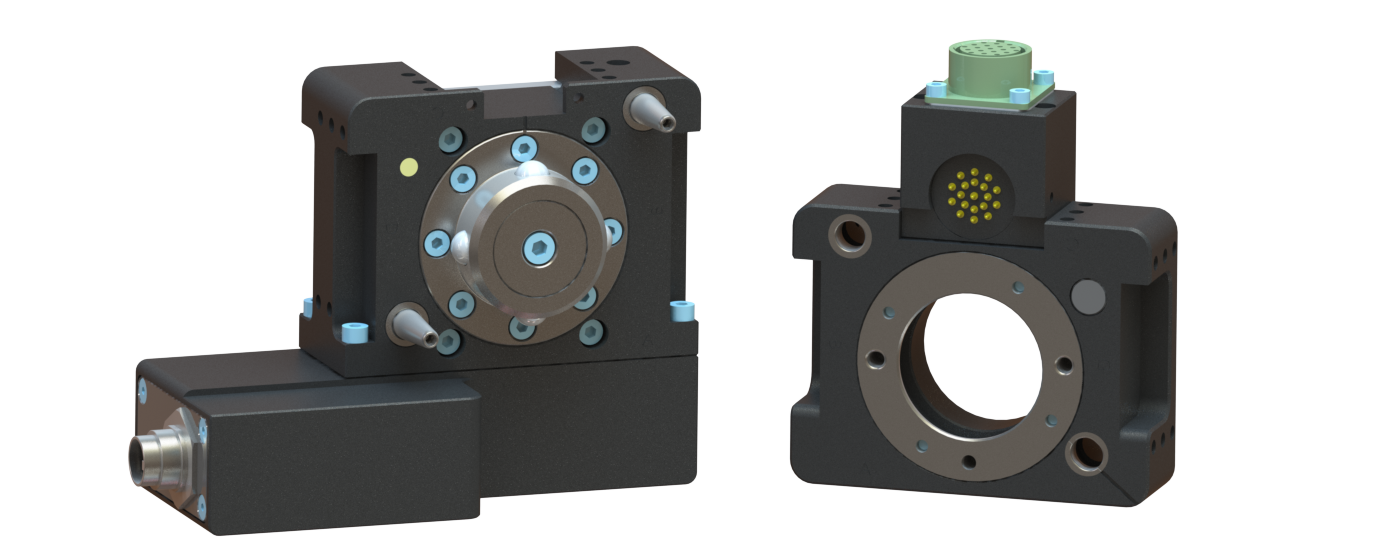

Suggested Payload Limit: |
40 lb |
|
Static Moment Capacity (X & Y): |
500 lbf-in |
|
Static Moment Capacity (Z): |
690 lbf-in |
|
Positional Repeatability - (X, Y, & Z): |
0,0006 in |
|
Weight - when coupled: |
4,02 lb |
|
| 9230-20-7830.pdf |
QC-18 Electric Tool Changer with 2387 Module and K19 Drawing
|
| 9630-20-018.pdf |
QC-18 Tool Changer Drawing
|
|
| 9620-20-B-18 Electric Tool Changer.pdf |
QC-18 Electric Tool Changer Manual Module
|
|
|
Control and Signal Modules
| G5 | DeviceNet Pass-through Modules | | 19-pin, 3 Amp/250VAC Electrical Module with 5-pin DeviceNet Connector and 5-position Swivel | Flats B, C, D | No |
| GBX | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | 10 Gigabit Ethernet Pass-Through Module, M12 X-coded | Flats B, C, and D | No |
| RD5 | DeviceNet Pass-through Modules | | 4 Amp/250VAC electrical module with 5-pin M12 connector | Flats B, C, D | No |
|
Electrical Modules
| D15 | Electrical Modules | | 15-pin, 3 Amp/50VAC electrical module with low-power D-sub connector | Flat C | No |
| D25 | Electrical Modules | | 25-pin, 3 Amp/50VAC electrical module with low-power D-sub connector | Flats B, C, D | No |
| G10 | Electrical Modules | | 19-pin (10 available to the customer), 3 Amp/250VAC, MS miniature MS quick-disconnect connector with 0-99 Tool-ID built inside and 5 position swivel - Tool side only | Flats B, C, D | No |
| G12 Family | Electrical Modules | | G-Style Adjustable module with M12, 12-pole connector supporting 16 (0-F) Tool ID. | Flats B, C, D | No |
| G14 | Electrical Modules | | 19-pin (14 available to the customer), 3 Amp/250VAC, MS miniature MS quick-disconnect connector with 0-15 Tool-ID built inside and 5 position swivel - Tool side only | Flats B, C, D | No |
| G19 | Electrical Modules | | 19-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector and five position swivel | Flats B, C, D | No |
| G26 Family | Electrical Modules | | 26-pin Electrical Module, 3 Amp/250VAC, MS miniature quick disconnect connector and five position swivel | Flats B, C, D | No |
| GF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC electrical module with M16-style quick-disconnect connector and five position swivel | Flats B, C, D | No |
| K12 | Electrical Modules | | 12-pin, 2 Amp/50VDC electrical module with 12 mm Industrial Connector, sealed and No-Touch | Flat C | No |
| K14M8A Family (Tools) | Electrical Modules | M | Electrical Module with Junction Box with 4 to 6 M8, 3- and 4-Pin Connectors. | Flat C | No |
| K19 Family | Electrical Modules | | 19-pin, 3 Amp/50VDC electrical module with miniature MS quick-disconnect connector, sealed and No-Touch | Flat C | No |
| K21 | Electrical Modules | | 26-pin (21 pins available for customer use), 3 Amp/50VDC, miniature MS quick-disconnect connector with 16 Tool-IDs (Tool side only) | Flat C | No |
| K26 Family | Electrical Modules | | 26-pin, 3 Amp/50VDC electrical module with miniature MS quick-disconnect connector, sealed and No-Touch | Flat C | No |
| K5-M,K0-T | Electrical Modules | | Low Profile Electrical Module with 0-9 Tool-ID and M8 Pigtail Connector | Flat C | No |
| KF14 | Electrical Modules | | 19-pin (14 pins available for customer use), 3A/50VDC, M16 connector with 16 Tool-ID (Tool side only) | Flat C | No |
| KF19 Family | Electrical Modules | | 19-pin, 3 Amp/50VDC electrical module with M16-style connector | Flat C | No |
| KF19H-M,KF19-T | Electrical Modules | | (1) 19-pin Turck connector and (2) 3-pin Pico connectors Electrical Module, 3 Amp/50VDC | Flat C | No |
| R10 | Electrical Modules | | 19-pin (10 available for customer use - See pinout drawing), 5 Amp/250VAC (R19) electric module with (0-99) Tool-ID (Tool side only) (See also R19 Family webpage) | Flats B, C, D | No |
| R14 | Electrical Modules | T | 19-pin (14 available for customer use - See pinout drawing), 5 Amp/250VAC (R19) electrical module with (0-9) Tool-ID (Tool side only) (See also R19 Family webpage) | Flats B, C, D | No |
| R17 | Electrical Modules | | 26-pin (17 available for customer use - See pinout drawing), 3 Amp/250VAC (R26) electrical module with (0-99) Tool-ID (Tool side only) (See also R26 Family webpage) | Flats B, C, D | No |
| R19 Family | Electrical Modules | | 19-pin, 5 Amp/250VAC electrical module with miniature MS quick-disconnect connector | Flats B, C, D | No |
| R21 | Electrical Modules | T | 26-pin (21 available for customer use - See pinout drawing), 3 Amp/250VAC (R26) electrical module with (0-9) Tool-ID (Tool side only) (See also R26 Family webpage) | Flats B, C, D | No |
| R26 Family | Electrical Modules | | 26-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector | Flats B, C, D | No |
| R32 Family | Electrical Modules | | 32-pin, 3 Amp/250VAC with 36-pin MS quick-disconnect connector | Flats B, C, D | No |
| RF14 | Electrical Modules | | 19-pin (14 available for customer use - See pinout drawing), 3 Amp/125VAC (RF19) electrical module with (0-9) Tool-ID (Tool side only) (See also RF19 Family webpage) | Flats B, C, D | No |
| RF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC electrical module with M16-style quick-disconnect connector | Flats B, C, D | No |
| RF4A | Electrical Modules | | RF4A Electrical Module Assembly with 4-Pin Minifast Connector and High Power Pin Block | Flats B, C, D | No |
| RF5 | Electrical Modules | | Electrical Module Assembly, 5-Pin Minifast Connector, High Power Pin Block | Flats B, C, D | No |
| RK12 | Electrical Modules | | Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC, Signal 2 Amps/30V | Flats B, C, D | No |
| RK19 | Electrical Modules | | RK19 Electrical Module with M23, 19-Pin Connector, 3 Amps/150 VAC | Flats B, C, D | No |
| RU10 | Electrical Modules | | 10-pin, 5 Amp/250VAC Electrical Module with with a single USB 2.0 connector | Flats B, C, D | No |
| S14 | Electrical Modules | | 19-pin (14 available for customer use - See pinout drawing), 5 Amp/250VAC (S19) electrical module with (0-9) Tool ID (Tool side only) (See also S19 Family webpage) | Flats B, C, D | No |
| S19 Family | Electrical Modules | | 19-pin, 5 Amp/250VAC inline electrical module with miniature MS quick-disconnect connector | Flats B, C, D | No |
| S26 | Electrical Modules | | 26-pin, 3 Amp/250VAC inline electrical module with miniature MS quick-disconnect connector | Flats B, C, D | No |
| SF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC inline electrical module with M16-style quick-disconnect connector | Flats B, C, D | No |
| TMB | Electrical Modules | | Pass-through Electrical Module for Multibus signals using a 17-pin M23 connector | Flats B, C, D | No |
| X7B | Electrical Modules | | Coax cable module, single contact, BNC connector | Flats B, C, D | No |
| X7C | Electrical Modules | | High Voltage Module for Ultrasonic Weld Applications, SHV connector | Flats B, C, D | No |
| X7G | Electrical Modules | | High Voltage Module for Ultrasonic Weld Applications, Isolated SHV Connector | Flats B, C, D | No |
| XG7GL | Electrical Modules | | Ultrasonic Module with Lemo connector for Ultrasonic Weld Applications, Adapted for G-Series Swivel Housing | Flats B, C, D | No |
|
|
|
Other Modules
| GBXC | Tool Cover Modules | | Tool Side Protective Cover for GBX Modules – Tool side only | Flats B, C, and D | No |
|
|
|
Servo Modules
| RES10B | Servo Modules | | Servo Signal Module with 12-pole, M23 Connector, STP Wiring | | No |
| RES17 | Servo Modules | | Servo Signal Module with 17-pole, M23 connector | | No |
|
|
| QC-18 Master |
QC-18 Master
|
| QC-18 Tool |
QC-18 Tool
|
|
Tool Stand Mounting Options
Click
here
for a complete list of Tool Stand information and components.
|
|
Option Name: |
TSS Vertical Tooling Interface Plate - J16 Pattern - Notched |
|
Part Number: |
9120-TSS-VBQ-8206 |
|
Description: |
TSS Pin & Bushing Vertical Tooling Interface plate w/J16 Pattern - notched |
|
|
Mounting Modules: |
9120-TSS-MMB-7130 |
|
Sensor Module: |
Carrier (9120-TSS-SM-3315) included with Mounting Module. Sensor ordered separately. |
|
Customer Drawings:
Notes:
- Check for possible port fitting interference.
- Protrudes above coupling surface; pay attention to Master side clearance during Tool pick/drop.
- Optional Prox Sensor available - see 9120-TSS-SM-3315.
- Mounts to Flats B or C only on QC-18.
|
|
|
|
|
Option Name: |
Mounting Module, Wide |
|
Part Number: |
9120-TSS-MMB-7130 |
|
Description: |
TSS and Manual Coupler Mounting Module |
|
|
Sensor Module: |
Carrier (9120-TSS-SM-3315) included with Mounting Module. Sensor ordered separately. |
|
Customer Drawings:
Notes:
- Mounts to: 9120-TSS-PM, 9120-TSM-PM, and 9120-TSM-HM (don't use with 9120-TSS-HM).
- Optional Prox Sensor available - see 9120-TSS-SM-3315.
- When using QC-40, 40Q, 40 Euro, and 41, mount 9120-TSM-MMB-7130 to 9120-TSM-PM-xxxx and 9120-TSM-HM-xxxx hardware only.
|
|
|
|
