Suggested Payload Limit: |
80 lb |
|
Static Moment Capacity (X & Y): |
1000 lbf-in |
|
Static Moment Capacity (Z): |
1500 lbf-in |
|
Weight - when coupled: |
3,85 lb |
|
Pneumatic Pass-through Ports (qty) Size: |
(6) 1/8 NPT |
|
| 9630-20-MC36R.pdf |
MC-36R Manual Tool Changer Drawing
|
| 9630-20-MC36R-NP.pdf |
MC-036R Manual Tool Changer, Ports Removed Drawing
|
|
|
Control and Signal Modules
| G5 | DeviceNet Pass-through Modules | | 19-pin, 3 Amp/250VAC Electrical Module with 5-pin DeviceNet Connector and 5-position Swivel | Flats A, B | No |
| GB8 Family | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet modules supporting Gigabit speeds, X- and A-Coded Connectors | Flats A, B | No |
| GBX | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | 10 Gigabit Ethernet Pass-Through Module, M12 X-coded | Flats A and B | No |
| KE7 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | K-style Ethernet (M12, 4-Pin D-Coded Receptacle) and Power (M8, 3-Pin Receptacle) Electrical Module | Flats A, B | No |
| KE8 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | K Style Ethernet (M12 4-Pin D-Coded Receptacle) and Power (M8 4-Pin Male Receptacle) Electrical Module | Flats A, B | No |
| RD5 | DeviceNet Pass-through Modules | | 4 Amp/250VAC electrical module with 5-pin M12 connector | Flats A, B | No |
| RE10 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | 10/100 CAT5e Ethernet Pass-through Module | Flats A, B | No |
| RE5 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet Pass-through Module with 4-pins and Shield | Flats A, B | No |
| RE8 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet Pass-through Module with 8-pins and Shield | Flats A, B | No |
| RP5 | Discrete Pass-through Modules | | Discrete PROFIBUS Pass-Through Module with B-coded M12 Connector | Flats A, B | No |
| S5EPD | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet Module with Viton Seals, Potted | Flats A, B | No |
| TD | DeviceNet Pass-through Modules | | 10-pin, 5 Amp/24V, pass-through DeviceNet and Aux power module | Flats A, B | No |
| TDEA | DeviceNet Pass-through Modules | | DeviceNet Pass-Through Module with M12 Connectors Redundant Signals | Flats A, B | No |
| TE | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet Pass-through Module with connectors for Ethernet and Aux Power | Flats A, B | No |
| TES | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | Ethernet Pass-through Module with connectors for Ethernet and Aux Power, Axial orientation. Straight connectors on Tool side. | Flats A, B | No |
| TP | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | PROFINET Pass-through Module with connectors for PROFINET and Aux Power, 5-Pin Aux Power | Flats A, B | No |
|
Electrical Modules
| D15 | Electrical Modules | | 15-pin, 3 Amp/50VAC electrical module with low-power D-sub connector | Flats A, B | No |
| D25 | Electrical Modules | | 25-pin, 3 Amp/50VAC electrical module with low-power D-sub connector | Flats A, B | No |
| G10 | Electrical Modules | | 19-pin (10 available to the customer), 3 Amp/250VAC, MS miniature MS quick-disconnect connector with 0-99 Tool-ID built inside and 5 position swivel - Tool side only | Flats A, B | No |
| G12 Family | Electrical Modules | | G-Style Adjustable module with M12, 12-pole connector supporting 16 (0-F) Tool ID. | Flats A, B | No |
| G14 | Electrical Modules | | 19-pin (14 available to the customer), 3 Amp/250VAC, MS miniature MS quick-disconnect connector with 0-15 Tool-ID built inside and 5 position swivel - Tool side only | Flats A, B | No |
| G19 | Electrical Modules | | 19-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector and five position swivel | Flats A, B | No |
| G26 Family | Electrical Modules | | 26-pin Electrical Module, 3 Amp/250VAC, MS miniature quick disconnect connector and five position swivel | Flats A, B | No |
| GD4 | Electrical Modules | | Electrical Module with and with 5-position adjustable M12 4-Pin Connector | Flats A, B | No |
| GF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC electrical module with M16-style quick-disconnect connector and five position swivel | Flats A, B | No |
| J16 | Electrical Modules | | 16-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector | Flats A, B | No |
| K12 | Electrical Modules | T | 12-pin, 2 Amp/50VDC electrical module with 12 mm Industrial Connector, sealed and No-Touch | Flats A, B | No |
| K14M8A Family (Tools) | Electrical Modules | M | Electrical Module with Junction Box with 4 to 6 M8, 3- and 4-Pin Connectors. | Flats A, B | No |
| K19 Family | Electrical Modules | | 19-pin, 3 Amp/50VDC electrical module with miniature MS quick-disconnect connector, sealed and No-Touch | Flats A, B | No |
| K21 | Electrical Modules | | 26-pin (21 pins available for customer use), 3 Amp/50VDC, miniature MS quick-disconnect connector with 16 Tool-IDs (Tool side only) | Flats A, B | No |
| K26 Family | Electrical Modules | | 26-pin, 3 Amp/50VDC electrical module with miniature MS quick-disconnect connector, sealed and No-Touch | Flats A, B | No |
| K45 | Electrical Modules | | K19 electrical module (19 pins right side) and K26 electrical module (26 pins left side) when facing connectors mounted side-by-side on adapter plate | Flats A, B | Yes |
| K5-M,K0-T | Electrical Modules | | Low Profile Electrical Module with 0-9 Tool-ID and M8 Pigtail Connector | Flats A, B | No |
| KF14 | Electrical Modules | T | 19-pin (14 pins available for customer use), 3A/50VDC, M16 connector with 16 Tool-ID (Tool side only) | Flats A, B | No |
| KF19 Family | Electrical Modules | | 19-pin, 3 Amp/50VDC electrical module with M16-style connector | Flats A, B | No |
| KM14 | Electrical Modules | | 14-pin (12 pins at 5 Amp/250VAC and 2 pins at 13 Amp/250VAC) electrical module | Flats A, B | No |
| MT14A-M and MT14-T, MTR14-M and MTR14-T | Electrical Modules | M | 14-pin, 13 Amp/500VAC/700VDC electrical module. Also available with Modified version with Amphenol connector relocated to mount with connector flange parallel to mounting flat | Flats A, B | No |
| MT8 Family | Electrical Modules | | 8-pin, 20 Amp, 500VAC/700 VDC Electrical Module | Flats A, B | No |
| R10 | Electrical Modules | | 19-pin (10 available for customer use - See pinout drawing), 5 Amp/250VAC (R19) electric module with (0-99) Tool-ID (Tool side only) (See also R19 Family webpage) | Flats A, B | No |
| R12 | Electrical Modules | | 12-pin pass-thru module with an M12, 12-pin connector, supports Coherix predator 3D camera power/IO | Flats A, B | No |
| R14 | Electrical Modules | T | 19-pin (14 available for customer use - See pinout drawing), 5 Amp/250VAC (R19) electrical module with (0-9) Tool-ID (Tool side only) (See also R19 Family webpage) | Flats A, B | No |
| R17 | Electrical Modules | T | 26-pin (17 available for customer use - See pinout drawing), 3 Amp/250VAC (R26) electrical module with (0-99) Tool-ID (Tool side only) (See also R26 Family webpage) | Flats A, B | No |
| R19 Family | Electrical Modules | | 19-pin, 5 Amp/250VAC electrical module with miniature MS quick-disconnect connector | Flats A, B | No |
| R21 | Electrical Modules | | 26-pin (21 available for customer use - See pinout drawing), 3 Amp/250VAC (R26) electrical module with (0-9) Tool-ID (Tool side only) (See also R26 Family webpage) | Flats A, B | No |
| R24R-M,R24-T | Electrical Modules | | Electrical Module with Right Angle Cables and Pigtail Mil-spec 24-Pin Connector | Flats A, B | No |
| R26 Family | Electrical Modules | | 26-pin, 3 Amp/250VAC electrical module with miniature MS quick-disconnect connector | Flats A, B | No |
| R32 Family | Electrical Modules | | 32-pin, 3 Amp/250VAC with 36-pin MS quick-disconnect connector | Flats A, B | No |
| R3-M,S3-T | Electrical Modules | | 4 Amp/250VAC Electrical Module with 3-pin Turck RSFL36 Minifast Connector | Flats A, B | No |
| R4 | Electrical Modules | | 4 Amp/250VAC Electrical Module with 4-pin Eurofast connector | Flats A, B | No |
| RF14 | Electrical Modules | | 19-pin (14 available for customer use - See pinout drawing), 3 Amp/125VAC (RF19) electrical module with (0-9) Tool-ID (Tool side only) (See also RF19 Family webpage) | Flats A, B | No |
| RF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC electrical module with M16-style quick-disconnect connector | Flats A, B | No |
| RF26PD Family | Electrical Modules | | 26-pin, 3 Amp/150VAC potted electrical module with M27 threaded connector | Flats A, B | No |
| RF4A | Electrical Modules | | RF4A Electrical Module Assembly with 4-Pin Minifast Connector and High Power Pin Block | Flats A, B | No |
| RF5 | Electrical Modules | | Electrical Module Assembly, 5-Pin Minifast Connector, High Power Pin Block | Flats A, B | No |
| RF6A | Electrical Modules | | Electrical Module Assembly, 6-Pin Minifast Connector, High Power Pin Block | Flats A, B | No |
| RJ219 | Electrical Modules | | Electrical Module with Junction Box with (2) M12, 5-Pin Connectors | Flats A, B | No |
| RK12 | Electrical Modules | | Electrical Module with 12-pin pass-through, 12-Pin M23 connector, Power 5 Amps/150VDC, Signal 2 Amps/30V | Flats A, B | No |
| RK17 | Electrical Modules | | Electrical Module with 17-pin pass-through, 3 Amp/125VAC, 17-Pin M23 connector | Flats A, B | No |
| RK19 | Electrical Modules | | RK19 Electrical Module with M23, 19-Pin Connector, 3 Amps/150 VAC | Flats A, B | No |
| RL5 | Electrical Modules | | High Power Electrical Module with 5-pole, M12 L-Coded Connector supporting up to 63V/16A. | Flats A, B | No |
| RM19 | Electrical Modules | | 19-pin, 3 Amp/125VAC electrical module with M16-style quick-disconnect connector | Flats A, B | No |
| RN5 | Electrical Modules | | R-Style Power Module, 13 Amps/30VDC | Flats A, B | No |
| RU10 | Electrical Modules | | 10-pin, 5 Amp/250VAC Electrical Module with with a single USB 2.0 connector | Flats A, B | No |
| S14 | Electrical Modules | T | 19-pin (14 available for customer use - See pinout drawing), 5 Amp/250VAC (S19) electrical module with (0-9) Tool ID (Tool side only) (See also S19 Family webpage) | Flats A, B | No |
| S19 Family | Electrical Modules | | 19-pin, 5 Amp/250VAC inline electrical module with miniature MS quick-disconnect connector | Flats A, B | No |
| S26 | Electrical Modules | | 26-pin, 3 Amp/250VAC inline electrical module with miniature MS quick-disconnect connector | Flats A, B | No |
| SF19 Family | Electrical Modules | | 19-pin, 3 Amp/125VAC inline electrical module with M16-style quick-disconnect connector | Flats A, B | No |
| SM19 | Electrical Modules | | 19-pin, 3 Amp/125VAC inline electrical module with M16-style quick-disconnect connector | Flats A, B | No |
| T19 Family | Electrical Modules | | 19-pin, 5 Amp/250VAC Electrical Module with MS cylindrical threaded connector | Flats A, B | No |
| TMB | Electrical Modules | | Pass-through Electrical Module for Multibus signals using a 17-pin M23 connector | Flats A, B | No |
| X7B | Electrical Modules | | Coax cable module, single contact, BNC connector | Flats A, B | No |
| X7C | Electrical Modules | | High Voltage Module for Ultrasonic Weld Applications, SHV connector | Flats A, B | No |
| X7E | Electrical Modules | | 4-Connector COAX Module Rated for Video and Low-power, J16 Pattern Mountable | Flats A, B | No |
| X7G | Electrical Modules | | High Voltage Module for Ultrasonic Weld Applications, Isolated SHV Connector | Flats A, B | No |
| X7SC | Electrical Modules | | Triax Cable Module with Straight Bulkhead Jack Connector | Flats A, B | No |
| XG7GL | Electrical Modules | | Ultrasonic Module with Lemo connector for Ultrasonic Weld Applications, Adapted for G-Series Swivel Housing | Flats A, B | No |
|
High-Current Modules
| PG3 | High-Current Modules | | High Current Module with Ring Terminal Bases, Single Contact, 200 Amp | Flats A, B | No |
|
Other Modules
| GBXC | Tool Cover Modules | | Tool Side Protective Cover for GBX Modules – Tool side only | Flats A and B | No |
| JL2 | Adapter Assemblies | | Adapter Plate Assembly with J16 Mounting Pattern to Mount ER Servo Modules | Flats A, B | No |
| JPC | Other Modules | | Tool Side Protective Cover for G, M, R, S, and T Series Modules Drawing | Flats A, B | No |
|
Pneumatic and Fluid Modules
| AN2A-M,AN2AU-T | Air Modules | | (2) 3/8 NPT self-sealing ports (Master side), (2) 3/8 NPT pass-through ports (Tool side), Air Only Module | Flats A, B - Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FG2 | Fluid/Air Module | | (2) G 3/8 (BSPP) self-sealing ports fluid/air module, stainless steel (replaces F02-E) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FG2-M,FG2A-T | Air Modules | T | (2) G 3/8 (BSPP) pass-through ports pneumatic module, stainless steel (Tool side only) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FG4 | Fluid/Air Module | | (4) G 3/8 (BSPP) self-sealing ports fluid/air module, stainless steel (Replaces F04-E) | Flats A, B;;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FG4A | Air Modules | T | (4) G 3/8 (BSPP) pass-through ports pneumatic module, stainless steel (Tool side only) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FN2 | Fluid/Air Module | | (2) 3/8 NPT self-sealing ports fluid/air module, stainless steel (replaces F02-N) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FN4 | Fluid/Air Module | | (4) 3/8 NPT self-sealing ports fluid/air module, stainless steel (replaces F04-N) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| FN4A | Air Modules | T | (4) 3/8 NPT pass-through ports pneumatic module, stainless steel (Tool side only) (Replaces F04A) | Flats A, B;Apps Approval;Line pressure must be removed prior to coupling/uncoupling. Checked fluid/air modules require extra force to properly couple. | No |
| P05 | Air Modules | | (10) M5 ports for pneumatic pass-through | Flats A, B | No |
| P16M5 | Air Modules | | Pneumatic Module with (16) M5 radial/axial pass-through air ports | Flats A, B | No |
| P18,P18-E | Air Modules | | (4) 1/8 NPT or G 1/8 (BSPP) pass-through ports pneumatic module | Flats A, B | No |
| P186,P186-E | Air Modules | | (6) 1/8 NPT or G 1/8 (BSPP) Pass-through Ports Pneumatic Module | Flats A, B | No |
| P186A,P186A-E | Air Modules | | (6) 1/8 NPT or G 1/8 (BSPP) pass-through ports pneumatic module (Air or Vacuum service) Ported axially. | Flats A, B | No |
| P188-E | Air Modules | | Pneumatic Module with (8) G 1/8 (BSPP) Ports | Flats A, B | No |
| P8M5 | Air Modules | | Pneumatic Module with (8) M5 radial/axial pass-through air ports | Flats A, B | No |
| V200A | Vacuum/Air Modules | M | Vacuum Pass-through Module with (1) 2" NPT port, M19 pattern | Flats A, B | Yes |
| V200A | Vacuum/Air Modules | T | Vacuum Pass-through Module with (1) 2" NPT port, M19 pattern | Flats A, B | Yes |
| V200E | Vacuum/Air Modules | M | Vacuum Modules with G (BSPP) Pass-through Ports, M19 Pattern, Euro Version
- Master-side Module - (1) 2" Pass-through Port
- Tool-side Module - (1) 2" Pass-through Port | Flats A, B | Yes |
| V200E | Vacuum/Air Modules | T | Vacuum Modules with G (BSPP) Pass-through Ports, M19 Pattern, Euro Version
- Master-side Module - (1) 2" Pass-through Port
- Tool-side Module - (1) 2" Pass-through Port | Flats A, B | Yes |
| V34 | Vacuum/Air Modules | | (1) G 3/4 (BSPP) pass-through port vacuum only module | Flats A, B | No |
|
Servo Modules
| REP10 | Servo Modules | | Servo Power Module with 9-pin M23 connector | Flats A, B | No |
| REP6 | Servo Modules | | Servo Module with Intercontec 6-Pin M23 Connector | Flats A, B | No |
| REP7 | Servo Modules | | Servo Module with 4-pin MS Power Connector, 3-pin MS Brake | Flats A, B | No |
| RES10 | Servo Modules | | Servo Signal Module with 10-pin JAE connector | Flats A, B | No |
|
|
| 9122-036T-000-000 |

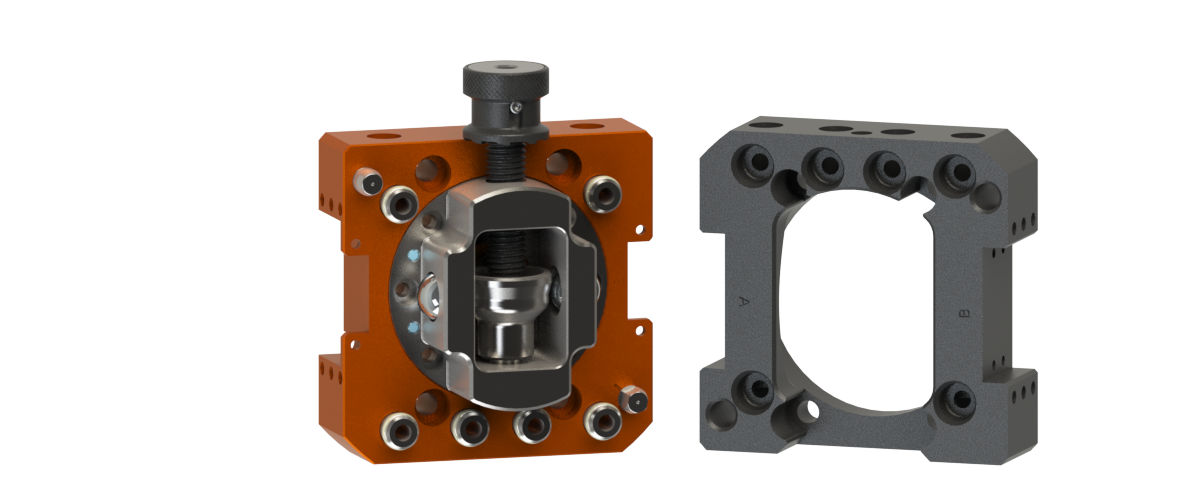

MC-36 Manual Tool Changer Tool Side
|
| 9122-036RM-000-000 |
MC-36R Manual Tool Changer Master Side
|
|
Tool Stand Mounting Options
Click
here
for a complete list of Tool Stand information and components.
|
|
