ATI Industrial Automation: F/T Sensor Mini45

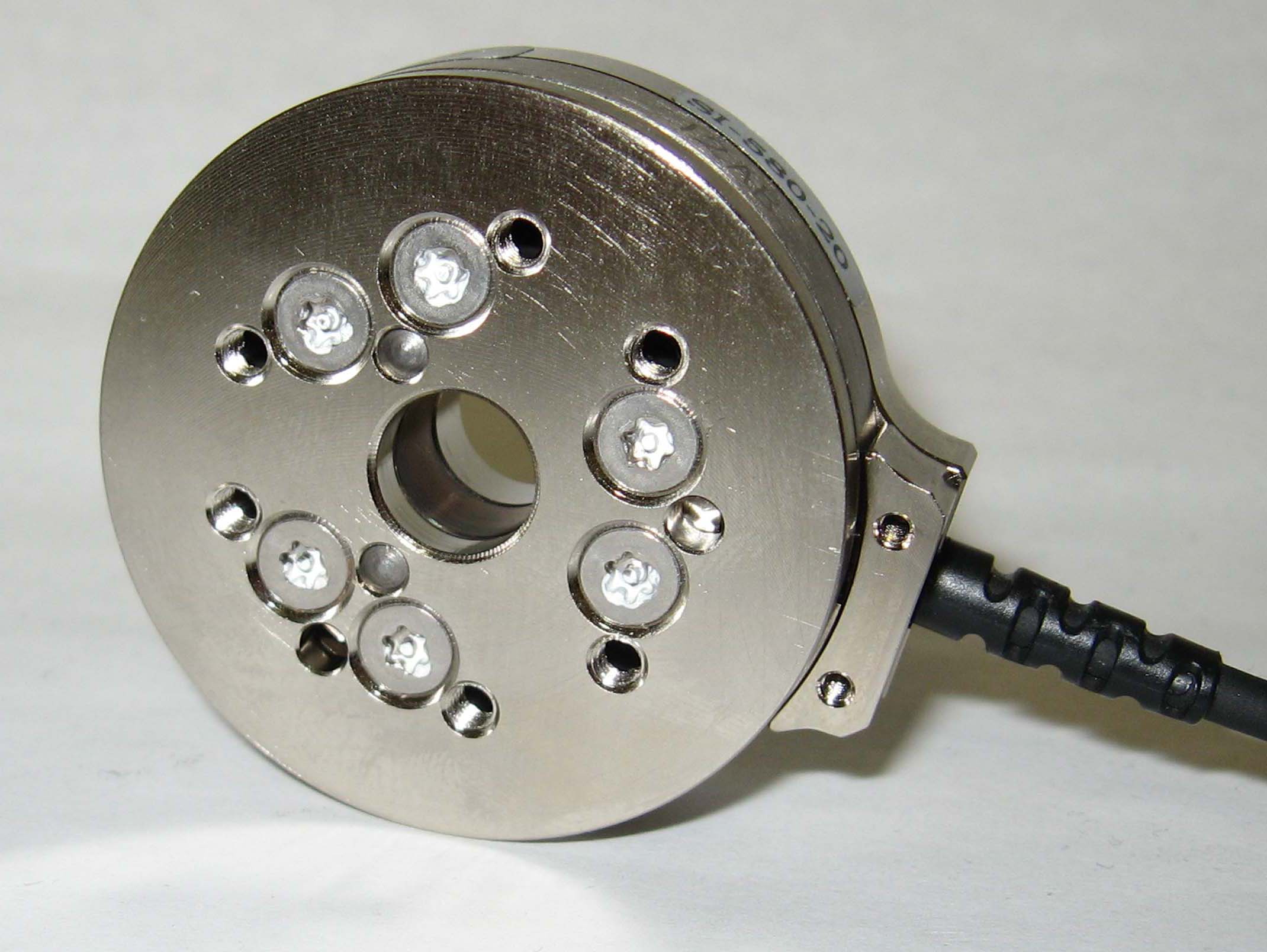

The Mini45 has a compact, low-profile design with high capacity and a through-hole to allow passage of linkages or cables.
Extremely-High Strength: EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 5.7 to 25.3 times rated capacities.
High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.
Industrial Strain Relief Version Available: E-exit strain relieved version of this transducer is available and offers resistance to a 10 lb cable pull force. E-exit is offered in axial, radial, and right-angle configurations.
IP65 and IP68 (10m) Versions Available: The IP65 version of the transducer is protected against water spray. The IP68 version is submergible in fresh water to a depth of 10 meters.

Typical Applications

Telerobotics
Robotic surgery
Robotic-hand research
Finger-force research

Mini45-E Transducer

Select a system type. (For more information on system types, please see our F/T Product Description page.)

16-Bit DAQ, ECAT, Net, TWE or WNet F/T System

Controller F/T System

Standard Calibrations (US)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
US-30-40	30 lbf	60 lbf	40 lbf-in	40 lbf-in	1/80 lbf	1/80 lbf	1/88 lbf-in	1/176 lbf-in
US-60-80	60 lbf	120 lbf	80 lbf-in	80 lbf-in	1/40 lbf	1/40 lbf	1/44 lbf-in	1/88 lbf-in
US-120-160	120 lbf	240 lbf	160 lbf-in	160 lbf-in	1/20 lbf	1/20 lbf	1/22 lbf-in	1/44 lbf-in
	SENSING RANGES				RESOLUTION

View Standard (US) Complex Loading Graph

Metric Calibrations (SI)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
SI-145-5	145 N	290 N	5 Nm	5 Nm	1/16 N	1/16 N	1/752 Nm	1/1504 Nm
SI-290-10	290 N	580 N	10 Nm	10 Nm	1/8 N	1/8 N	1/376 Nm	1/752 Nm
SI-580-20	580 N	1160 N	20 Nm	20 Nm	1/4 N	1/4 N	1/188 Nm	1/376 Nm
	SENSING RANGES				RESOLUTION

View Metric (SI) Complex Loading Graph

*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.

Contact your sales representative for accuracy information.

US (Standard)

SI (Metric)

Single-Axis Overload
Fxy	ｱ5100 N
Fz	ｱ10000 N
Txy	ｱ110 Nm
Tz	ｱ140 Nm
Stiffness (Calculated)
X-axis & Y-axis forces (Kx, Ky)	7.4x10⁷ N/m
Z-axis force (Kz)	9.8x10⁷ N/m
X-axis & Y-axis torque (Ktx, Kty)	1.7x10⁴ Nm/rad
Z-axis torque (Ktz)	3.5x10⁴ Nm/rad
Resonant Frequency
Fx, Fy, Tz	5600 Hz
Fz, Tx, Ty	5400 Hz
Physical Specifications
Weight*	0.0917 kg
Diameter*	45 mm
Height*	15.7 mm

* Specifications include standard interface plates.
