F/T Sensor: Mini43LP


Skip Navigation Linksホーム > 製品 > 力/トルクセンサ > F/Tのモデル > Mini43LP



Product Advantages
  • The Mini43LP has a compact, extremely thin design with a large through-hole for passage of cables and other utilities.
  • Extremely-High Strength: EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 4.4 to 17.7 times rated capacities.
  • High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.
  • Industrial Strain Relief included as a standard option to reinforce the cable and withstand more than 10 lb of pull force.

Typical Applications
  • Telerobotics
  • Robotic surgery
  • Research
  • Product testing

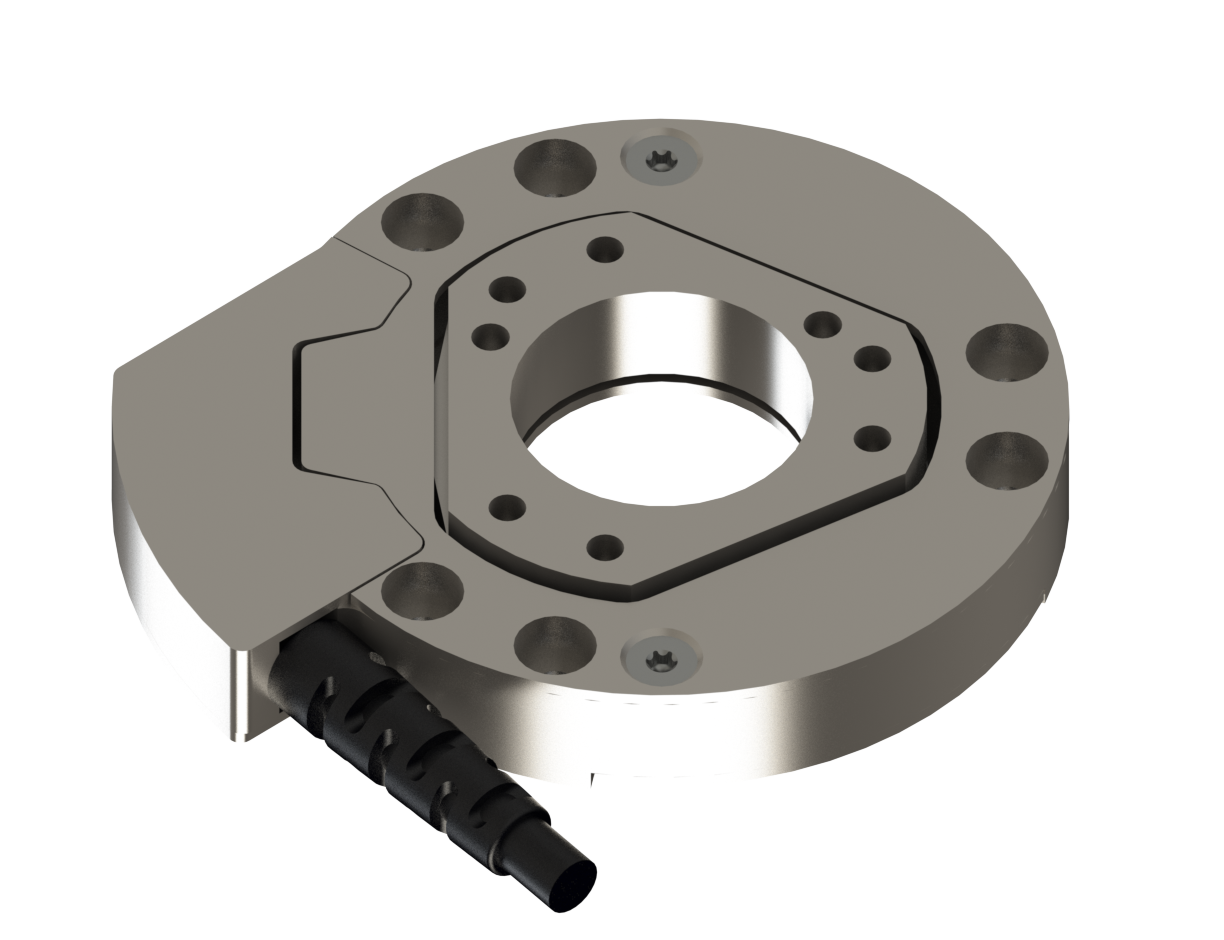

Mini43LP
Mini43LP

Ranges and ResolutionsSpecificationsDrawingsDocuments3D CAD Models


Select a system type.  (For more information on system types, please see our F/T Product Description page.)


Standard Calibrations (US)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
US-12.5-612.5 lbf12.5 lbf6 lbf-in11 lbf-in1/320 lbf1/320 lbf1/648 lbf-in1/368 lbf-in
US-25-12.525 lbf25 lbf12.5 lbf-in22 lbf-in1/160 lbf1/160 lbf1/324 lbf-in1/184 lbf-in
US-50-2550 lbf50 lbf25 lbf-in44 lbf-in1/80 lbf1/80 lbf1/162 lbf-in1/92 lbf-in
 SENSING RANGESRESOLUTION

 View Standard (US) Complex Loading Graph



Metric Calibrations (SI)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
SI-62-0.7562 N62 N0.75 Nm1.25 Nm1/64 N1/64 N1/5120 Nm1/3280 Nm
SI-125-1.5125 N125 N1.5 Nm2.5 Nm1/32 N1/32 N1/2560 Nm1/1640 Nm
SI-250-3250 N250 N3 Nm5 Nm1/16 N1/16 N1/1360 Nm1/820 Nm
 SENSING RANGESRESOLUTION

 View Metric (SI) Complex Loading Graph




  *The resolution is typical for most applications and can be improved with filtering.
 **Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
 applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.


Contact your sales representative for accuracy information.
