| 9121-UF2-M | M | Camera Kit - Consists of GB8 Electrical Module, R4 Electrical Module, and JJ14 Mounting Adapter Assembly - Master side |
| 9121-UF2-T | T | Camera Kit - Consists of GB8 Electrical Module, R4 Electrical Module, and JJ14 Mounting Adapter Assembly - Tool side |
|
|
|

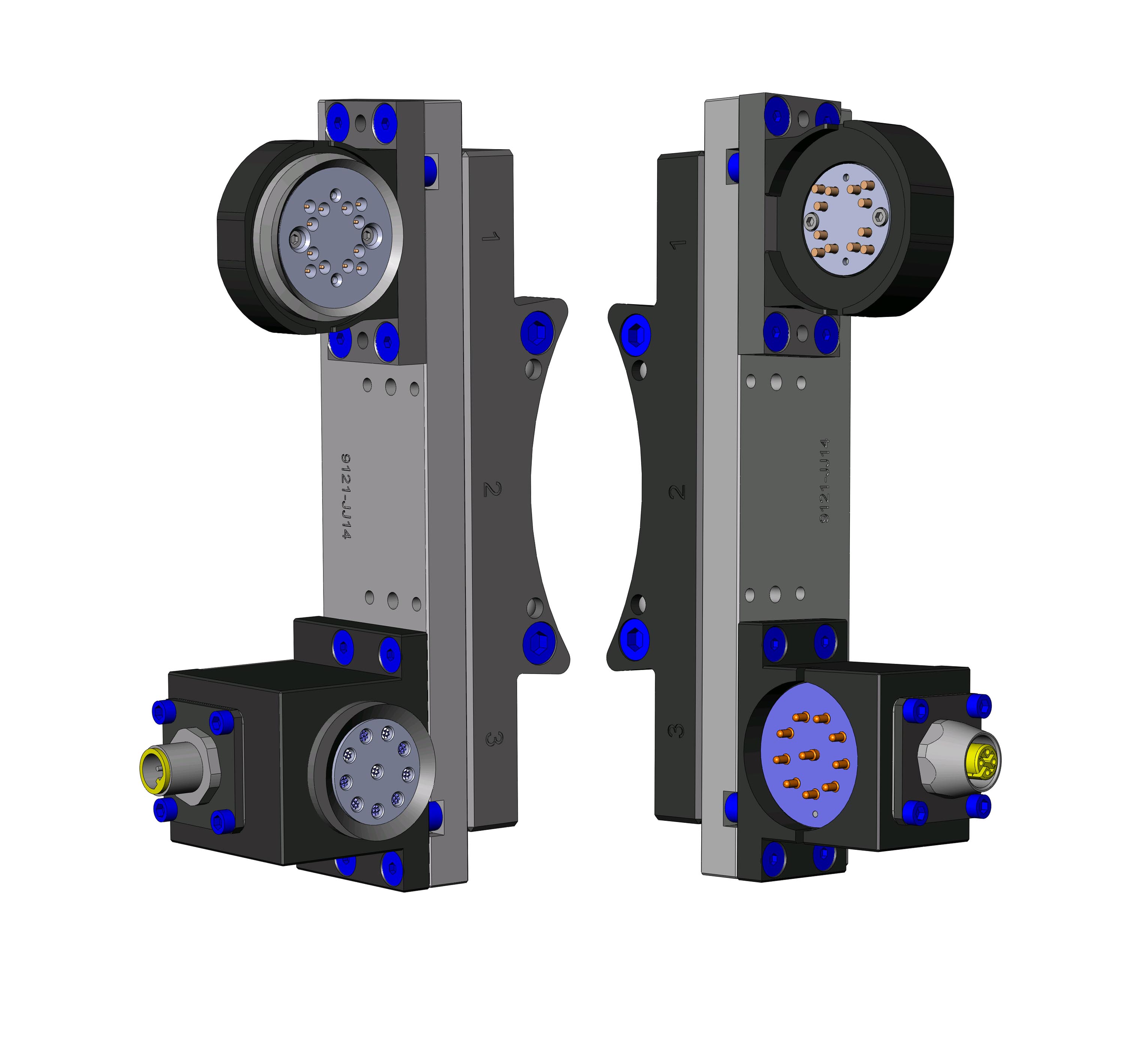

Camera Kit - Consists of GB8 Electrical Module, R4 Electrical Module, and JJ14 Mounting Adapter Assembly |
|
|
Master 1.92 lbs (0.87 kg)
Tool 1.60 lbs (0.73 kg) |
|
|
- GB8 - Aluminum housing and Delrin®.
- R4 - Nitrile seals.
- JJ14 - Aluminum adapter plate and Steel dowel pins.
|
|
|
See GB8 and R4 Electrical Module webpages. |
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9121-JJ14-M.pdf |
JJ14 Master Adapter Assembly Drawing
|
| 9630-20-R4.pdf |
R4 Module Drawing
|
| 9630-20-UF2.pdf |
UF2 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9121-UF2-M |
Camera Kit Master Side
|
| 9121-UF2-T |
Camera Kit Tool Side
|
|
|
