Robotic Deburring Tools


Skip Navigation LinksHome > Products > Robotic Deburring Tools

Deburring News:


Air-actuated compliance overcomes part variation.

Historically, deburring and material removal processes deploy manual techniques. This is largely due to the limited availability of deburring tools suited for automation. Conventional automated deburring tools exist and perform adequately along a straight line or path, but fail when part tolerances or geometries are not exact. Removing material from a part cavity or protrusion using a robot or other automated process challenges the most skilled of programmers and often leads to inconsistent quality. The Engineers at ATI have developed a family of compliant deburring tools that make automated deburring processes safe, reliable, and affordable. Pneumatic compliance built into these tools exerts a constant force and compensates for displacement. This ensures consistent results and facilitates easy programming.

What is a Robotic Deburring Tool?
A robotic deburring tool is an end-effector used to remove material from a part. ATI's Robotic Deburring Tools feature integrated compliance and excel in material removal tasks such as deburring, deflashing, edge-breaking, surface finishing, and more. These end-effectors attach to a robot wrist for process-to-part operations, or mount to a bench or fixture for part-to-process setups. ATI's Robotic Deburring Tools utilize either pneumatic- or electrical-powered motors and offer flexibility with various speed options and compliance ranges.

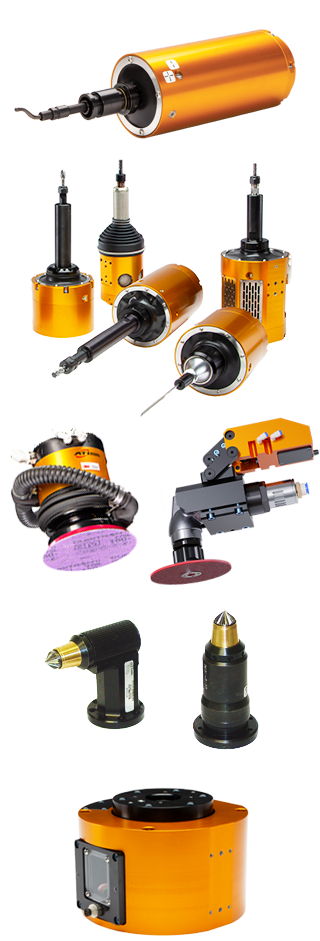

Glossary

Compliant Deburring Blade

The Compliant Deburring Blade (CDB) features a robust interface to attach blades and media commonly found in hand deburring tools. Optional Automatic Blade Changing enables hands-free changeover of cutting media. The CDB suits a variety of robotic and non-robotic operations on a wide assortment of materials such as plastic, brass, aluminum, steel, and more.

Radially-Compliant Deburring Tools

Also known as the Flexdeburr, these deburring tools are robust turbine-driven units for deburring a variety of materials with a robot or CNC machine. Radially-compliant deburring tools are especially suited for removal of parting lines or flash from parts. However, its flexible design allows it to be used in a variety of applications.

Axially-Compliant Finishing Tools

Also known as the VersaFinish, these finishing tools are robust, low-speed, high-torque air tools with an axially floating spindle, suitable for a multitude of robotic and non-robotic material finishing operations on aluminum, plastic, steel, etc.

Axially-Compliant Deburring Tools

Also known as the Speedeburr, these deburring tools utilize a vane-type motor and a floating rotary cutting file for edge-deburring and chamfering of parts using a robot.

ATI Deburring Application Sheet
