# of Integrated Ports: |
10 |
Port Size: |
G1/4 or 3/8 NPT |
Min. Force to Couple*: |
320 lbf |
Operational Temperature Range: |
-20 °F - 150 °F |
*Minimum force required to couple at 80 psi (lbs)
|
9630-20-GA2-E.pdf |
GA2 Euro Utility Coupler Drawing
|
9630-20-GA2-N.pdf |
GA2 Utility Coupler, NPT, Drawing
|
|
9620-20-B-GA2.pdf |
GA2 Utility Coupler Manual
|
|
UC-GA2 Master |

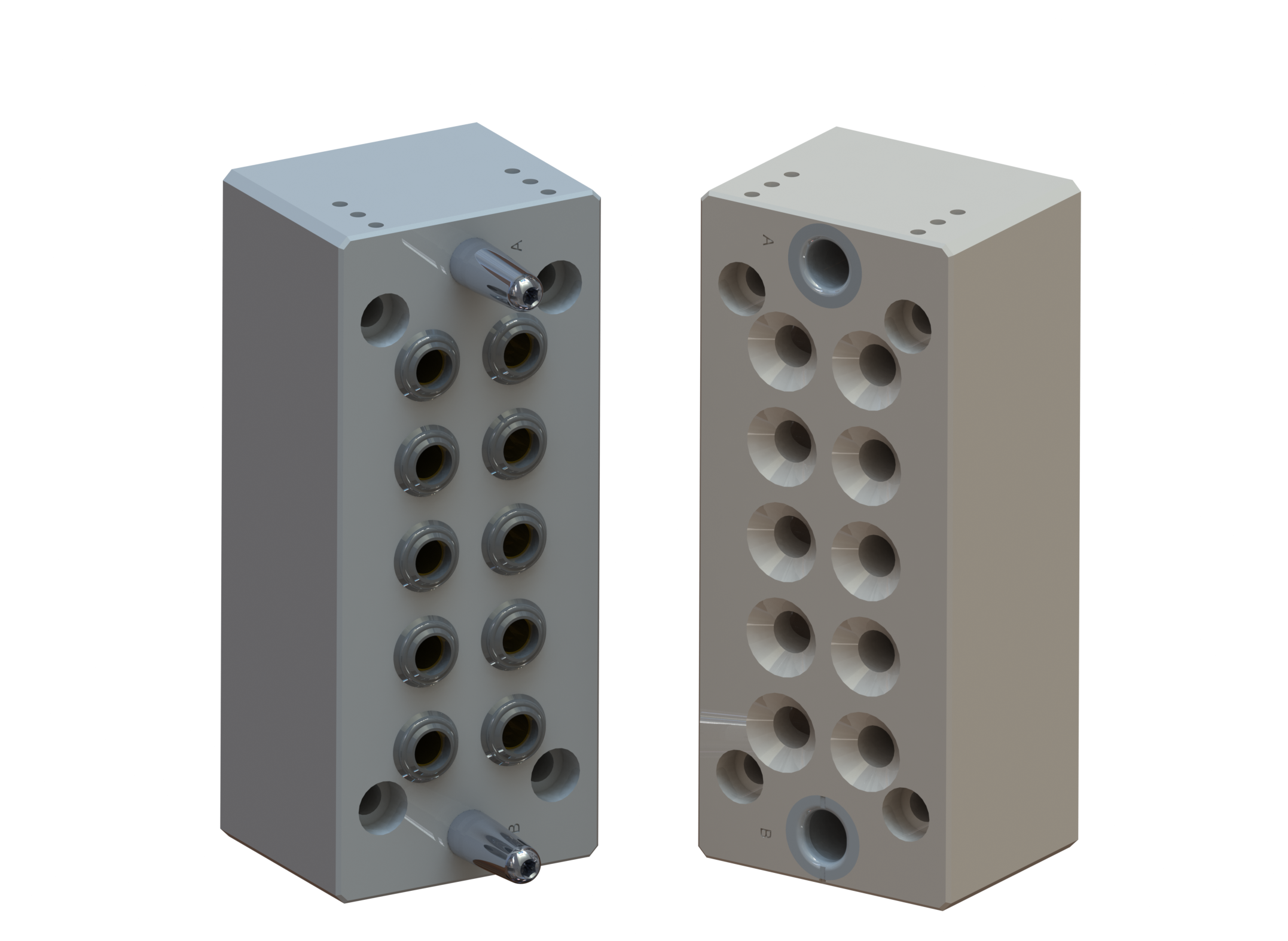

Utility Coupler with (10) 3/8" NPT Pass-Through Ports and (2) J16 Flats
|
UC-GA2 Tool - Euro |
Utility Coupler with (10) G 1/4 (BSPP) Pass-Through Ports and (2) J16 Flats
|
UC-GA2 Master - Euro |
Utility Coupler with (10) G 1/4 (BSPP) Pass-Through Ports and (2) J16 Flats
|
UC-GA2 Tool |
Utility Coupler with (10) 3/8" NPT Pass-Through Ports and (2) J16 Flats
|
|
Drive Cylinder Model: |
GL-GC-B80S100-S0-E |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-N |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-E |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-S0-N |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-N |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-E |
Axial Clamping Force*: |
620 lbf |
Sensing: |
extend and retract |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
Drive Cylinder Model: |
GK-GC-B63S75-SG-N |
Axial Clamping Force*: |
390 lbf |
Electric or Pneumatic: |
Pneumatic |
Operational Temperature Range: |
-20 °F - 150 °F |
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
9630-20-GK-GC-B63S75-SG-N.pdf |
GK-GC-B63S75 Drive Unit Drawing
|
9620-20-B-GKx Utility Coupler.pdf |
GKx Utility Coupler Manual (incl GK1 and GK2)
|
|
|
*Axial clamp force at 80 psi for air, at rated voltage for electric
|
Contact Application Support for assistance in choosing compatible modules.
|
