Fluid/Air Module: FH10,AQ4-T


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FH10,AQ4-T





Product Advantages
  • Provides fluid/air service to the Master and Tool plates.
  • 1/2" G ports.
  • (5) self-sealing ports (Master- and Tool-side).
  • 3/8" poppets.
  • 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

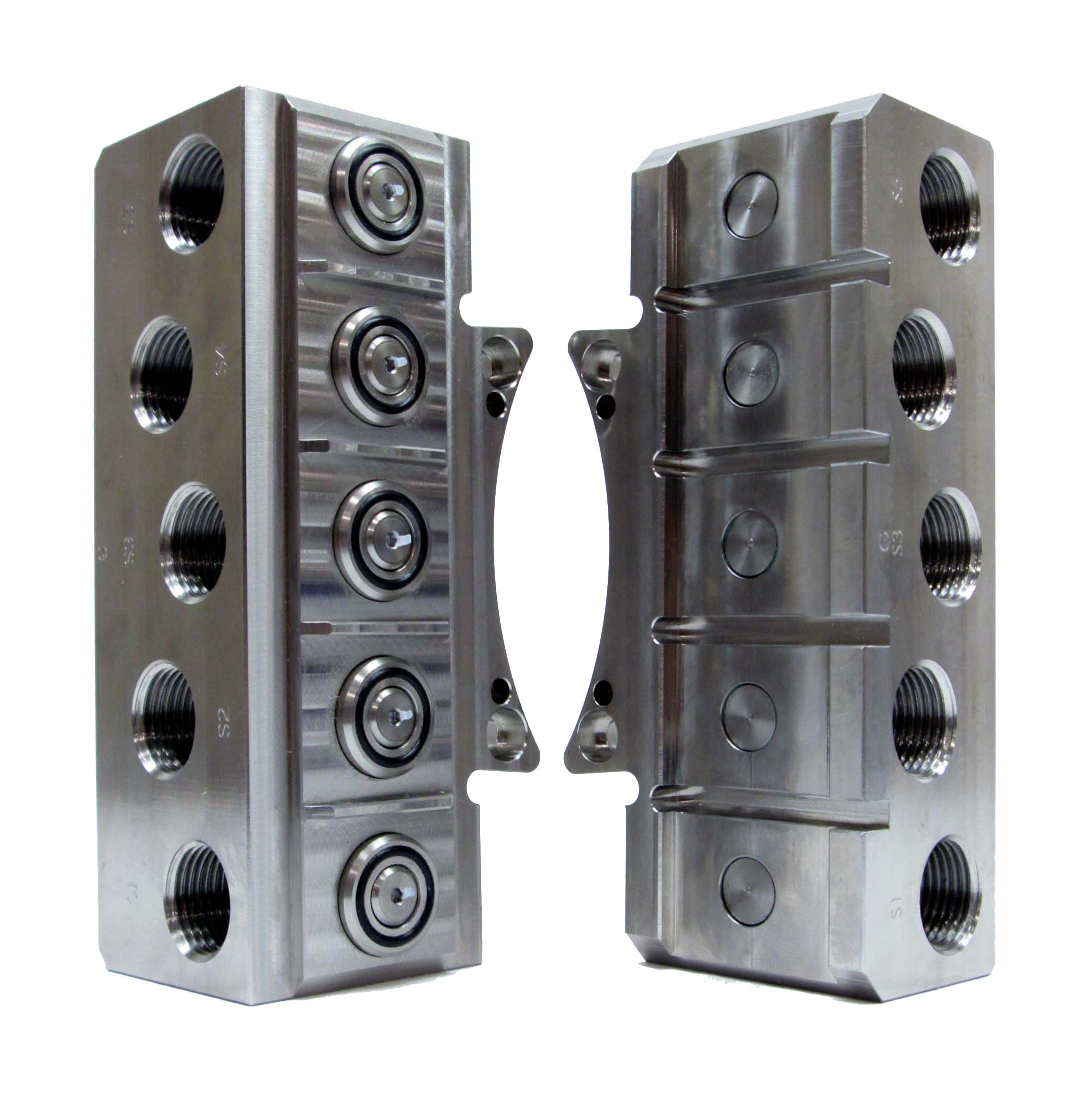

FH10 Modules (Master and Tool)
FH10 Modules (Master and Tool)

Part NumberSideNotes
9121-FH10-MMStainless Steel Fluid/Air Module with (5) G 1/2 (BSPP) self-sealing ports, 3/8 Poppets - Master side
9121-AQ4-TTPneumatic Module with (1) G 1/2 (BSPP), 3/8 Poppets at S5 - Tool side
9121-FH10-TTStainless Steel Fluid/Air Module with (5) G 1/2 (BSPP) self-sealing ports, 3/8 Poppets - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Stainless Steel Fluid/Air Module with (5) G 1/2 (BSPP) self-sealing ports, 3/8" Poppets
Cv Rating: 1.6
Weight: FH10 Master 7.16 lbs (3.25 kg)
FH10 Tool 5.13 lbs (2.33 kg)
AQ4 Tool x.x lbs (x.x kg)
Materials:
  • Stainless steel housings
  • Stainless steel, Nitrile, and PVC valve components.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
