Radially Compliant Deburring Model RC-340-CNC


Skip Navigation LinksHome > Products > Material Removal Tools > Robotic Material Removal Models > RC-340-CNC



Product Advantages
  • Ideally suited for removal of parting lines and flash on parts.
  • Turbine motor with clean air (no oil) requires less air and can be vented to atmosphere.
  • Unit also deburrs edges, significantly reduces cycle time.
  • A variety of spindle speeds are available.
  • Built-in compliance reduces CNC machine programming.
  • Cutting force adjustable on-the-fly.
  • Utilizes standard tungsten-carbide industrial bits.
  • Minimal chattering and vibration.
  • Great replacement for hand deburring operations.
  • Patented air supply system.

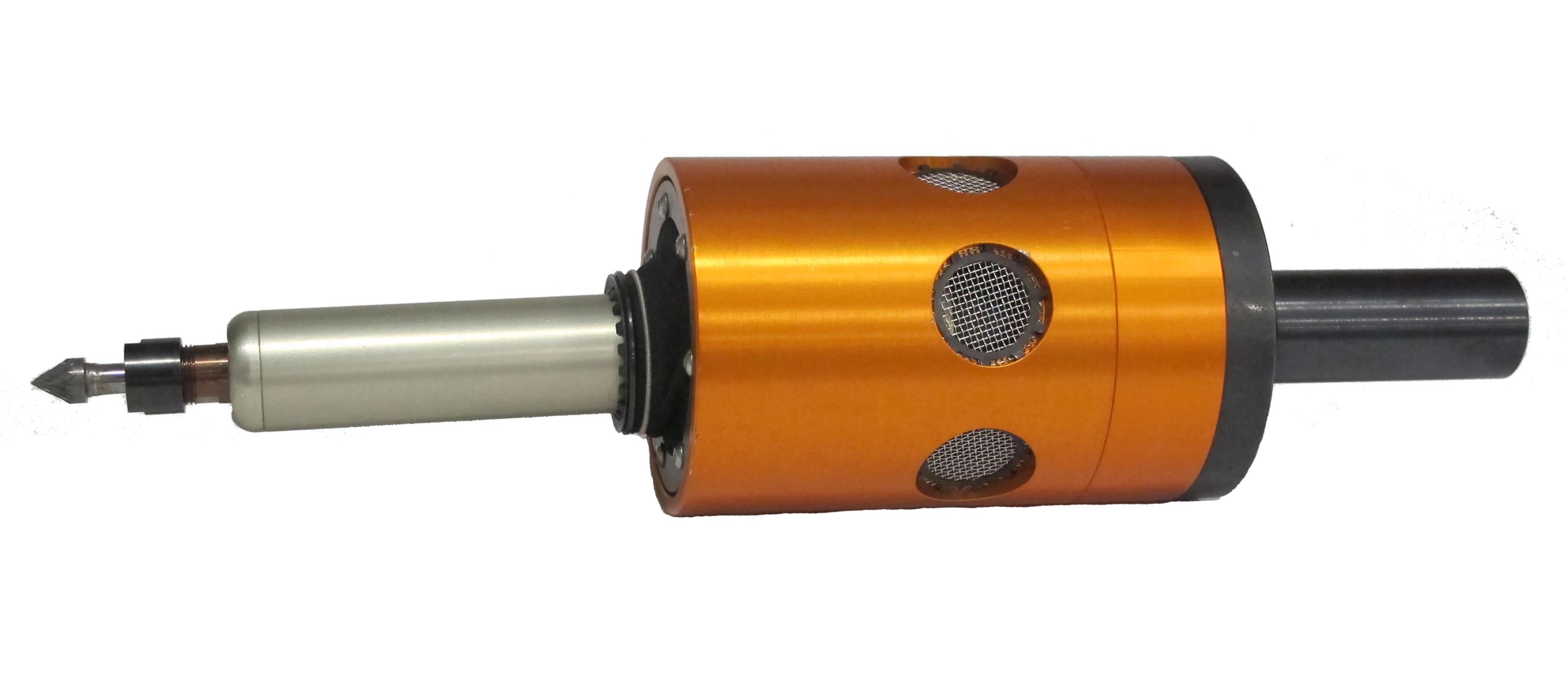

RC-340-CNC Deburring Tool
RC-340-CNC Deburring Tool

SpecificationsAccessoriesDrawingsManuals3D CAD Models


Weight (without mounts) 4.2 lb
Compliance Travel @ Collet 0.3 in
Compliance Travel Recommended 0.12 in
Compliance Force (Pneumatically Variable) 2.8 lbf - 9.5 lbf
Idle Speed 40000 rpm
Air Consumption 6 CFM - 22 CFM
Air Connections (Spindle) 1/4 NPT thru spindle or 1/8 NPT external
Air Connections (Compliance) 1/4 NPT thru spindle or 1/8 NPT external

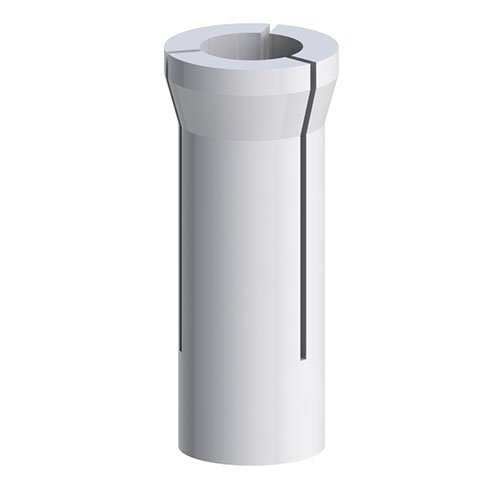

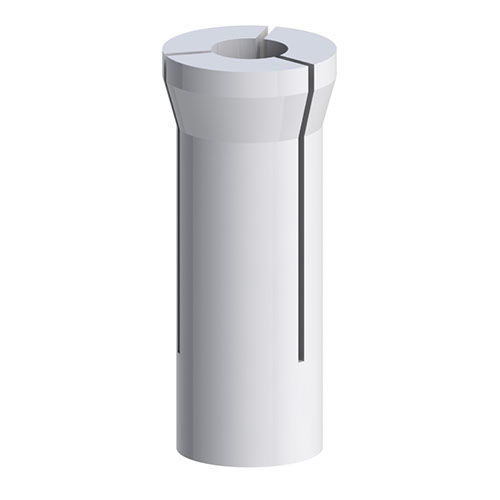

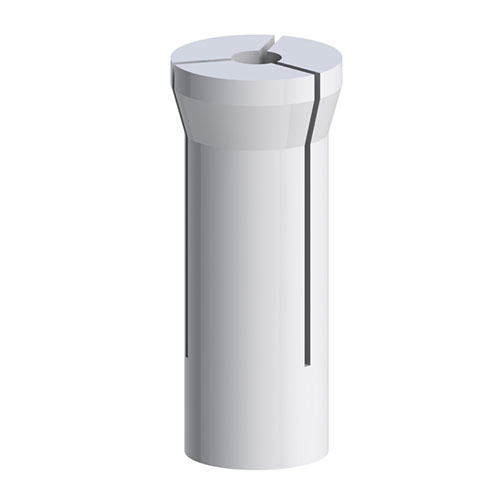

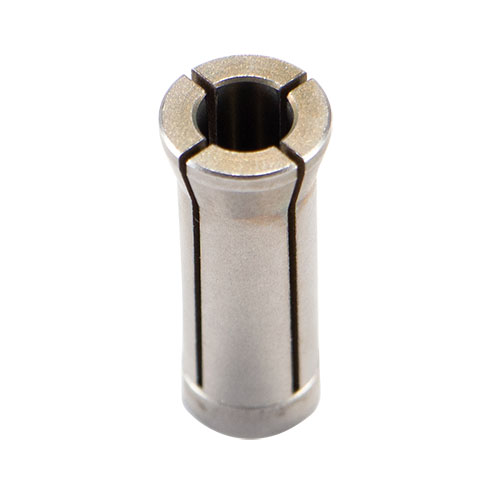

Collet 1/4" standard (others available)
Power 340 W @ 40000 rpm
Mounting Feature 3/4" [19mm] Weldon Shank
