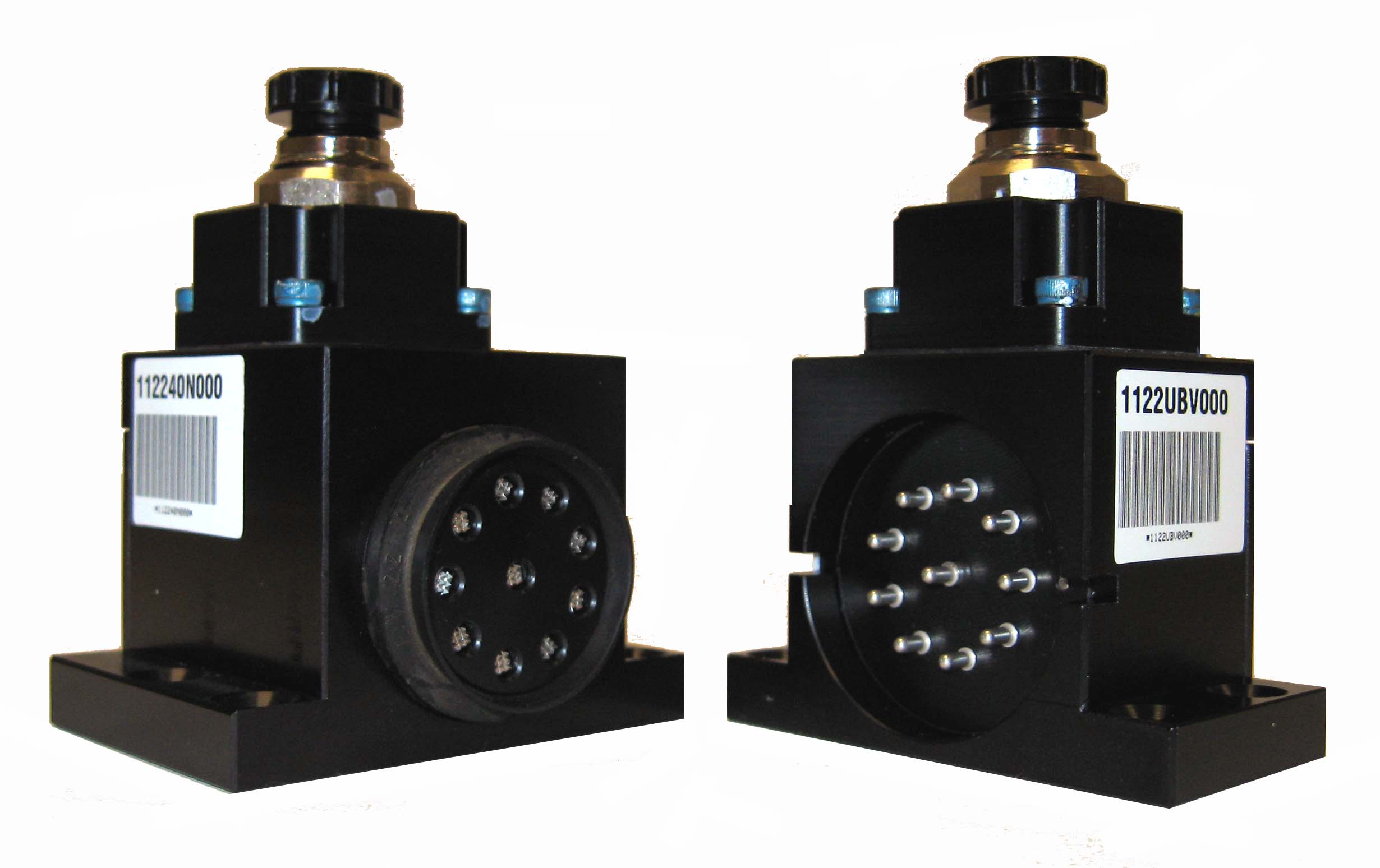

9120-RE5-M | M | Ethernet Pass-through Module with 4-pins and Shield - Master side | |
9120-RE5-T | T | Ethernet Pass-through Module with 4-pins and Shield - Tool side | |
Description: |
Ethernet Pass-through Module with 4-pins and Shield |
Weight: |
Master 0.40 lbs (0.18 kg) Tool 0.30 lbs (0.14 kg) |
Materials: |
- Aluminum housing
- Precious metal-plated heads on spring pins
- Precious-metal-plated contact pins
- Nitrile seal.
|
Elec. Rating: |
2 Amp/60VAC max. |
Operational Temperature Range: |
-20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC) |
|
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
There are no Cables associated with this module.
|
|
9630-20-RE5.pdf |
RE5 Module Drawing
|
|
None currently available. See your Account Representative for more information.
|
9120-RE5-T |
Ethernet Pass Through Tool Module with 4-pins and shield
|
9120-RE5-M |
Ethernet Pass Through Master Module with 4-pins and shield
|
|
|
