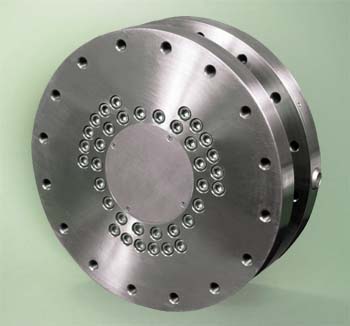

Standard Calibrations (US)
Calibration | Fx,Fy | Fz | Tx,Ty | Tz | Fx,Fy | Fz | Tx,Ty | Tz |
US-2250-13000 | 2250 lbf | 5250 lbf | 13000 lbf-in | 13000 lbf-in | 3/8 lbf | 1 lbf | 3 3/4 lbf-in | 1 7/8 lbf-in |
US-4500-26000 | 4500 lbf | 10500 lbf | 26000 lbf-in | 26000 lbf-in | 3/4 lbf | 2 lbf | 7 1/2 lbf-in | 3 3/4 lbf-in |
US-9000-52000 | 9000 lbf | 21000 lbf | 52000 lbf-in | 52000 lbf-in | 1 1/2 lbf | 4 lbf | 15 lbf-in | 7 1/2 lbf-in |
| SENSING RANGES | RESOLUTION |
View Standard (US) Complex Loading Graph
Metric Calibrations (SI)
Calibration | Fx,Fy | Fz | Tx,Ty | Tz | Fx,Fy | Fz | Tx,Ty | Tz |
SI-10000-1500 | 10 kN | 22 kN | 1.5 kNm | 1.5 kNm | 1/640 kN | 1/240 kN | 3/8000 kNm | 3/16000 kNm |
SI-20000-3000 | 20 kN | 44 kN | 3 kNm | 3 kNm | 1/320 kN | 1/120 kN | 3/4000 kNm | 3/8000 kNm |
SI-40000-6000 | 40 kN | 88 kN | 6 kNm | 6 kNm | 1/160 kN | 1/60 kN | 3/2000 kNm | 3/4000 kNm |
| SENSING RANGES | RESOLUTION |
View Metric (SI) Complex Loading Graph
*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.
ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.
Contact your sales representative for accuracy information.
|
Single-Axis Overload
|
Fxy
|
ア240000 N
|
Fz
|
ア520000 N
|
Txy
|
ア32000 Nm
|
Tz
|
ア36000 Nm
|
Stiffness (Calculated)
|
X-axis & Y-axis forces (Kx, Ky)
|
1.2x109 N/m
|
Z-axis force (Kz)
|
1.3x109 N/m
|
X-axis & Y-axis torque (Ktx, Kty)
|
9.2x106 Nm/rad
|
Z-axis torque (Ktz)
|
2.4x107 Nm/rad
|
Resonant Frequency
|
Fx, Fy, Tz
|
|
Fz, Tx, Ty
|
|
Physical Specifications
|
Weight*
|
47 kg
|
Diameter*
|
330 mm
|
Height*
|
107 mm
|
* Specifications include standard interface plates.
|
9230-05-1158.pdf |
Omega331 Transducer Drawing
|
9230-05-1360.pdf |
Omega331 IP65 Transducer Drawing
|
|
F/Tマニュアル
|
|
ネットF/T
|
|
ネットF/Tマニュアル
|
ネットワーク経由でF/Tデータにアクセスすることをお望みのお客様向け。ATIソフトウェアを実行できるか、ご自身のネットワーク接続ソフトウェアを書ける必要があります。(ファームウェアバージョン2.0.00以前のマニュアルについては、ATIにお問い合わせください。)
|
|
|
|
|
|
|
|
|
|
|
NETB Drawing
|
Drawing of the Net Box, used with 9105-NET-x sensors with internal digitization electronics. Most NET F/T Gamma/Delta/Omega/Theta model sensors will use this box.
|
|
|
|
|
NETBA Drawing
|
Drawing of the Net Box with analog board, used with NET F/T Nano/Mini sensors or other sensors without internal electronics.
|
|
|
|
|
NETB-PN2 Drawing
|
Drawing of the Net Box with Profinet and AIDA push-pull connectors.
|
|
|
|
|
Wireless F/T
|
|
|
|
EtherCAT F/T
|
|
|
EtherCAT Manual
|
For customers who want information for initial setup and installation for the EtherCAT F/T System (For ECAT Axia sensors use the ECAT Axia F/T Manual below).
|
|
|
|
|
|
|
|
Digital F/T
|
|
|
Digital F/T Manual
|
For customers who access F/T data over a high-speed RS-485 bus (For RS485 Axia sensors use the Serial Axia F/T manual below).
|
|
|
|
|
|
DAQ F/T
|
|
|
DAQ F/Tマニュアル
|
コンピュータのDAQボードに接続するお客様向け。ATIソフトウェアを実行できる必要があります。
|
|
|
|
|
|
|
|
|
PS-1 DAQ Power Supply Drawing
|
Drawing of the power supply box used with 9105-TIF-x sensors with internal amplification electronics. Most DAQ F/T Gamma/Delta/Omega/Theta model sensors will use this box.
|
|
|
|
|
|
|
|
|
|
F/Tコントローラ
|
|
|
|
TWE F/T
|
|
|
TWE F/Tマニュアル
|
ご自身の信号を調節、増幅する設計を行うお客様向け。NanoおよびMiniトランスデューサの場合にのみ検討してください。
|
|
|
|
|
|
Axia F/T
|
|
|
9230-05-1543
|
Axia80 Force/Torque Sensor Product Family – Drawing
|
|
|
|
|
|
|
ECAT Axia80 F/T Manual
|
For Axia80 customers who wish to access F/T data on robots with EtherCAT communications.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ECAT Axia90 F/T Manual
|
For Axia90 customers who wish to access F/T data on robots with EtherCAT communications.
|
|
|
|
|
|
|
|
|
|
|
9630-05-0006
|
Axia130 Force/Torque Sensor Product Family – Drawing
|
|
|
|
|
|
|
|
|
|
|
|
Robot Specific F/T |
|
|
9105-UR-Axia80 Kit Drawing
|
This drawing is not currently available. Please see either CB or E manual below or contact F/T Applications Support for details.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
トランスデューサセクション
|
|
|
|
|
Software Documentation
|
|
|
F/T Data Viewer Manual
|
For customers using the F/T Data Viewer PC program to view and log data from NET F/T, Ethernet Axia, and RS485 Axia sensors.
|
|
|
|
|
|
|
補遺
|
|
|
|
|
9105-TIF-Omega331 |
Omega331 DAQ F/T Transducer uses Lemo connector
|
9105-NET-OMEGA331 |
9105-NET-OMEGA331
|
9105-NET-Omega331-IP65 |
Omega331 NET F/T Transducer with IP65 water splash-proof protection
|
9105-TIF-Omega331-IP65 |
Omega331 DAQ F/T Transducer with IP65 fresh water splash-proof protection
|
9105-NET-OMEGA331TH85 |
Omega331 NET F/T transducer with 85mm thru-hole
|
|
