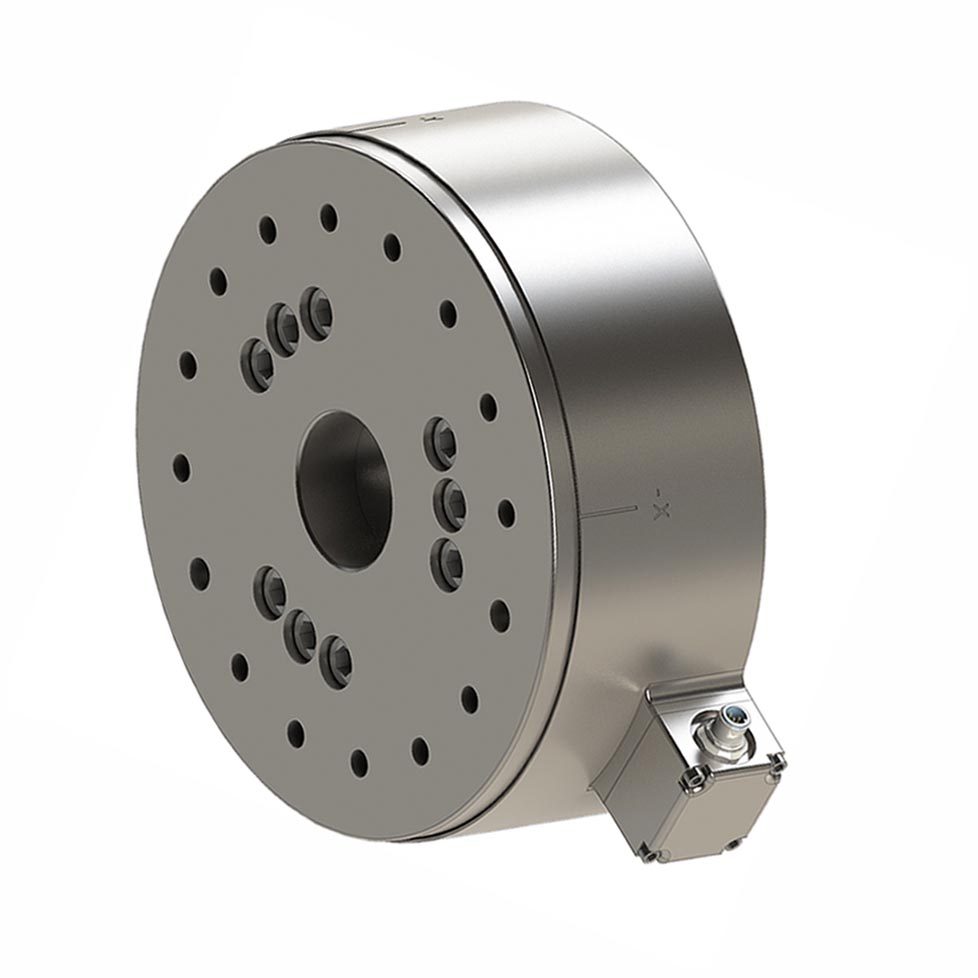

ATI Industrial Automation: F/T Sensor Omega250 IP65/IP68

Extremely-High Strength: IP65 rated for protection against water spray. IP68 (10m) rated for submersion in fresh water to a depth of 10 meters. EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 10.1 to 40.8 times rated capacities.
High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.
IP60 Version Available: An IP60 version is for use in dusty environments.

Note(s): IP68 sensors exhibit a decrease in Fz range related to submersion depth. See IP68 F/T Transducer Details in the Manuals tab under Addendums for detailed descriptions or contact your account representative.

Typical Applications

Wet applications
Mechanical assembly
Part placement and removal in precision fixtures
Material removal, grinding, and polishing

Omega250 IP65 Transducer

Select a system type. (For more information on system types, please see our F/T Product Description page.)

16-Bit DAQ, ECAT, Net, TWE or WNet F/T System

Controller F/T System

Standard Calibrations (US)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
US-900-4500	900 lbf	1800 lbf	4500 lbf-in	4500 lbf-in	1/2 lbf	1/2 lbf	1 lbf-in	1 lbf-in
US-1800-9000	1800 lbf	3600 lbf	9000 lbf-in	9000 lbf-in	1 lbf	1 lbf	2 lbf-in	2 lbf-in
US-3600-18000	3600 lbf	7200 lbf	18000 lbf-in	18000 lbf-in	2 lbf	2 lbf	5 lbf-in	5 lbf-in
	SENSING RANGES				RESOLUTION

View Standard (US) Complex Loading Graph

Metric Calibrations (SI)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
SI-4000-500	4000 N	8000 N	500 Nm	500 Nm	1 N	2 N	1/8 Nm	1/8 Nm
SI-8000-1000	8000 N	16000 N	1000 Nm	1000 Nm	2 N	4 N	1/4 Nm	1/4 Nm
SI-16000-2000	16000 N	32000 N	2000 Nm	2000 Nm	4 N	8 N	1/2 Nm	1/2 Nm
	SENSING RANGES				RESOLUTION

View Metric (SI) Complex Loading Graph

*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.

Contact your sales representative for accuracy information.

US (Standard)

SI (Metric)

Single-Axis Overload
Fxy	ｱ160000 N
Fz	ｱ330000 N
Txy	ｱ21000 Nm
Tz	ｱ25000 Nm
Stiffness (Calculated)
X-axis & Y-axis forces (Kx, Ky)	4.2x10⁸ N/m
Z-axis force (Kz)	5.6x10⁸ N/m
X-axis & Y-axis torque (Ktx, Kty)	3.0x10⁶ Nm/rad
Z-axis torque (Ktz)	6.2x10⁶ Nm/rad
Resonant Frequency
Fx, Fy, Tz	780 Hz
Fz, Tx, Ty	770 Hz
Physical Specifications
Weight*	31.8 kg
Diameter*	295 mm
Height*	94.9 mm

* Specifications include standard interface plates.
