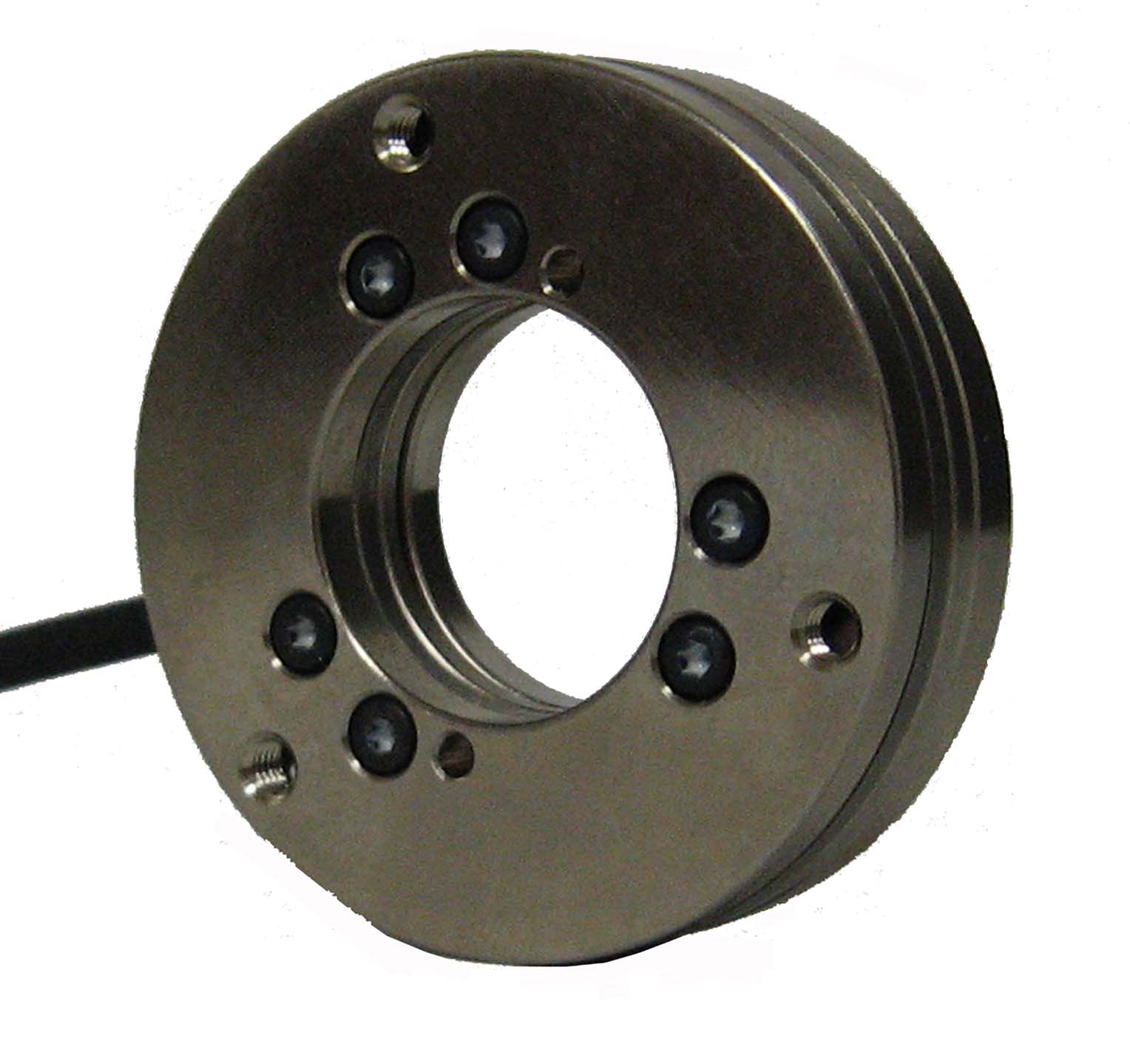

Standard Calibrations (US)
| Calibration | Fx,Fy | Fz | Tx,Ty | Tz | Fx,Fy | Fz | Tx,Ty | Tz |
| US-2-1 | 2 lbf | 2 lbf | 1 lbf-in | 1 lbf-in | 1/2320 lbf | 1/2320 lbf | 1/4640 lbf-in | 1/4640 lbf-in |
| US-4-2 | 4 lbf | 4 lbf | 2 lbf-in | 2 lbf-in | 1/1160 lbf | 1/1160 lbf | 1/2320 lbf-in | 1/2320 lbf-in |
| US-8-4 | 8 lbf | 8 lbf | 4 lbf-in | 4 lbf-in | 1/580 lbf | 1/580 lbf | 1/1160 lbf-in | 1/1160 lbf-in |
| | SENSING RANGES | RESOLUTION |
View Standard (US) Complex Loading Graph
Metric Calibrations (SI)
| Calibration | Fx,Fy | Fz | Tx,Ty | Tz | Fx,Fy | Fz | Tx,Ty | Tz |
| SI-9-0.125 | 9 N | 9 N | 125 Nmm | 125 Nmm | 1/512 N | 1/512 N | 1/40 Nmm | 1/40 Nmm |
| SI-18-0.25 | 18 N | 18 N | 250 Nmm | 250 Nmm | 1/256 N | 1/256 N | 1/20 Nmm | 1/20 Nmm |
| SI-36-0.5 | 36 N | 36 N | 500 Nmm | 500 Nmm | 1/128 N | 1/128 N | 1/10 Nmm | 1/10 Nmm |
| | SENSING RANGES | RESOLUTION |
View Metric (SI) Complex Loading Graph
*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.
ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.
Contact your sales representative for accuracy information.
|
|
Single-Axis Overload
|
|
Fxy
|
ｱ300 N
|
|
Fz
|
ｱ380 N
|
|
Txy
|
ｱ3.2 Nm
|
|
Tz
|
ｱ4.6 Nm
|
|
Stiffness (Calculated)
|
|
X-axis & Y-axis forces (Kx, Ky)
|
5.2x106 N/m
|
|
Z-axis force (Kz)
|
5.2x106 N/m
|
|
X-axis & Y-axis torque (Ktx, Kty)
|
7.7x102 Nm/rad
|
|
Z-axis torque (Ktz)
|
1.1x103 Nm/rad
|
|
Resonant Frequency
|
|
Fx, Fy, Tz
|
2800 Hz
|
|
Fz, Tx, Ty
|
2300 Hz
|
|
Physical Specifications
|
|
Weight*
|
0.0387 kg
|
|
Diameter*
|
43 mm
|
|
Height*
|
11.5 mm
|
* Specifications include standard interface plates.
|
