ATI Industrial Automation: F/T Sensor Nano25

One of the Smallest 6-axis Transducers in the World: Slightly larger than the Nano17, the Nano25 offers much higher strength, especially in Fz.
Extremely-High Strength: EDM wire-cut from high yield-strength stainless steel. Maximum allowable single-axis overload values are 7.1 to 15.1 times rated capacities.
High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.
Industrial Strain Relief Version Available: E-exit version of this transducer is also available and offers resistance to a 10 lb cable pull force.
IP65 and IP68 (10m) Versions Available: The IP65 version of the transducer is protected against water spray. The IP68 version is submergible in fresh water to a depth of 10 meters.

Note(s): Applying moments beyond ±30 lbf-in (±3.4 Nm) in Tz can cause hysteresis and permanent zero-point change in the Nano25.

Typical Applications

Telerobotics
Robotic surgery
Robotic-hand research
Finger-force research

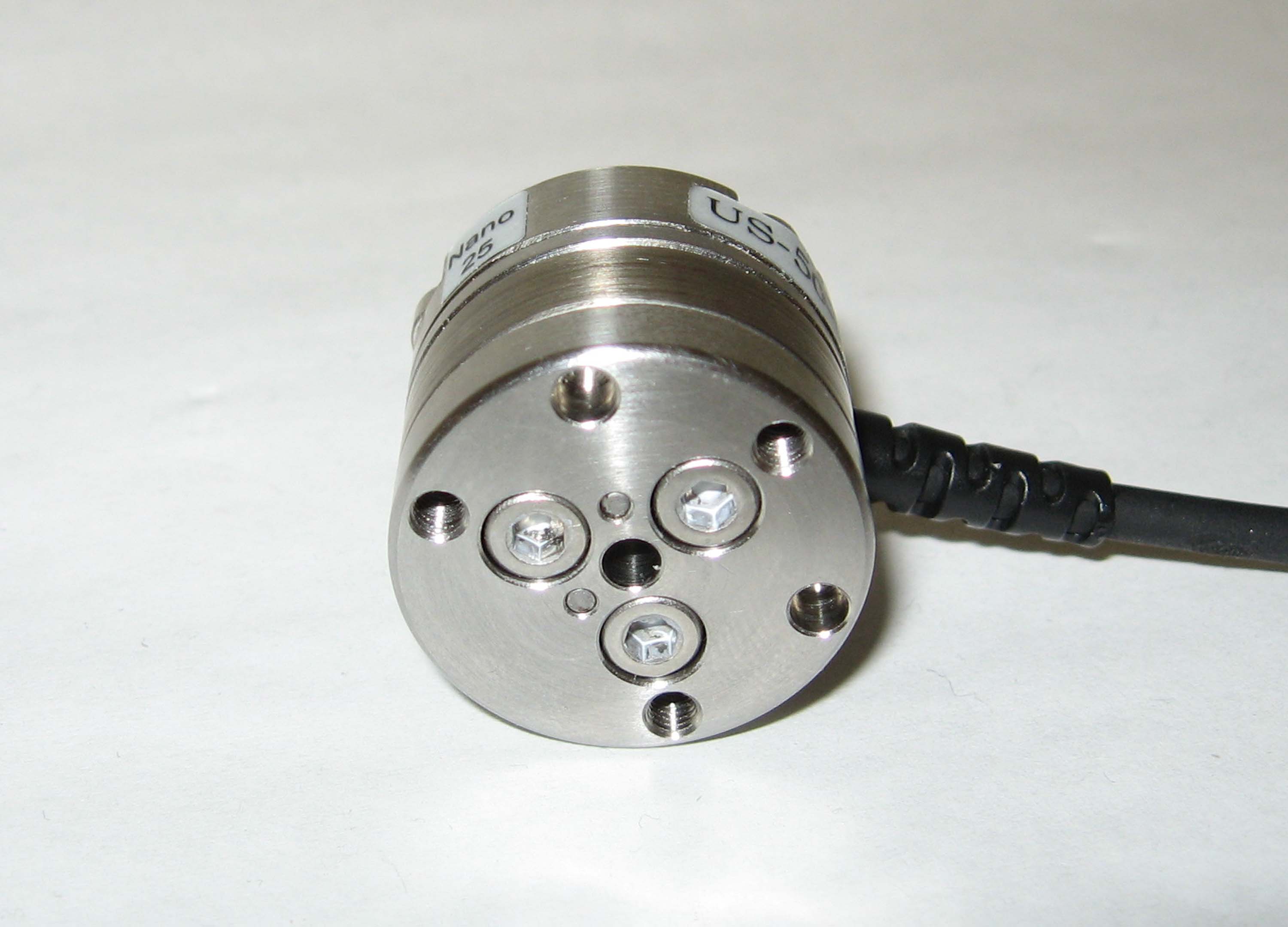

Nano25-E Transducer

Select a system type. (For more information on system types, please see our F/T Product Description page.)

16-Bit DAQ, ECAT, Net, TWE or WNet F/T System

Controller F/T System

Standard Calibrations (US)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
US-25-25	25 lbf	100 lbf	25 lbf-in	25 lbf-in	1/224 lbf	3/224 lbf	1/160 lbf-in	1/320 lbf-in
US-50-50	50 lbf	200 lbf	50 lbf-in	30 lbf-in	1/112 lbf	3/112 lbf	1/80 lbf-in	1/160 lbf-in
	SENSING RANGES				RESOLUTION

View Standard (US) Complex Loading Graph

Metric Calibrations (SI)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
SI-125-3	125 N	500 N	3 Nm	3 Nm	1/48 N	1/16 N	1/1320 Nm	1/2640 Nm
SI-250-6	250 N	1000 N	6 Nm	3.4 Nm	1/24 N	1/8 N	1/660 Nm	1/1320 Nm
	SENSING RANGES				RESOLUTION

View Metric (SI) Complex Loading Graph

*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.

Contact your sales representative for accuracy information.

US (Standard)

SI (Metric)

Single-Axis Overload
Fxy	ｱ2300 N
Fz	ｱ7300 N
Txy	ｱ43 Nm
Tz	ｱ63 Nm
Stiffness (Calculated)
X-axis & Y-axis forces (Kx, Ky)	5.3x10⁷ N/m
Z-axis force (Kz)	1.1x10⁸ N/m
X-axis & Y-axis torque (Ktx, Kty)	6.5x10³ Nm/rad
Z-axis torque (Ktz)	9.2x10³ Nm/rad
Resonant Frequency
Fx, Fy, Tz	3600 Hz
Fz, Tx, Ty	3800 Hz
Physical Specifications
Weight*	0.0634 kg
Diameter*	25 mm
Height*	21.6 mm

* Specifications include standard interface plates.
