ATI Industrial Automation: F/T Sensor Nano17 Titanium

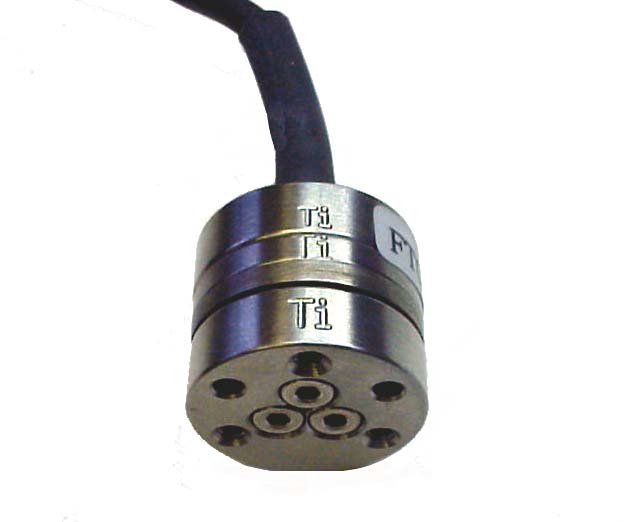

Our Smallest 6-axis Sensor Now Available in a Titanium Version: The Nano17 Titanium fits into restricted spaces of research applications.
Non-Ferrous Materials: Titanium construction.
Very-Fine Resolution: Can resolve down to 0.149 gram-force.
Extremely-High Strength: EDM wire-cut from grade 5 titanium. Maximum allowable single-axis overload values are 4.9 to 19.6 times rated capacities.
High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.

Typical Applications

Biomechanical research
Measurements in highly magnetic environments

Nano17 Titanium Transducer

Select a system type. (For more information on system types, please see our F/T Product Description page.)

16-Bit DAQ, ECAT, Net, TWE or WNet F/T System

Controller F/T System

Standard Calibrations (US)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
US-1.8-0.4	1.8 lbf	3.15 lbf	0.4 lbf-in	0.4 lbf-in	1/3400 lbf	1/2720 lbf	7/92800 lbf-in	1/18560 lbf-in
US-3.6-0.8	3.6 lbf	6.3 lbf	0.8 lbf-in	0.8 lbf-in	1/1700 lbf	1/1360 lbf	7/46400 lbf-in	1/9280 lbf-in
US-7.2-1.6	7.2 lbf	12.6 lbf	1.6 lbf-in	1.6 lbf-in	1/850 lbf	1/680 lbf	7/23200 lbf-in	1/4640 lbf-in
	SENSING RANGES				RESOLUTION

View Standard (US) Complex Loading Graph

Metric Calibrations (SI)

Calibration	Fx,Fy	Fz	Tx,Ty	Tz	Fx,Fy	Fz	Tx,Ty	Tz
SI-8-0.05	8 N	14.1 N	50 Nmm	50 Nmm	1/682 N	1/682 N	3/364 Nmm	5/728 Nmm
SI-16-0.1	16 N	28.2 N	100 Nmm	100 Nmm	1/341 N	1/341 N	3/182 Nmm	5/364 Nmm
SI-32-0.2	32 N	56.4 N	200 Nmm	200 Nmm	1/171 N	1/171 N	3/92 Nmm	5/184 Nmm
	SENSING RANGES				RESOLUTION

View Metric (SI) Complex Loading Graph

*The resolution is typical for most applications and can be improved with filtering.
**Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.

Contact your sales representative for accuracy information.

US (Standard)

SI (Metric)

Single-Axis Overload
Fxy	ｱ160 N
Fz	ｱ310 N
Txy	ｱ1 Nm
Tz	ｱ1.2 Nm
Stiffness (Calculated)
X-axis & Y-axis forces (Kx, Ky)	4.8x10⁶ N/m
Z-axis force (Kz)	6.6x10⁶ N/m
X-axis & Y-axis torque (Ktx, Kty)	1.4x10² Nm/rad
Z-axis torque (Ktz)	2.2x10² Nm/rad
Resonant Frequency
Fx, Fy, Tz	3000 Hz
Fz, Tx, Ty	3000 Hz
Physical Specifications
Weight*	0.0101 kg
Diameter*	17 mm
Height*	14.5 mm

* Specifications include standard interface plates.
