| 9121-AN2-M | M | Pneumatic module with (6) 3/8 NPT self-sealing ports and (2) ½” NPT pass-through ports - Master side |
| 9121-AN2-T | T | Pneumatic module with (6) 3/8 NPT self-sealing ports and (2) ½” NPT pass-through ports - Tool side |
|
|
|

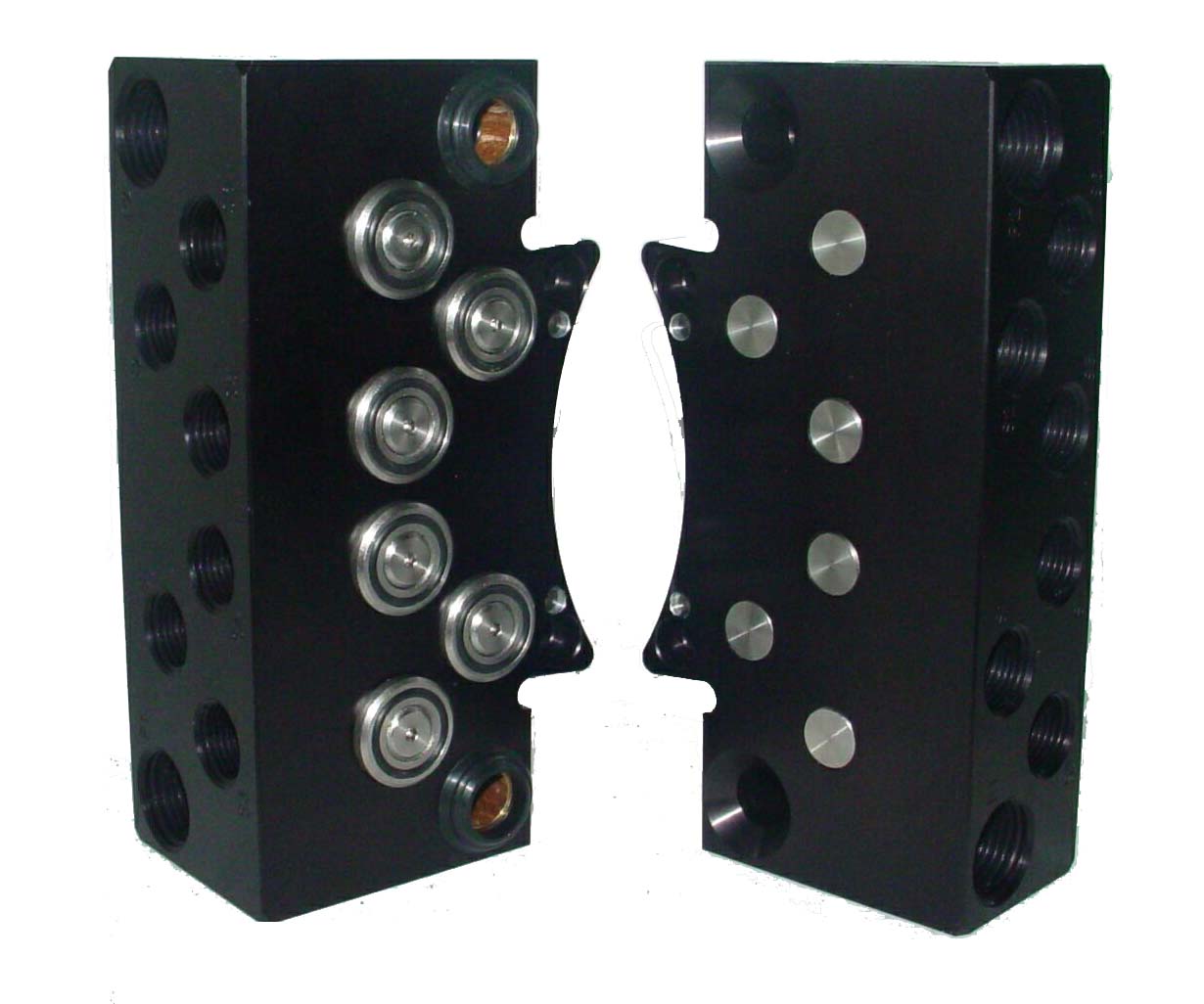

Pneumatic module with (6) 3/8 NPT self-sealing ports and (2) 1/2 NPT pass-through ports |
|
|
1.6 for 3/8 NPT ports S1 - S6, 4.0 for 1/2 NPT ports P1 & P2 |
|
|
Master 2.10 lbs (0.95 kg)
Tool 2.90 lbs (1.32 kg) |
|
|
- Anodized aluminum housings
- Stainless steel, Nitrile, and PVC valve components.
|
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AN2.pdf |
AN2 Module Drawing
|
|
| 9620-20-D-AN2.pdf |
AN2 Air Module Manual
|
|
| 9121-AN2-M |
Pneumatic Master Module with (6) 3/8"NPT self-sealing ports and (2) 1/2"NPT pass-through ports
|
| 9121-AN2-T |
Pneumatic Tool Module with (6) 3/8 NPT self-sealing ports and (2) 1/2 NPT pass-through ports
|
|
|
