Utility Coupler: UC-GK2


Skip Navigation LinksHome > Products > Utility Couplers > Utility Coupler Models > UC-GK2

Product Advantages
  • (4) Mounting flats attach standard ATI utility modules.
  • Compact body size.
  • Engineered compliance built-in to ensure reliable coupling.
  • Sensors available to detect tool side presence.
  • Drive cylinders and linear actuators available.
  • Hardened stainless steel alignment pins.

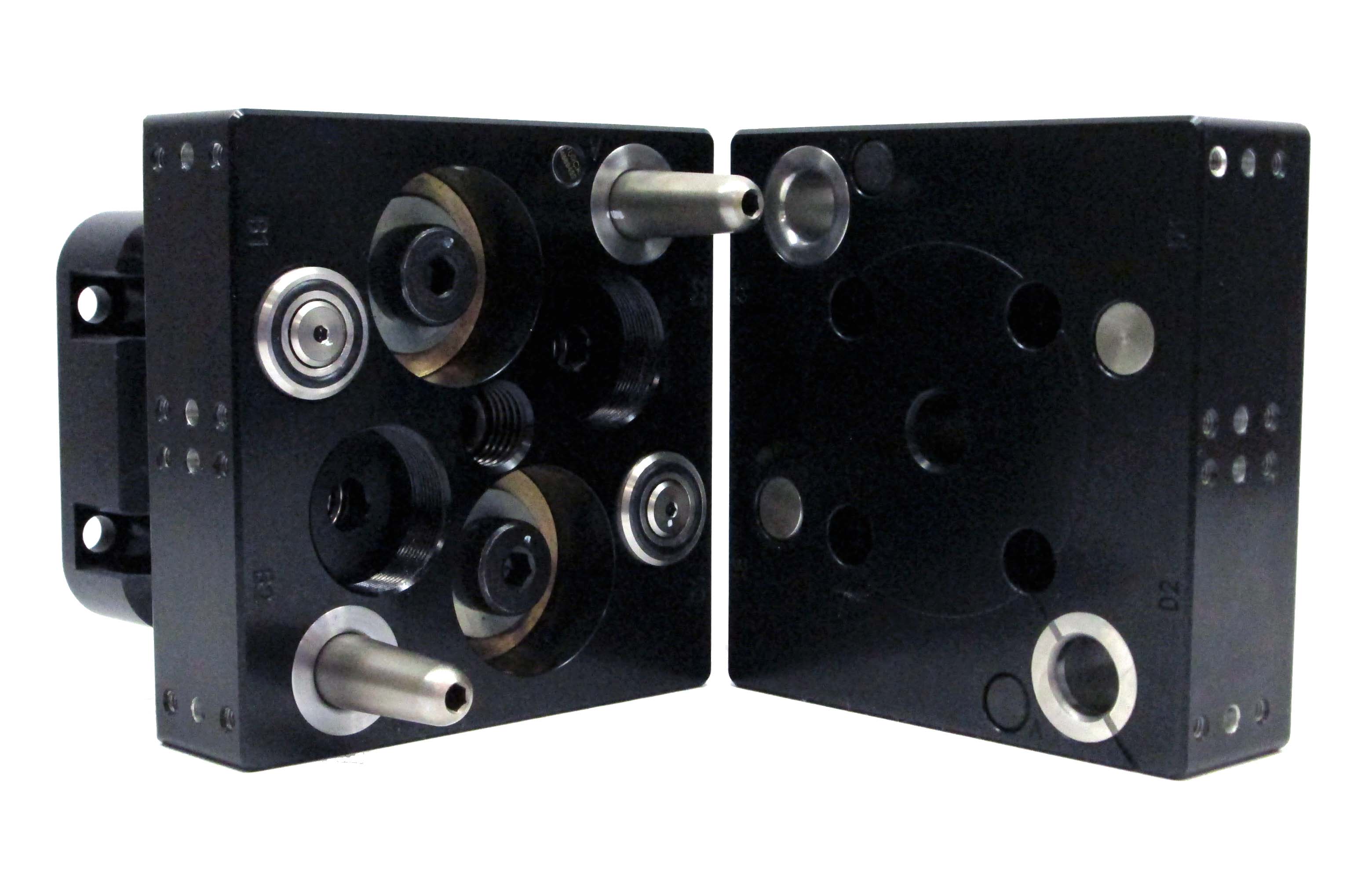

GK2 Utility Coupler
GK2 Utility Coupler

SpecificationsDrawingsManuals3D CAD ModelsCompatible Drive CylindersCompatible Modules




Compliance X-Y: ±0.16 in
Compliance Z: 0.079 in
General Duty: Medium
# of Integrated Ports: 2
Port Size: 3/8
Port Type: Checked
Min. Force to Couple*: 220 lbf
# of Module Flats: 4
Operational Temperature Range: -20 °F - 150 °F


*Minimum force required to couple at 80 psi (lbs)
