Vacuum/Air Modules: V200E


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > V200E





Product Advantages
  • Provides pass-through vacuum service.
  • (1) G 2" (BSPP) pass-through port on Master-side (V200-M-E).
  • (1) G 2" (BSPP) pass-through port on Tool-side (V200-T-E).
  • (3) G 1" (BSPP) pass-through ports on Tool-side (V200G1-T-E).
  • M19 Pattern.
  • Euro version.

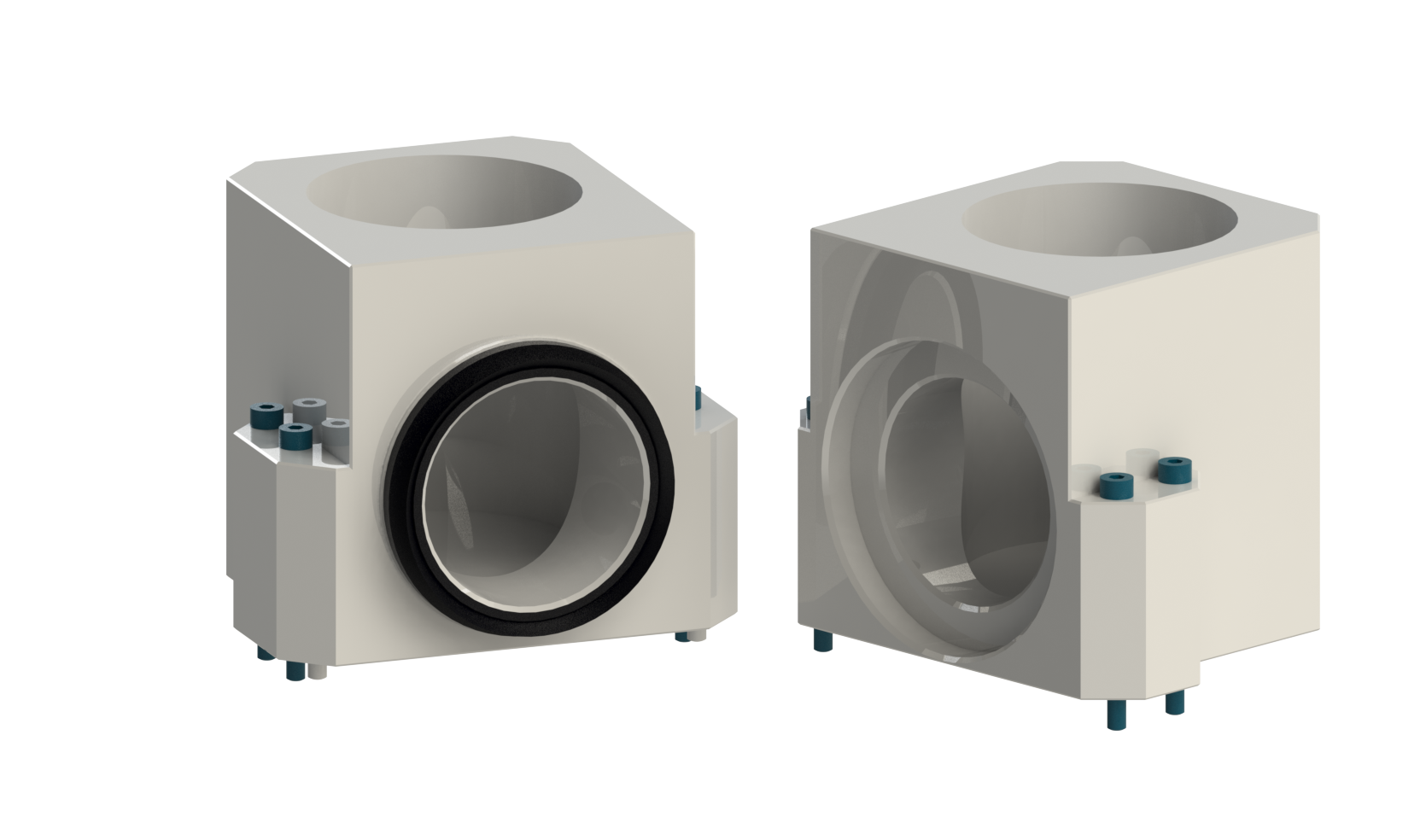

V200-M-E Master and V200G1-T-E Tool Modules (shown)
V200-M-E Master and V200G1-T-E Tool Modules (shown)

Part NumberSideNotes
9120-V200-M-EM(1) G 2" (BSPP) Vacuum Module, M19 Pattern, Euro - Master side
9120-V200G1-T-ET(3) G 1" (BSPP) Vacuum Module, M19 Pattern, Euro - Tool side
9120-V200-T-ET(1) G 2" (BSPP) Vacuum Module, M19 Pattern, Euro - Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: Vacuum Modules with G (BSPP) Pass-through Ports, M19 Pattern, Euro Version
- Master-side Module - (1) 2" Pass-through Port
- Tool-side Module - (1) 2" Pass-through Port
- Tool-side Module (3) 1" Pass-through Ports
Cv Rating: N/A
Weight: V200-M-E = 2.00 lbs (0.91 kg)
V200-T-E = 1.23 lbs (0.56 kg)
V200G1-T-E = 1.5 lbs (0.68 kg)
Materials:
  • Anodized aluminum housings
  • Nitrile rubber seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
