Air Modules: P186A,P186A-E


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > P186A,P186A-E





Product Advantages
  • 1/8 NPT or G 1/8 (BSPP) ports.
  • (6) Pneumatic pass-through ports (Air or Vacuum service).
  • Ported axially.

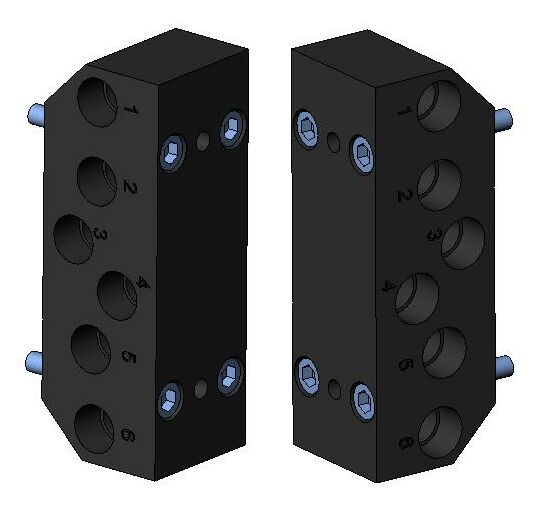

P186A Modules (Master and Tool)
P186A Modules (Master and Tool)

Part NumberSideNotes
9120-P186A-MM(6) 1/8 NPT pass-through ports pneumatic module (Air or Vacuum service) Ported axially. - Master side
9120-P186A-M-EM(6) G 1/8 (BSPP) pass-through ports pneumatic module (Air or Vacuum service) Ported axially. - Master side
9120-P186A-TT(6) 1/8 NPT pass-through ports pneumatic module (Air or Vacuum service) Ported axially. - Tool side
9120-P186A-T-ET(6) G 1/8 (BSPP) pass-through ports pneumatic module (Air or Vacuum service) Ported axially. - Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: (6) 1/8 NPT or G 1/8 (BSPP) pass-through ports pneumatic module (Air or Vacuum service) Ported axially.
Cv Rating: 0.65
Weight: Master 0.36 lbs (0.16 kg)
Tool 0.35 lbs (0.16 kg)
Materials:
  • Anodized aluminum housings
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
