Air and Valve Adapters: Jxx Valve Adapters with a Single Solenoid

Product Description

Provides a single Lock and Unlock air supply connection to the compatible Tool Changer or Utility Coupler Master for actuation of the locking mechanism.
Mounts to Flat A of the Tool Changer.
Control of the integrated valve is accomplished by transmitting unlatch and latch signals from the control/signal module to the integrated solenoid valve.
A cable is supplied to connect the control/signal module to the solenoid valve.
Ledge mount feature provides for the mounting of a control/signal module.
Lock and Unlock air connections to the Tool Changer or Utility Coupler are provided through ports in the ledge mount. O-rings in the body seal the connection.
The valve adapter is equipped with an exhaust muffler, single solenoid valve, solenoid cable, and air blow-off (if equipped).
Access to the solenoid valve manual override is provided through a screw in the aluminum housing.
A tool adapter assembly (9005-20-1192) is required for the Tool side which provides the proper spacing and a ledge mount for the control/signal Tool module.
If valve adapter is equipped with air blow-off, the (9005-20-1403) tool adapter assembly is required.
Air filtration 40 microns.

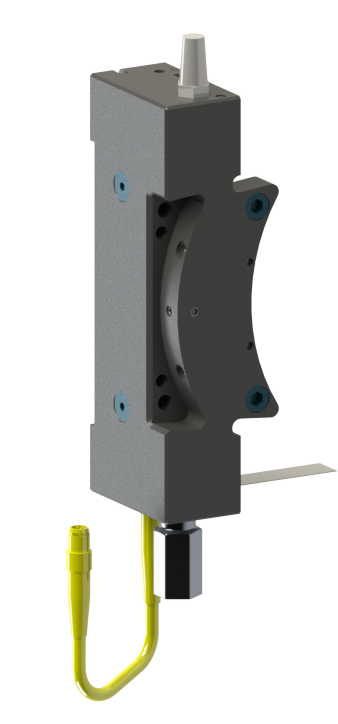

Jxx Valve Adapters with a Single Solenoid (JC2 Master shown)

Part Number	Side	Notes
9121-JC2-M	M	Valve Adapter, Single Solenoid, NPT, QC-210
9121-JC3-M	M	Valve Adapter, Single Solenoid, NPT, QC-310, QC-510, QC-1210
9121-JD3-M	M	Valve Adapter, Single Solenoid, G (BSPP), QC-310, QC-510, QC-1210
9121-JN2-M	M	Valve Adapter, Single Solenoid with Integrated Air Blow Off, NPT, QC-210
9121-JN3-M	M	Valve Adapter, Single Solenoid with Integrated Air Blow Off, NPT, QC-310, QC-510, and QC-1210

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Jxx Valve Adapters with a Single Solenoid

Weight:

JC2-M - 1.31 lbs (0.59 kg)
JC3-M - 1.35 lbs (0.61 kg)
JD3-M - 1.39 lbs (0.63 kg)
JN2-M - 1.33 lbs (0.60 kg)
JN3-M - 1.37 lbs (0.62 kg)

Materials:

Elec. Rating:

19-29 VDC Operational Voltage (Solenoid Valve)

Operational Temperature Range:

0 °F - 120 °F (-17.8 °C - 48.9 °C)
