Air and Valve Adapters: Jxx Valve Adapters with a Double Solenoid and Valve Pass Through


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > Jxx Valve Adapters with a Double Solenoid and Valve Pass Through





Product Advantages
  • Provides a single Lock and Unlock air supply connection to the compatible Tool Changer or Utility Coupler Master for actuation of the locking mechanism.
  • Mounts to Flat A of the Tool Changer.
  • Control of the integrated valve is accomplished using the valve signal pass through connector to the control/signal module.
  • The latch/unlatch signal sent to the control/signal module is transmitted to the valve adapter using a small, internal pin block.
  • Ledge mount feature provides for the mounting of a control/signal module.
  • Lock and Unlock air connections to the Tool Changer or Utility Coupler are provided through ports in the ledge mount. O-rings in the body seal the connection.
  • The valve adapter is equipped with an exhaust muffler, double solenoid valve, and LED indicators for the solenoid lock and unlock position.
  • Access to the solenoid valve manual override is provided through a screw in the aluminum housing.
  • A tool adapter assembly (9005-20-1192) is required for the Tool side which provides the proper spacing and a ledge mount for the control/signal Tool module.
  • Air filtration 40 microns.

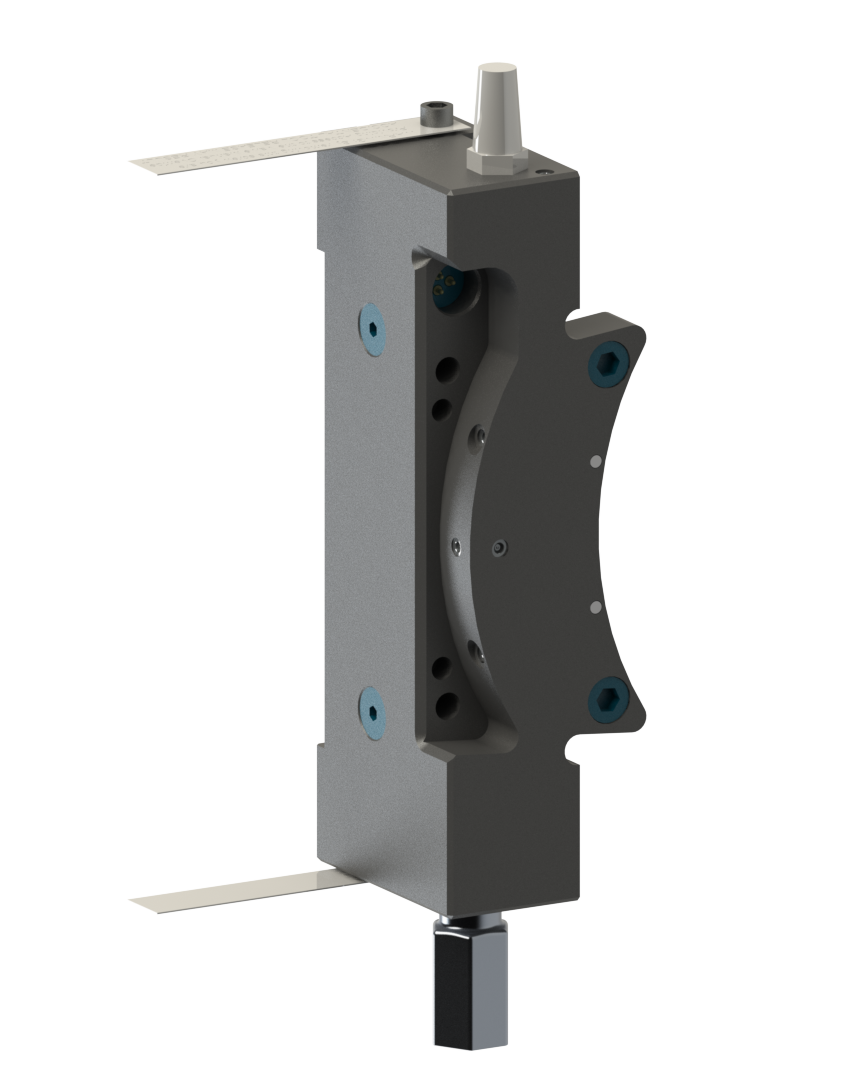

Jxx Valve Adapters with a Double Solenoid and Valve Pass Through Module (JT3 Master shown)
Jxx Valve Adapters with a Double Solenoid and Valve Pass Through Module (JT3 Master shown)

Part NumberSideNotes
9121-JP4-MMValve Adapter, Double Solenoid, R (BSPT), with Valve Pass-through, QC-210
9121-JP5-MMValve Adapter, Double Solenoid, R (BSPT), with Valve Pass-through,QC-310, QC-510, and QC-1210
9121-JT2-MMValve Adapter, Double Solenoid, NPT, with Valve Pass Through, QC-210
9121-JT3-MMValve Adapter, Double Solenoid, NPT, with Valve Pass Through, QC-310, QC-510, and QC-1210
9121-JT5-MMValve Adapter, Double Solenoid (Ground-switched Sinking), NPT, with Valve Pass-through, QC-210
9121-JU2-MMValve Adapter, Double Solenoid, G (BSPP), with Valve Pass Through, QC-210
9121-JU3-MMValve Adapter, Double Solenoid, G (BSPP), with Valve Pass Through, QC-310, QC-510, and QC-1210

SpecificationsCompatible QCsDrawingsManuals

Description: Jxx Valve Adapters with a Double Solenoid and Valve Pass Through
Weight: JP4-M - 1.44 lbs (0.65 kg)
JP5-M - 1.47 lbs (0.67 kg)
JT2-M - 1.33 lbs (0.60 kg)
JT3-M - 1.37 lbs (0.62 kg)
JT5-M - 1.33 lbs (0.60 kg)
JU2-M - 1.37 lbs (0.62 kg)
JU3-M - 1.41 lbs (0.64 kg)
Materials:
  • Aluminum housing.
  • Stainless steel hardware.
Elec. Rating: 19-29 VDC Operational Voltage (Solenoid Valve)
Operational Temperature Range: - 120 °F ( - 48.9 °C)
