Robotic Collision Sensor Model SR-101


Skip Navigation LinksHome > Products > Robotic Collision Sensors > Robotic Collision Sensor Models > SR-101



Product Advantages
  • High repeatability.
  • Generous range of motion.
  • Rugged design for axial compliacnce.
  • Energy absorption.
  • Consistent break-away response.
  • Flexible mounting surfaces.
  • Automatic reset.
  • Adjustable sensitivity.
  • Optional spring provides two trip points.
  • Optional Coolant Protection Boot (IP65-rated and made from fluoroelastomer for improved chemical resistance).

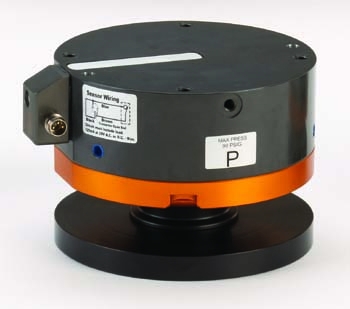

SR-101 Collision Sensor
SR-101 Collision Sensor
SpecificationsCablesDrawingsManuals3D CAD Models


Angular Displacement ±12°
Torsional Displacement ±25°
Axial Displacement 0.4 in
Max. Air Pressure Setting 90 psi
Weight 2.6 lb
Moment Break-Away ** 240 lbf-in - 1100 lbf-in
Torque Break-Away * 1100 lbf-in
Axial Break-Away * 610 lb
* At 90 psi
** In a pressure range of 20-90 psi

Performance Data

Performance data is not available for this model.

NOTE: Moment graphs based on point of switch opening at approximately 1 degree deflection.
