DeviceNet Pass-through Modules: TDEA


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 制御と信号のモジュール > TDEA





Product Advantages
  • 19 pin block.
  • ODVA 5-Pin M12 Signal and 4-Pin Minifast Power connectors (Redundant Signals).
  • DeviceNet 4 Amp/250V; Aux. Power 5 Amp/600V.
  • Electrical module to pass DeviceNet, bus, and auxiliary power connections.
  • Direct pass-through connections.
  • NOTE: TDEA module may extend past the Master/Tool body on some QCs. Please consult an ATI Account Manager for more information.
  • When used on the QC-110, slight possibility that the air supply fittings will hit the edge of the TDEA module. Please consult an ATI Account Manager for more information.

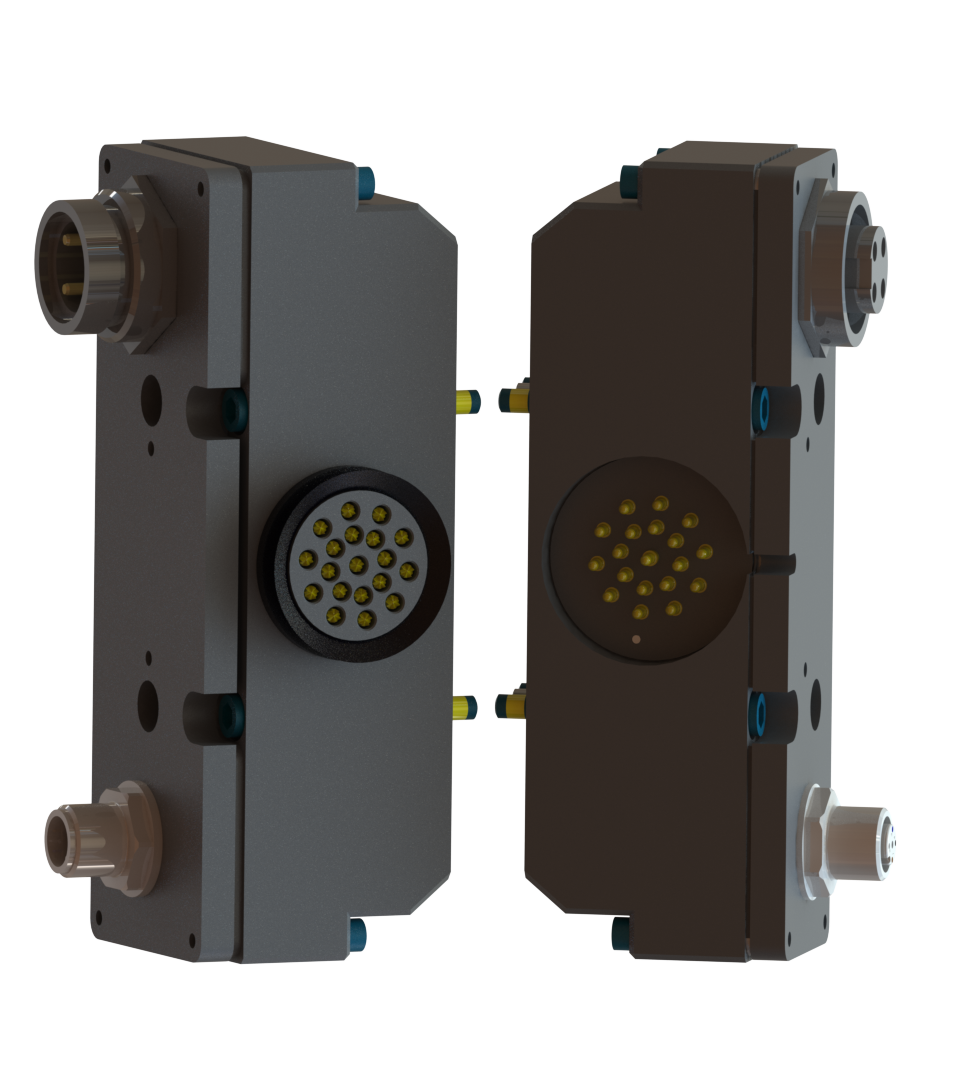

TDEA Modules (Master and Tool)
TDEA Modules (Master and Tool)

Part NumberSideNotesEDS File
9121-TDEA-MMDeviceNet Pass-Through Module with M12 Connectors Redundant Signals - Master side
9121-TDEA-TTDeviceNet Pass-Through Module with M12 Connectors Redundant Signals - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: DeviceNet Pass-Through Module with M12 Connectors Redundant Signals
Weight: Master 0.98 lbs (0.44 kg)
Tool 0.77 lbs (0.35 kg)
Materials:
  • Anodized aluminum housing
  • Rhodium-plated spring and contact pins
  • Nitrile seals.
# Pins: 19
Elec. Rating: DeviceNet - 4 Amp/250V
Aux Power - 5 Amp/600V
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
