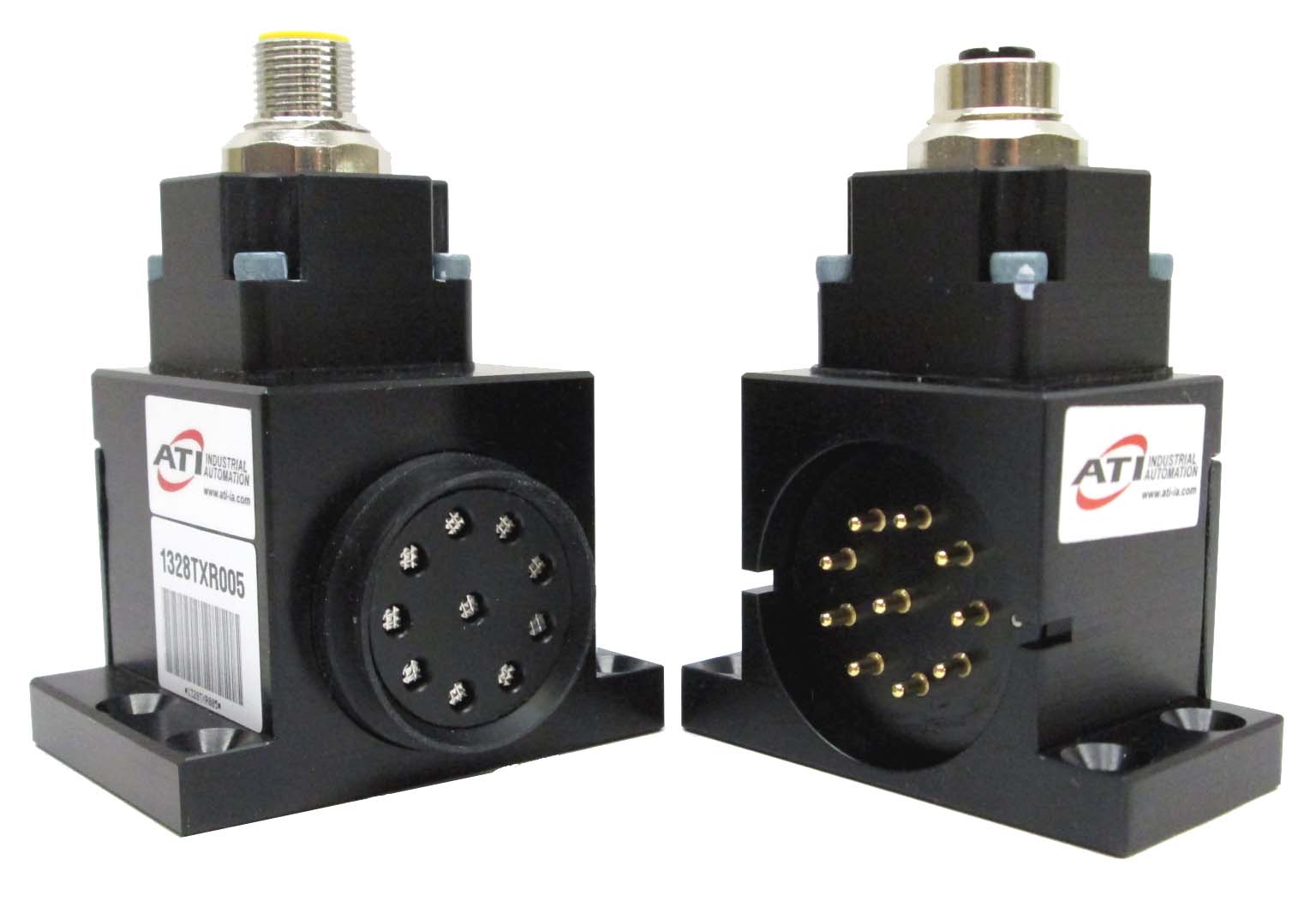

| 9120-RP5-M | M | Discrete PROFIBUS Pass-Through Module with B-coded M12 connector - Master side | |
| 9120-RP5-T | T | Discrete PROFIBUS Pass-Through Module with B-coded M12 connector - Tool side | |
|
|
Description: |
Discrete PROFIBUS Pass-Through Module with B-coded M12 Connector |
|
Weight: |
Master 0.44 lbs (0.20 kg)
Tool 0.33 lbs (0.15 kg) |
|
Materials: |
- Aluminum housing
- Precious metal-plated heads on spring pins
- Precious-metal-plated contact pins
- Nitrile seal.
|
|
Elec. Rating: |
4 Amp/250VAC max. |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-RP5.pdf |
RP5 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-RP5-T |
Discrete PROFIBUS Pass-Through Tool module with B-coded M12 connector
|
| 9120-RP5-M |
Discrete PROFIBUS Pass-Through Master module with B-coded M12 connector
|
|
|
