Primary Current Modules: PA5


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 高電流モジュール > PA5





Attention:  An upgraded version of this item is available.

Current Product Benefits Interchangeable
PA22 Smaller connectorized option. No



Product Description
  • Designed to carry high current from a power supply to customer tooling.
  • (3) rhodium-plated copper contacts, each capable of carrying 180 Amps when coupled.
  • Voltage should not exceed 600 Volts.
  • Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
  • Mating conical surfaces provide a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
  • Power to be disconnected and discharged prior to tool changes. Module is not a switch.
  • Contact tips easily replaced, if required.
  • Recessed and shrouded Master side contacts prevent accidental human contact.
  • Center pin extended for first mate/last break protection.
  • Multi-Contact TID150-S8/M8 (30.0019) connector.
  • Use with Standard 9121-PA2-T Tool Module
  • ATI does not stock connector mates. For use by customers already using Multi-Contact. Consult ATI.

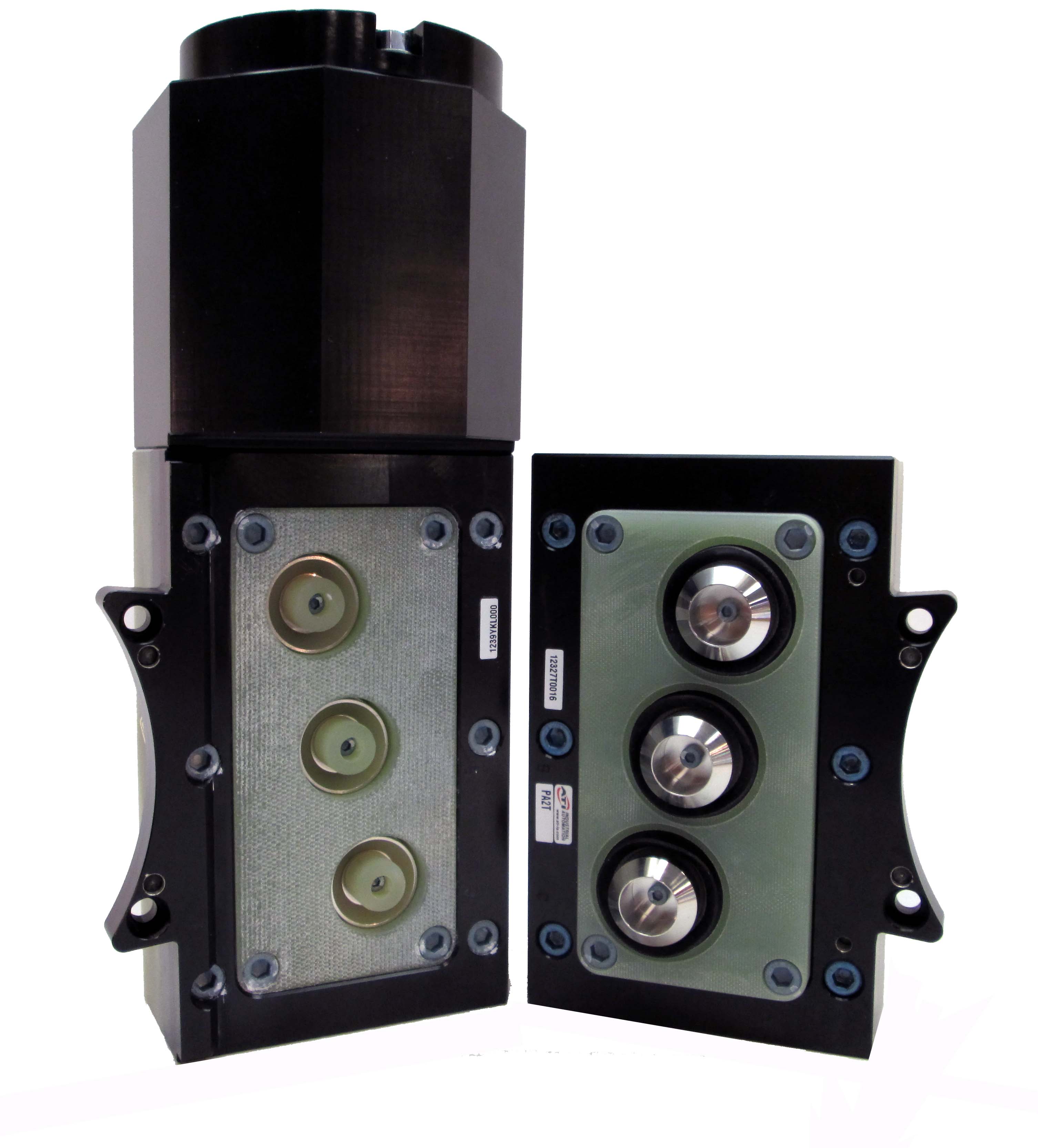

PA5 Master and PA2 Tool Modules
PA5 Master and PA2 Tool Modules

Part NumberSideNotes
9121-PA5-MM(3) Contacts, #2 wire, 180 Amp, 600V rating Primary Current Module - Master side, Multi-Contact TID150-S8/M8 (30.0019) Connector
9121-PA5Z1-MM(3) Contacts, #2 wire, 180 Amp Primary Current Module with Multi-Contact TID-150-S8/M8 (Right End Feed) - Master side
9121-PA2-TT(3) Contacts, #2 wire, 200 Amp, 600V rating Primary Current Module - Tool side
9121-PAA-TTPrimary Current Protective Bracket for Tool Side. Used when no PA2 on Tool side of QC.

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: (3) Contacts, #2 wire, 180 Amp, 600V Rating Primary Current Module (Master side) Mates to 9121-PA2-M
Weight: PA5 Master 5.94 lbs (2.69 kg)
Tool 2.9 lbs (1.3 kg)
PAA Tool 0.5 lbs (0.23 kg)
Materials:
  • Precious metal-plated contacts.
# Pins: 3
Elec. Rating: 180 Amp/600V @ 100% Duty Cycle
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
