Primary Current Modules: PA16


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 高電流モジュール > PA16





Product Description
  • Designed to carry high current from a power supply to customer tooling using #2AWG (or 35mm2) cable.
  • Three (3) rhodium-plated copper contacts, each capable of carrying 200 Amps when coupled.
  • Voltage should not exceed 600 Volts.
  • Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
  • Mating conical surfaces provide a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
  • Power to be disconnected and discharged prior to tool changes. Module is not a switch.
  • Contact tips easily replaced, if required.
  • Recessed and shrouded Master-side contacts prevent accidental human contact.
  • Center pin extended for first mate/last break protection.
  • 1 ¼ NPT, 1 ½ NPT, PG29, and PG36 fitting plates currently available.
  • Offset contact bases for use with thick jacket #2AWG cable.

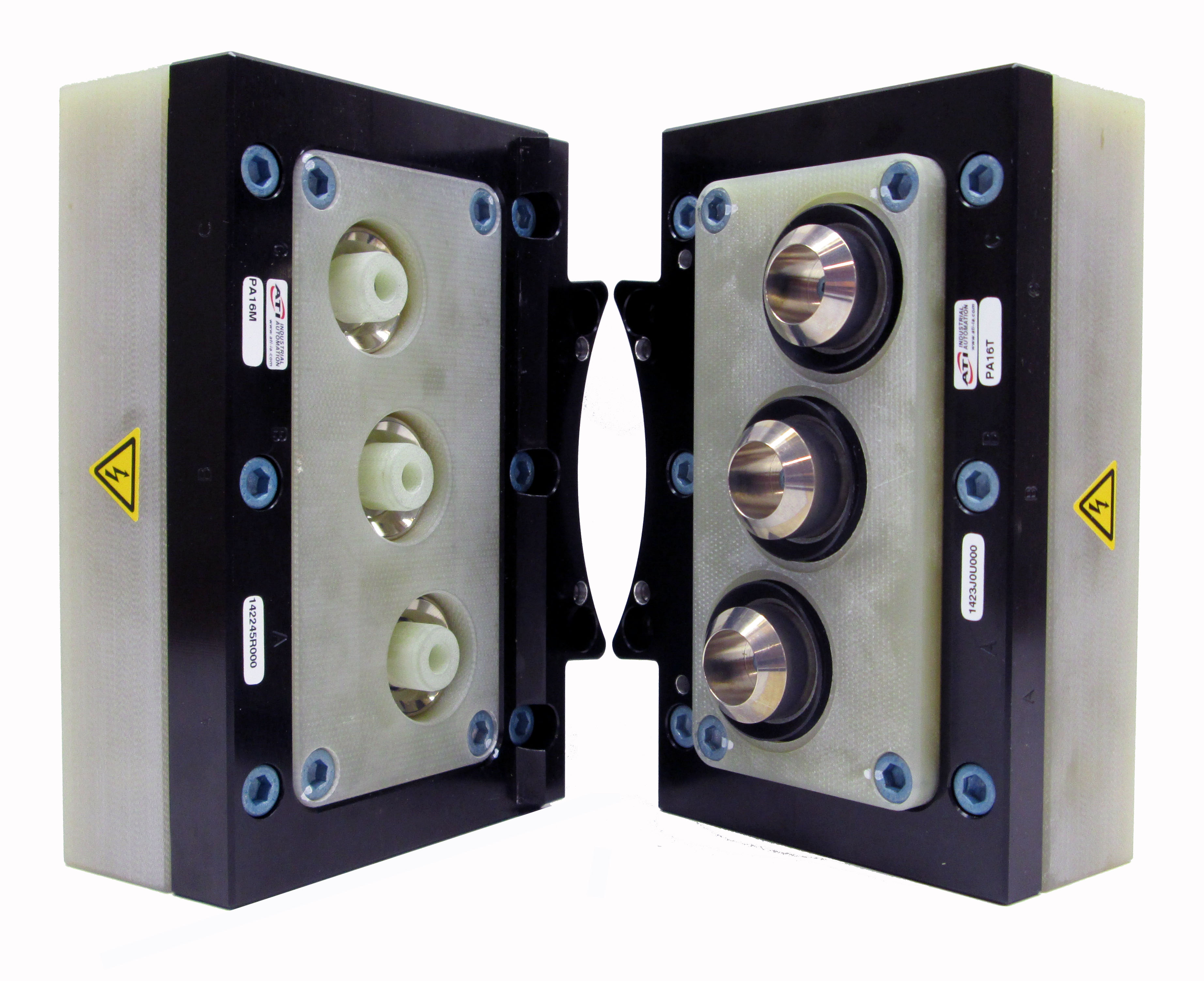

PA16 Modules (Master and Tool)
PA16 Modules (Master and Tool)

Part NumberSideNotes
9121-PA16-MM(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module - Master side
9121-PA16-TT(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD ModelsFitting Plates

Description: (3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module
Weight: Master 2.91 lbs (1.32 kg)
Tool 2.80 lbs (1.27 kg)
PAA Tool 0.5 lbs (0.23 kg)
Materials:
  • Precious metal-plated contacts.
# Pins: 3
Elec. Rating: 200 Amp/600V @ 100% Duty Cycle
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
